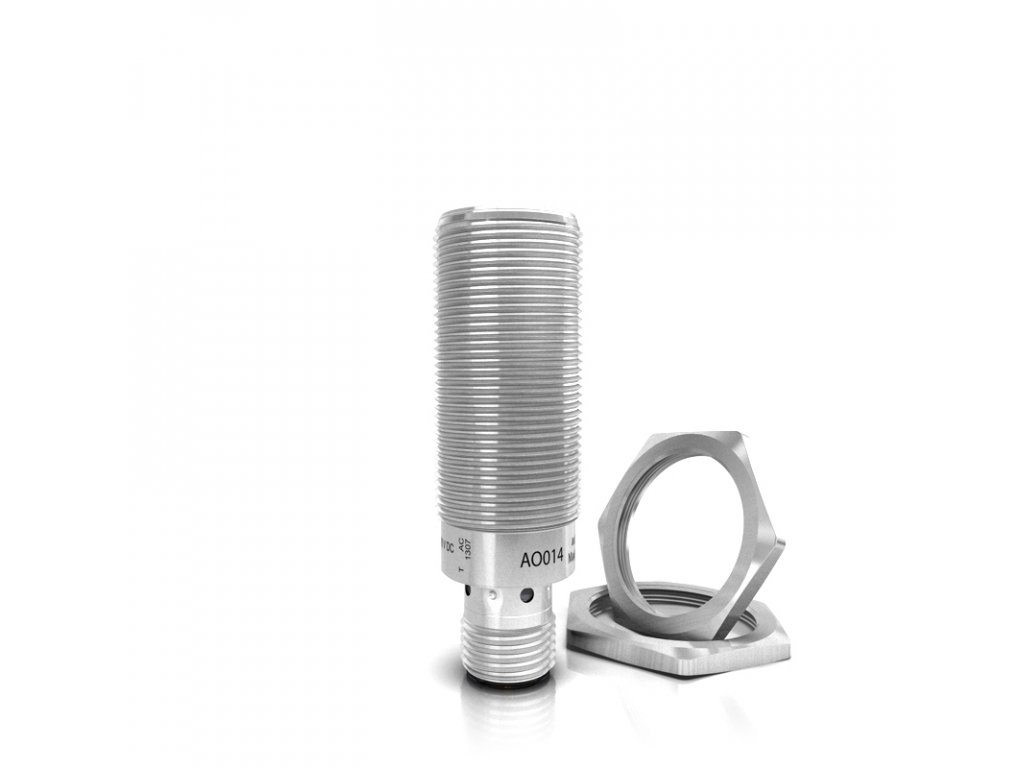

    Optical sensor with metal thread M18x1 AO014

    Code: AO014
    Brand: Autosen
    AO014 Optický snímač s kovovým závitem M18x1
    92 € / pcs 111 € incl. VAT 92 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    04/04/2025
    • Reflective sensor with polarizing filter
    • Visible red light for easy adjustment
    • Dark switching (normally open)

    Reflective light barrier with polarizing filter, M18x1-metal thread, dark switching. The AO014 optical sensor is a retroreflective sensor that is used in combination with a reflector (AA950 / AA951 mirror). The decisive advantage of a photoelectric sensor with a polarizing filter in combination with a triple mirror is that the probability of incorrect switching caused by highly reflective objects (e.g. Safety vests, etc.) is minimized. The light is focused on a triple mirror and is cast at 90°. The polarizing filter only allows this self-emitting light beam through sensor switching. Even highly reflective metal objects can be detected as an object because their reflected radiation is stopped by a polarizing filter.

    Other technical characteristics and corresponding accessories (sensor line AA005, AA006, AA007, AA008, AA903 and fixing corner cube AA950 / AA951.





    Detailed information

    Related products

    AA903 et main 800
    Assembly console M18 AA903
    Skladem na externím skladu
    13 € incl. VAT
    11 €

    For safe and optimal installation of M18 sensors.

    Code: AA903
    AA950 et main 800
    Circular mirror 80 mm AA950
    Skladem na externím skladu
    14 € incl. VAT
    12 €

    The AA950 circular mirror is designed for red light and infrared reflex light barriers with polarizing filter

    Code: AA950
    AA951 et main 800
    Square mirror 48 x 48 mm AA951
    Skladem na externím skladu
    18 € incl. VAT
    15 €

    The light reflected from the light barrier is sent to the triple mirror AA951. The polarizing filter allows only the intended light beam to be transmitted from the sensor. The...

    Code: AA951
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA946 et main 800 konektor L
    Connector M12 AA946
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA946
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    22 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    22 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    217 € incl. VAT
    179 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    320 € incl. VAT
    264 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    262 € incl. VAT
    217 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AO006 optický senzor
    Optical sensor with PA cover AO006
    Skladem na externím skladu
    154 € incl. VAT
    128 €

    Reflective sensor with polarizing filter Visible red light for easy adjustment dark ON The optical sensor AO006 is one of the retroreflective sensors that are used in...

    Code: AO006
    AO019 optický senzor s krytem PA
    Mini optical sensor with PA cover AO019
    Skladem na externím skladu
    175 € incl. VAT
    145 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 The AO019 reflected light scanner reliably locates...

    Code: AO019
    AO015 optické snímače
    Optical sensor with metal thread M18x1 AO015
    Skladem na externím skladu
    80 € incl. VAT
    66 €

      Pass-through sensor - transmitter Visible red light for easy adjustment Degree of protection IP67 Pass-through sensor with metal thread M18x1 - transmitter with a range of...

    Code: AO015
    AO010 Optický snímač
    Optical sensor with metal thread M12x1 AO010
    Skladem na externím skladu
    138 € incl. VAT
    114 €

    Reflective sensor with polarizing filter Visible red light for easy adjustment Switchable light and dark switching reflective sensors with polarizing filter, M12x1 metal thread...

    Code: AO010
    AL001 et main 800 Laserový senzor
    Laser sensor AL001 Ultra Performance
    Skladem na externím skladu
    462 € incl. VAT
    382 €

    The AL001 automatic laser distance sensor helps with particularly challenging position or level detection tasks with the best performance Wherever red light sensors cannot be...

    Code: AL001
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO014

    General information

    .03 ... 4 m
    Related to triple mirror Ø 80
    1000 Hz
    Reflective light barrier
    red light

    Outputs / inputs

    dark
    .

    Electrical data

    Yes
    10 ... 36 V DC power class 2 cULus
    Yes
    Yes
    DC
    PNP
    200 mA
    2.5 V
    II
    . 15 mA

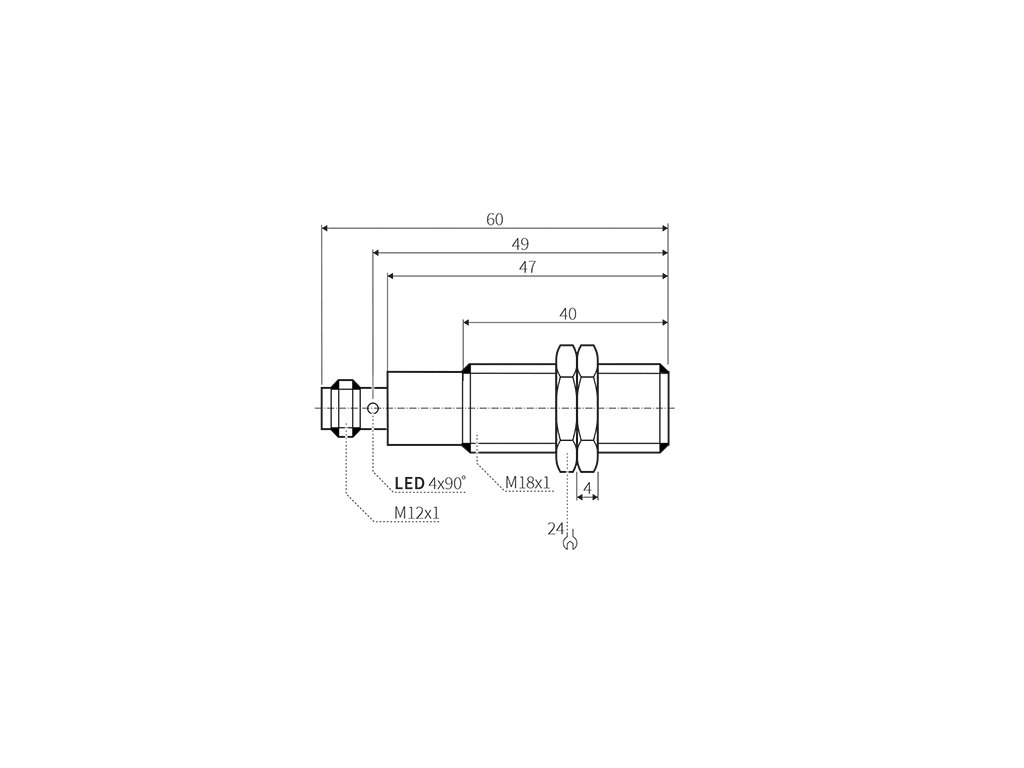

    Mechanical data

    PMMA
    with thread
    (1.4404)

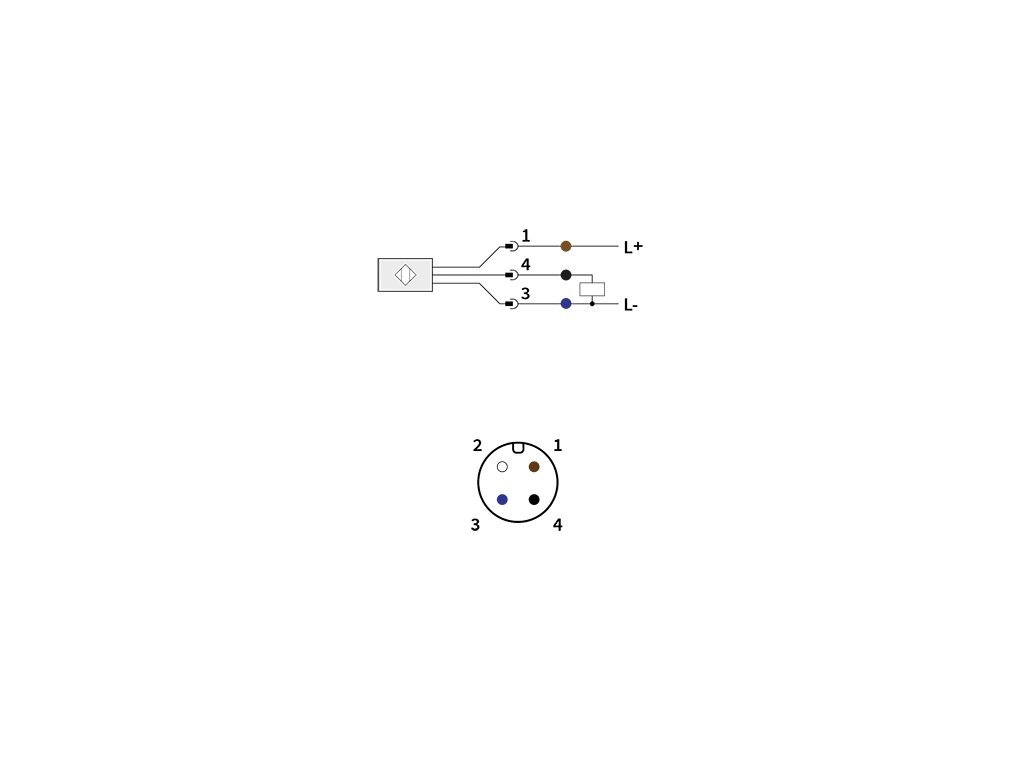

    gold-plated M12 contacts with 3 pins


    60 mm

    environmental conditions

    . -25°C
    60°C
    IP67

    Further information

    display Switching status: LED, yellow
    fixing nuts
    DIN EN 60947-5-2
    CE
    cULus

    curve - Functional
    reserve factor x - Distance [mm]

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
