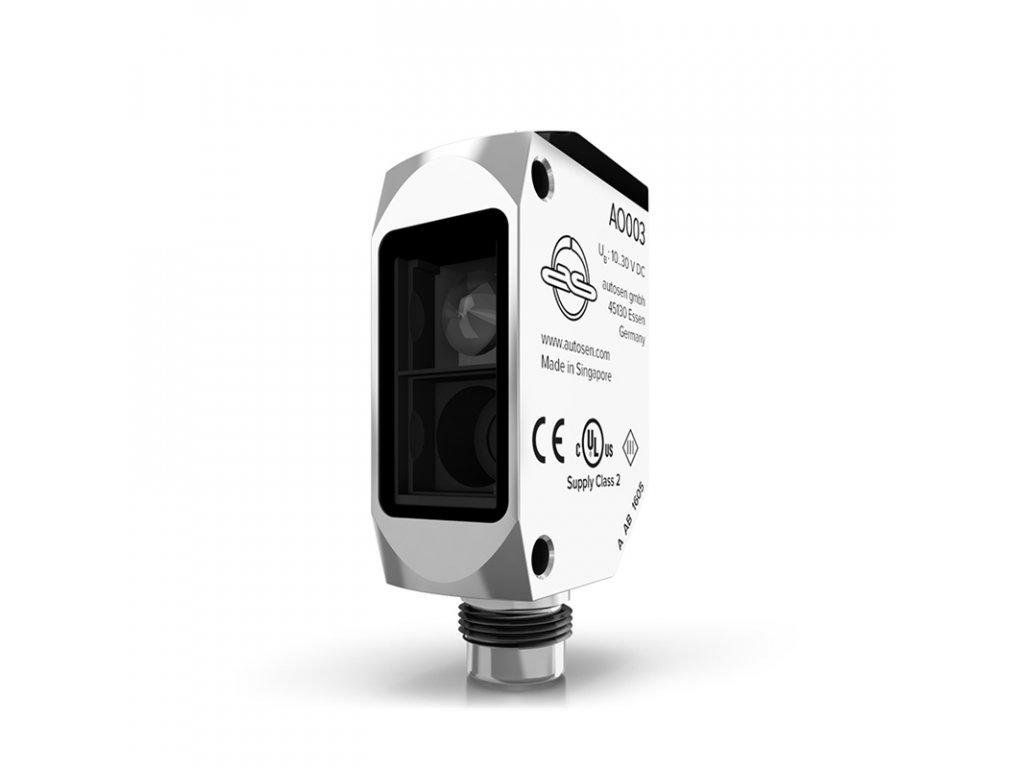

    Optical sensor stainless steel IP69K AO003

    Code: AO003
    Brand: Autosen
    AO003 optický senzor
    60 € / pcs 72 € incl. VAT 60 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    21/04/2025
    • Pass-through sensor - transmitter
    • Can be used in hygienic and wet areas
    • High quality compact stainless steel cabinet

    Best optical performance in standard applications - even in humid environments and in the food industry. The one-way light curtain system is characterized by a very high range because it consists of two separate parts: a transmitter and a receiver. In the case of an optical transmitter, the range is 10 m. The rugged stainless steel transmitter housing has tested protection types IP65, IP67, IP68 and IP69K and can therefore be used in standard applications as well as in the food industry as well as in wet environments. A visible red light allows easy adjustment of the system's light barriers. The light beam moves in only one direction, thus promoting high resistance to dust, water vapor or lens contamination.

    The AO003 optical transmitter can be used with the AO004 optical receiver

    The AO003 is also available as the AO027 in a plastic version with a lower IP67 rating

    Other technical characteristics and corresponding accessories (cable sensors AA009, AA010, AA011, AA012 for standard applications, sensor cables AA013, AA014, AA015, AA016 for wet and food applications, gripper AA907 and AO004 receiver).

    Detailed information

    Related products

    AA907 et main 800
    Mounting bracket AA907
    Skladem na externím skladu
    21 € incl. VAT
    17 €

    For safe and optimal sensor installation.

    Code: AA907
    AA011 et main 800 konektor pro snímač
    Sensor cable 2 m PUR M8 4 pole IP 69 AA011
    Skladem na externím skladu
    23 € incl. VAT
    19 €

    Resistant to oils and coolant lubricants Degree of protection IP65 | IP67 | IP68 | IP 69K AC/DC

    Code: AA011
    AA009 et main 800 Kabel pro snímač
    Sensor cable 2 m PUR M 8 4 pole IP 69 AA009
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Resistant to oils and coolant lubricants Degree of protection IP65 | IP67 | IP68 | IP 69K AC/DC

    Code: AA009
    AA013 et main 800 kabel do potravinářský průmysl
    Sensor cable 2 m PVC M8 4 polar IP69 AA013
    Skladem na externím skladu
    24 € incl. VAT
    20 €

    Can be used in hygienic and humid areas Vibration and shock resistant AC/DC

    Code: AA013
    AA015 et main 800 kabel snímače
    Sensor cable 2 m PVC M8 4 pole IP 69 AA015
    Skladem na externím skladu
    24 € incl. VAT
    20 €

    Can be used in hygienic and humid areas Degree of protection IP65 | IP67 | IP68 | IP 69K AC/DC

    Code: AA015
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    216 € incl. VAT
    178 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    318 € incl. VAT
    263 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    261 € incl. VAT
    216 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AD002 IO link et main 800
    Software AD002
    Skladem na externím skladu
    180 € incl. VAT
    149 €

    Parameterisation and visualisation Device replacement in seconds Reduced commissioning time IO - Industry 4.0 is now easy. IO-Link offers many advantages. The Digital Industrie...

    Code: AD002
    AD001 IO link et main 800
    IO-Link Master AD001
    Skladem na externím skladu
    500 € incl. VAT
    413 €

    4 ports M12 connector connection LED display IO-Link offers many advantages. The communication between the IO-Link sensor and the PLC is controlled by the IO-Link master. The...

    Code: AD001
    AO016 Optický senzor
    Optical sensor with metal thread M18x1 AO016
    Skladem na externím skladu
    91 € incl. VAT
    75 €

    Light sensor - receiver Dark switching (normally open) Degree of protection IP67 Self-contained pass-through sensor with M18x1 metal thread - receiver with a range of 20 m. The...

    Code: AO016
    AO026 optický senzor
    Optical sensor with PA cover AO026
    Skladem na externím skladu
    62 € incl. VAT
    51 €

    Switchable light and dark switching Degree of protection IP 65 | IP67 In combination with the AO027 transmitter The AO026 light sensor features a particularly compact...

    Code: AO026
    AO011 optický přijímač
    Optical sensor with metal thread M12x1 AO011
    Skladem na externím skladu
    93 € incl. VAT
    76 €

    Pass-through sensor - transmitter Protection class IP65 DC, 10 ... 36 V Pass-through sensor with metal thread M12x1 - Transmitter with a range of 4 m. The remote beam sensor...

    Code: AO011
    AO024 světelný snímač
    Optical sensor with PA cover AO024
    Skladem na externím skladu
    109 € incl. VAT
    90 €

    Degree of protection IP 65 | IP67 Diffuse reflection sensor with background suppression High quality plastic housing The AO024 reflective sensor features a particularly compact...

    Code: AO024
    AO009 Optický senzor s kovovým závitem
    Optical sensor with metal thread M12x1 AO009
    Skladem na externím skladu
    136 € incl. VAT
    112 €

    Diffuse reflection sensor with output control function Switchable light and dark switching Highly focused beam of infrared light Diffuse reflection sensor with output control...

    Code: AO009
    AO020 Mini optický senzor s krytem
    Mini optical sensor with PA cover AO020
    Skladem na externím skladu
    174 € incl. VAT
    144 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 With the AO020 reflective light scanner, the...

    Code: AO020
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO003

    General information

    10 m
    transmitter
    red light

    Outputs / inputs

    .

    Electrical data

    Yes
    10 ... 30 V DC power class 2 cULus
    Yes
    Yes
    DC
    PNP
    III
    20 mA

    Mechanical data

    PMMA
    (1.4404) PPSU

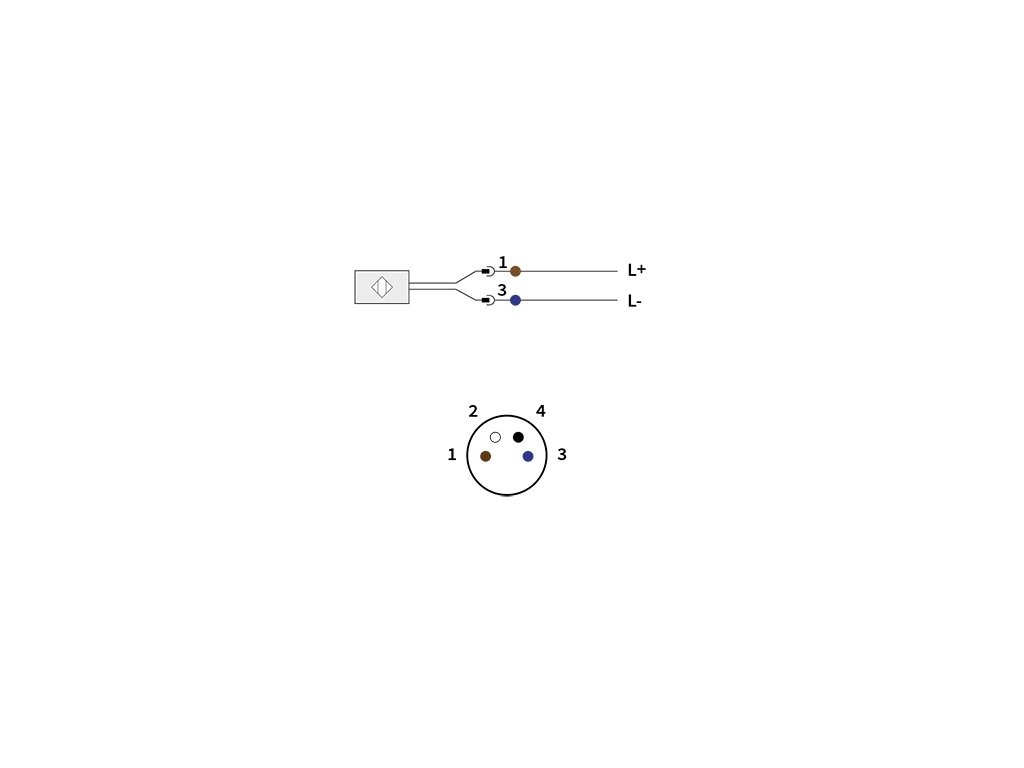

    gold-plated M8 contacts with 4-pin contacts

    accuracy

    diameter 300 mm (maximum range) mm

    environmental conditions

    . -25°C
    80°C
    Degree of IP65/IP67/IP68/IP69k

    Further information

    display : LED, green
    No accessories
    DIN EN 60947-5-2
    CE
    cULus

    curve - Functional
    reserve factor x - Distance [mm]

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
