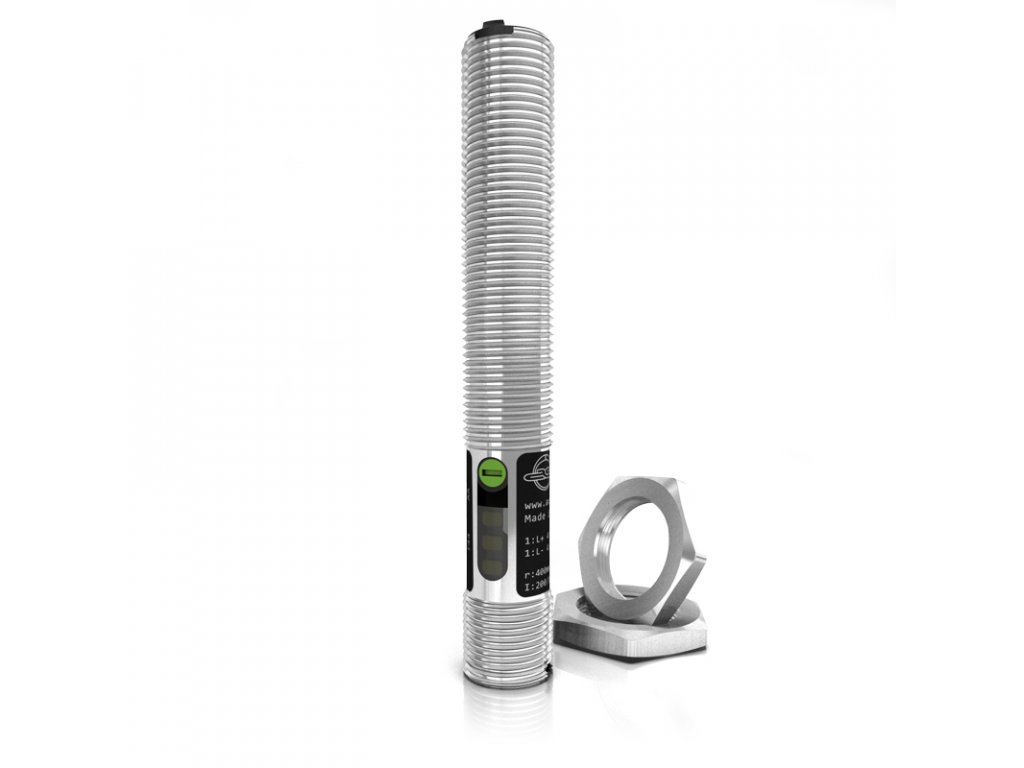

    Optical sensor with metal thread M12x1 AO009

    Code: AO009
    Brand: Autosen
    AO009 Optický senzor s kovovým závitem
    113 € / pcs 136 € incl. VAT 113 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    04/04/2025
    • Diffuse reflection sensor with output control function
    • Switchable light and dark switching
    • Highly focused beam of infrared light

    Diffuse reflection sensor with output control function and infrared light. Reflective light sensor with M12 metal thread. The optical transceiver system is integrated into the housing and requires no additional assistance for object recognition. The infrared light is reflected by the object to be detected and evaluated by the integrated receiver of the sensor

    Further technical parameters and suitable accessories (sensor cable AA005, AA006, AA007, AA008, attachment AA902)

    Detailed information

    Related products

    AA902 et main 800
    Mounting bracket M12 AA902
    Skladem na externím skladu
    12 € incl. VAT
    10 €

    For safe and optimal installation of M12 sensors.

    Code: AA902
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    18 € incl. VAT
    15 €

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    22 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    22 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    217 € incl. VAT
    179 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    320 € incl. VAT
    264 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    262 € incl. VAT
    217 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    AO017 Mini optický snímač s krytem PA
    Mini optical sensor with PA cover AO017
    Skladem na externím skladu
    175 € incl. VAT
    145 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 Light-switching diffuse reflection sensor with...

    Code: AO017
    AO021 Mini optický senzor s krytem PA
    Mini optical sensor with PA cover AO021
    Skladem na externím skladu
    152 € incl. VAT
    125 €

    Visible red light for easy adjustment Reflective sensor with polarizing filter Degree of protection IP 65 | IP67 The AO021 dark switchable auto glass reflective sensor with...

    Code: AO021
    AO022 Mini optický senzor s krytem PA
    Mini optical sensor with PA cover AO022
    Skladem na externím skladu
    107 € incl. VAT
    88 €

    Pass-through sensor - transmitter In combination with the AO023 receiver Compact design for use in harsh installation conditions   AO022 is a transmitter for optical remote...

    Code: AO022
    AO029 Optický snímač
    Optical sensor with PA cover AO029
    Skladem na externím skladu
    67 € incl. VAT
    56 €

    Reflective sensor with polarizing filter dark ON Visible red light for easy adjustment The AO029 reflective sensor with high quality plastic housing combines reliability and...

    Code: AO029
    AO010 Optický snímač
    Optical sensor with metal thread M12x1 AO010
    Skladem na externím skladu
    138 € incl. VAT
    114 €

    Reflective sensor with polarizing filter Visible red light for easy adjustment Switchable light and dark switching reflective sensors with polarizing filter, M12x1 metal thread...

    Code: AO010
    AO015 optické snímače
    Optical sensor with metal thread M18x1 AO015
    Skladem na externím skladu
    80 € incl. VAT
    66 €

      Pass-through sensor - transmitter Visible red light for easy adjustment Degree of protection IP67 Pass-through sensor with metal thread M18x1 - transmitter with a range of...

    Code: AO015
    AO018 mini optický senzor s krytem
    Mini optical sensor with PA cover AO018
    Skladem na externím skladu
    175 € incl. VAT
    145 €

    Visible red light for easy adjustment Diffuse reflection sensor with background suppression Degree of protection IP 65 | IP67 The AO018 reflected light scanner is used for...

    Code: AO018
    Show all related products Previous product Next product

    Product detailed description

    Technical data AO009

    General information

    ... 400 mm
    320 Hz
    Diffuse reflection
    Infrared light

    Outputs / inputs

    light/dark programmable
    .

    Electrical data

    Yes
    10 ... 36 V DC
    Yes
    Yes
    DC
    PNP
    200 mA
    2.5 V
    II
    35 mA

    Mechanical data

    with thread
    Brass white-bronze coated
    gold-plated M12 contacts with 4 pins
    contact

    85 mm

    accuracy

    diameter 185 mm at max. Range mm

    environmental conditions

    . -25°C
    60°C
    IP65

    Further information

    display Switching status: LED, yellow
    fixing nuts
    DIN EN 60947-5-2
    CE
    cULus

    : Potentiometer for sensitivity adjustment
    Curve - Functional
    reserve factor x - Distance [mm]

    Additional parameters

    Category: Laserové snímače
    Warranty: 5 let
    Weight: 0.1 kg
