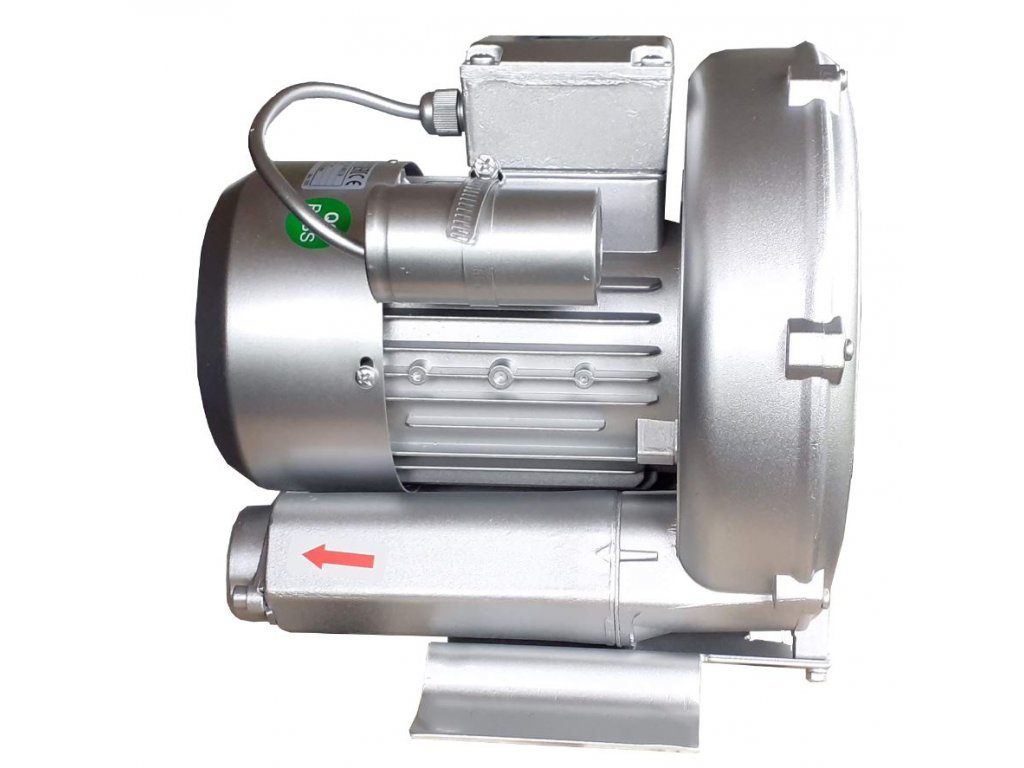

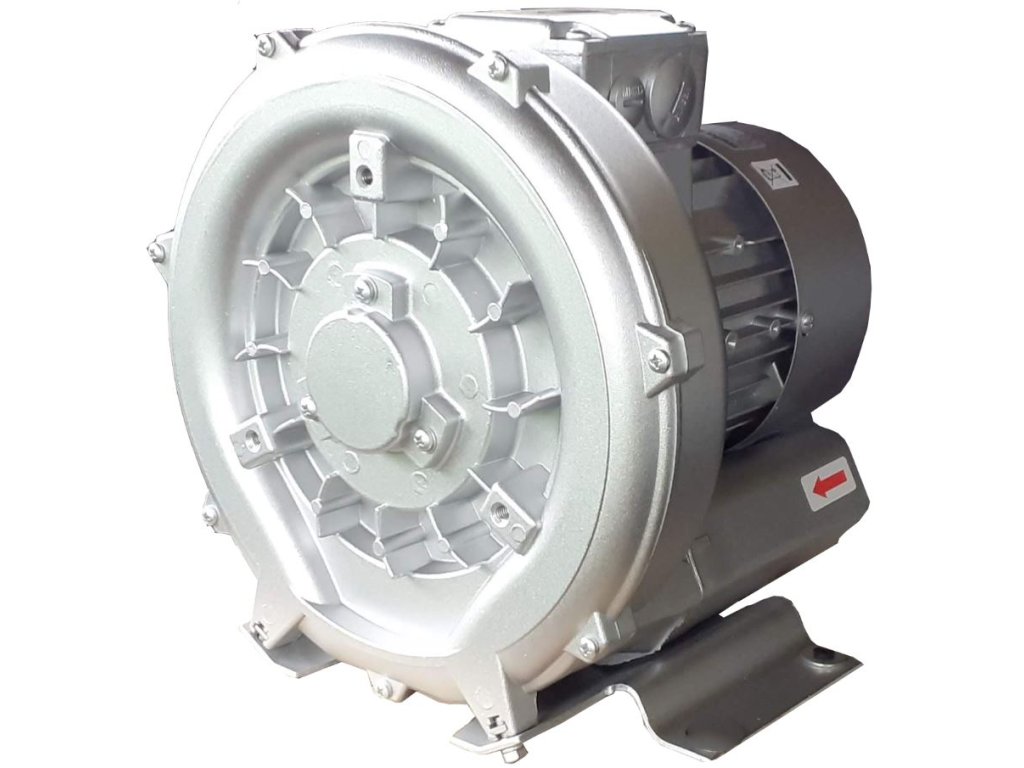

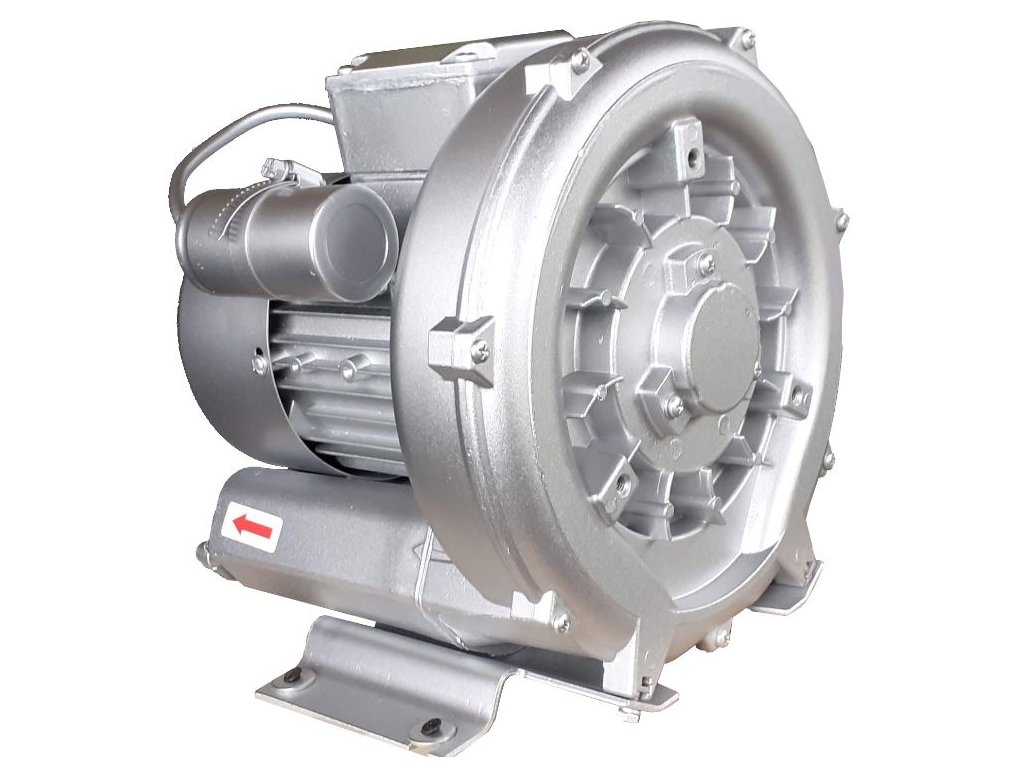

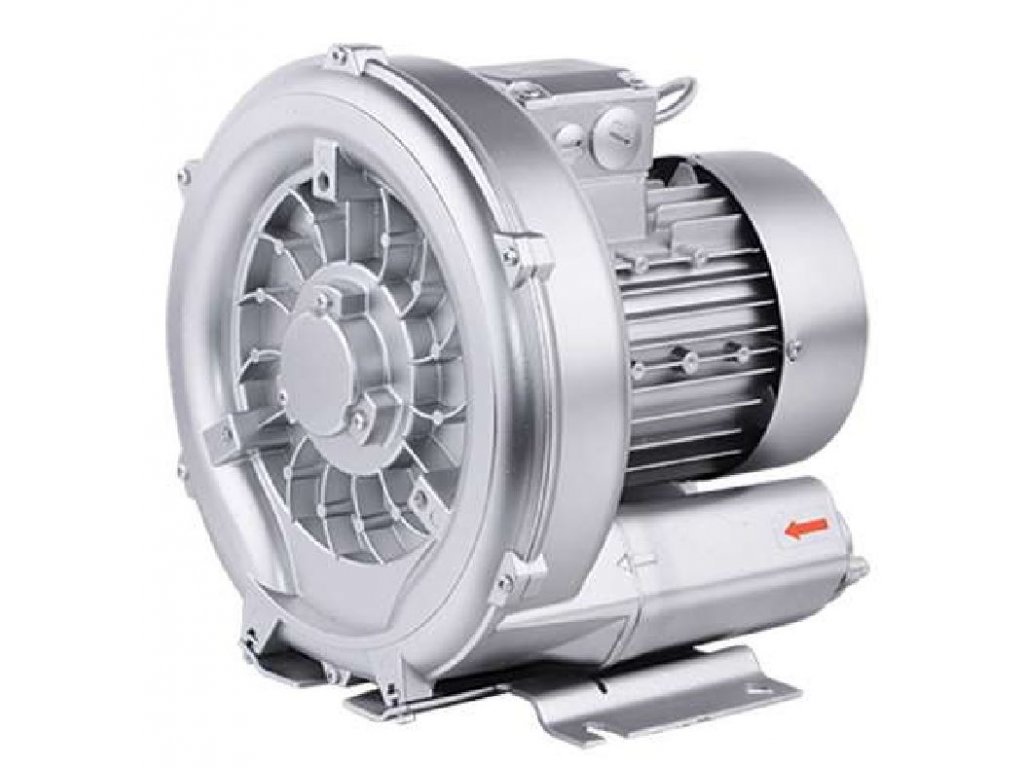

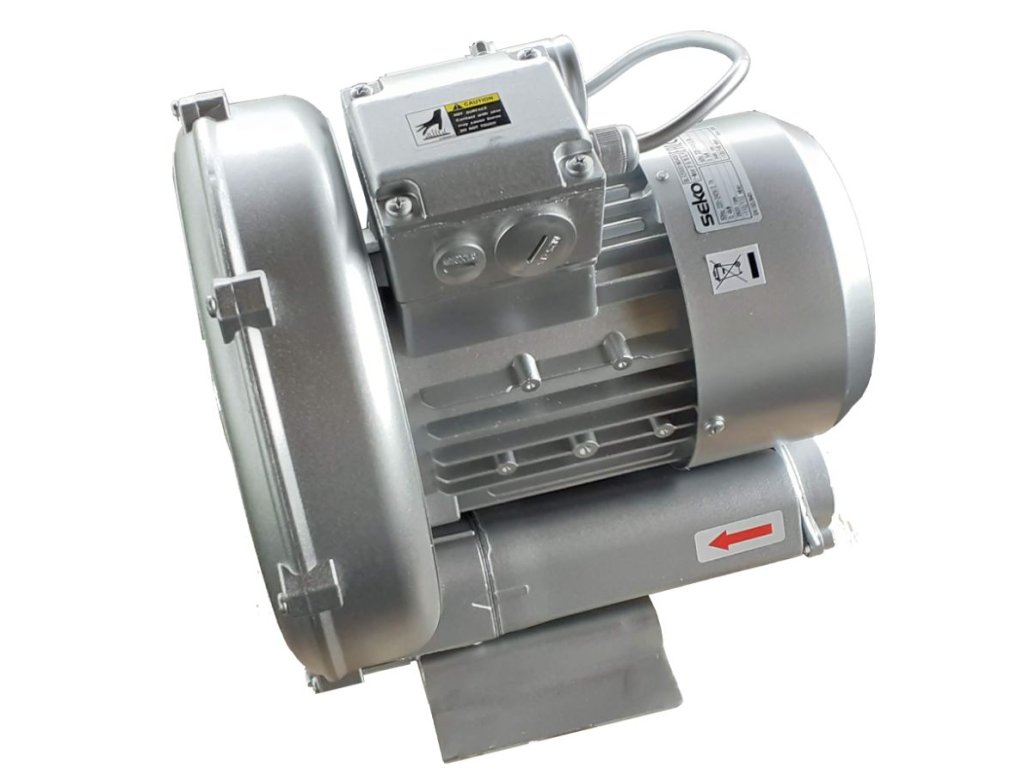

Vacuum pump - air conditioner SEKO BL 020 max. 80 m3/hod, max. 130 mbar, -120 mbar 1 channel, 400V 3-fáze
Code: BL02000100400Related products
Filter for Blower 3", pos. 5 These filters are commonly installed on the suction side of side channel blowers and compressors to protect them from dust and solids that could...
On-line silencer, connection 3/4" male thread, positioning for both vacuum and discharge, pos. 7
Filter on the suction line of the vacuum pump to create vacuum, paper filter 5÷7, position 4. These filters are normally installed in the pump intake to protect it from dust and...

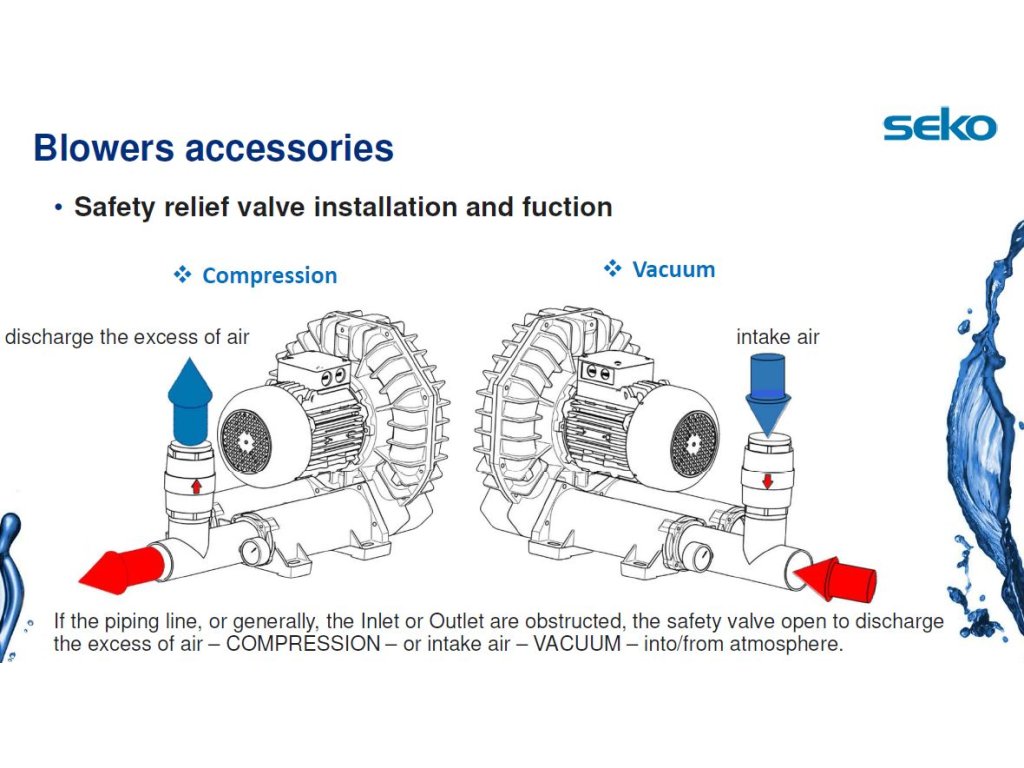

Safety relief valve, position 2. The safety valve protects against the risk of overpressure at the blower and underpressure at the vacuum pump. Reduces the operating pressure to...
Fine tube diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of...
On-line silencer, connection external thread 2", position for both vacuum and discharge, pos. 7
Fine membrane diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of...
Filter for Blower 4", pos. 5 These filters are commonly installed on the suction side of side channel blowers and compressors to protect them from dust and solids that could...
Fine membrane diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of...
Plastic elbow 2"1/2 female thread, PVC 150 mm - pos.6
The valve functions as a double vacuum/vacuum breaker with a central common threaded connection, pneumatically actuated by a double acting cylinder; thus it has 2 flat ports, 3...
Safety relief valve, position 2. The safety valve protects against the risk of overpressure at the blower and underpressure at the vacuum pump. Reduces the operating pressure to...
Set of rubber feet for horizontal mounting of the blower. Set contains 4 pieces.
Fine tube diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of...
Filter on the suction line of the vacuum pump to create vacuum, paper filter 5÷7, position 4. These filters are normally installed in the pump intake to protect it from dust and...
Filter for Blower 2" 1/2, pos. 5 These filters are commonly installed on the suction side of side channel blowers and compressors to protect them from dust and solids that could...
Product detailed description
Blowers find use: industrial air cleaning, plastic bottle blowing, screen printing, solids transport (pellets), pneumatic handling, inflatable dam, central vacuum cleaners, cleaning, industrial laundries, vegetable and food cleaning in water bath, food freezing, food transport (flour, corn), pipeline mail, electroplating and plating, waste management, sludge aeration, water aeration - car wash, fish farms and fish farms, grinding machines, soil remediation, biogas plant.

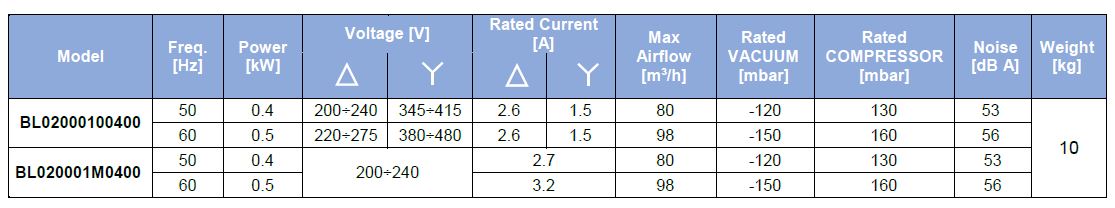

Additional parameters
Category: | Single stage pump and blower |
---|---|
Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
Weight: | 10 kg |
Materiál: | Slitina hliníku |
Kanál: | 1 |

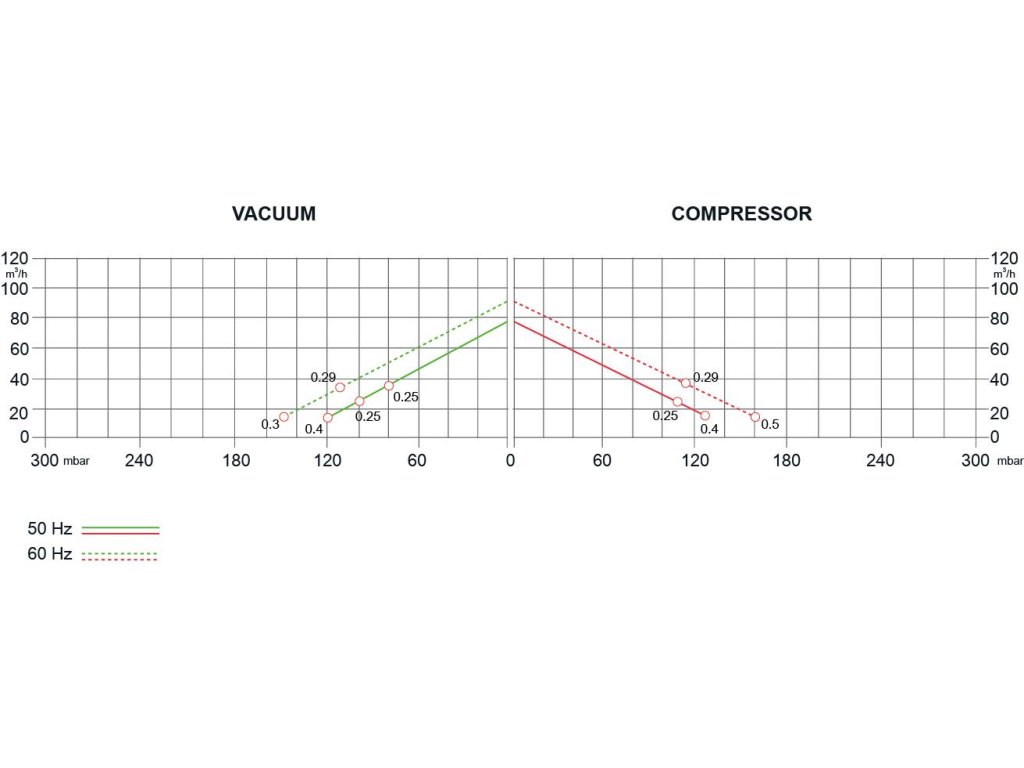

? Max. množství: | 80 m3/hod |
? Max. tlak: | 130 mbar |
Max. vakuum: | -120 mbar |
Připojení: | 1 1/4" |
El. motor: | 0,4 kW, 3-f 400V, 2900 ot/min 50 Hz |
Hlučnost: | 56 dB (A) |
ATEX certifikát: | NE |
