    Home / Produkty / Vývěvy a vzduchovače / Vývěva - Vzduchovač Napájení 1-f 230 / Vývěva-Vzduchovač ESC401M1.3-IE3, max. 145 m3/hod, max. 200 mbar, -170 mbar 1 kanál, 1-fáze 230V

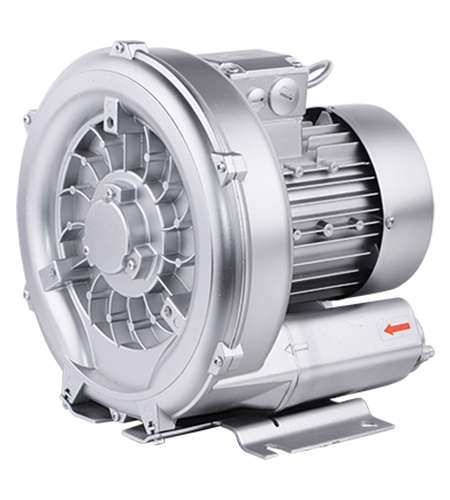

    Vývěva-Vzduchovač ESC401M1.3-IE3, max. 145 m3/hod, max. 200 mbar, -170 mbar 1 kanál, 1-fáze 230V

    Code: ESC401M1.3-IE3
    Brand: SEKO Spa
    Vývěva SEKO Create Flow
    889 € / pcs 1 076 € incl. VAT 889 € / 1 pcs
    Dodací termín 2 až 3 pracovní týdny
    Delivery to:
    28/01/2025
    You will get for free
    Glycerin manometer. Bottom connection external thread 3/8" m, diameter 100 mm. Pressure measurement range to 10 bar.
    + Glycerin manometer. Bottom connection external thread 3/8" m, diameter 100 mm. Pressure measurement range to 10 bar. worth 39 €
    Vacuum glycerin manometer. Bottom connection external thread 3/8" m, diameter 100 mm. Pressure measurement range -1 to 1 bar.
    + Vacuum glycerin manometer. Bottom connection external thread 3/8" m, diameter 100 mm. Pressure measurement range -1 to 1 bar. worth 39 €

    Single stage pump - Air blower with lateral inlet provide low pulsation air compression. A rotating impeller converts the intake air into pressure. The blower impeller is mounted directly on the motor shaft. The pumped air is sucked in, compressed in a side channel. The blower can be used to create both pressure and vacuum. The rated power of the motor determines the maximum differential pressure of the fan. Silencers mounted on the inlet and discharge routes ensure quiet and reliable operation at maximum output.

    Detailed information

    Product detailed description

    Pumps and blowers find use: industrial air cleaning, plastic bottle blowing, screen printing, solids transport (pellets), pneumatic handling, inflatable dam, central vacuum cleaners, cleaning, industrial laundry, vegetable and food cleaning in water bath, food freezing, food transport (flour, corn), pipeline mail, electroplating and plating, waste management, sludge aeration, water aeration - car wash, fish farms and fish farms, grinding machines, soil remediation, biogas plant.

    Podtlakové dmychadlo SEKO pro centrální vysavače Create Flow

    Dmychadlo SEKO pro mytí zeleniny BL040001 Create Flow

    Dmychadlo SEKO pro dopravu sypkých hmot Create Flow

    Dmychadlo vývěva Create Flow

    Additional parameters

    Category: Vývěva - Vzduchovač Napájení 1-f 230
    Warranty: 2 roky vyjma dílů podléhající vysokému stupni opotřebení
    Weight: 24 kg
    Materiál: Slitina hliníku
    Kanál: 1
    ? Max. množství: 145 m3/hod
    ? Max. tlak: 200 mbar
    Max. vakuum: -170 mbar
    Připojení: 1 1/2"
    El. motor: 1,3 kW, 1-f 230V, 2900 ot/min 50 Hz 7,3 A
    Hlučnost: 63 dB (A)
    ATEX certifikát: NE
