    Home / Produkty / Sudová čerpadla JESSBERGER / Barrel pump JP-280 PVDF 1000 mm

    Barrel pump JP-280 PVDF 1000 mm

    Code: 1281 4112
    Brand: Jessberger
    JP 280 PVDF
    1 683 € / pcs 2 036 € incl. VAT 1 683 € / 1 pcs
    Dodací termín 3 až 4 pracovní týdny
    Delivery to:
    24/04/2025

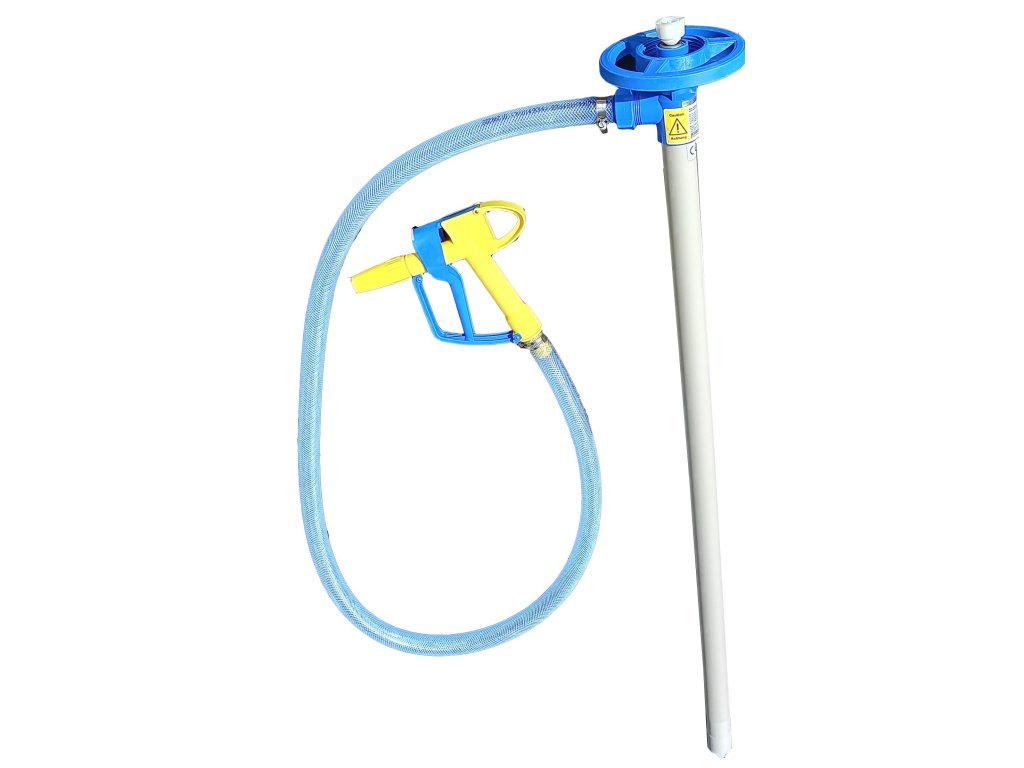

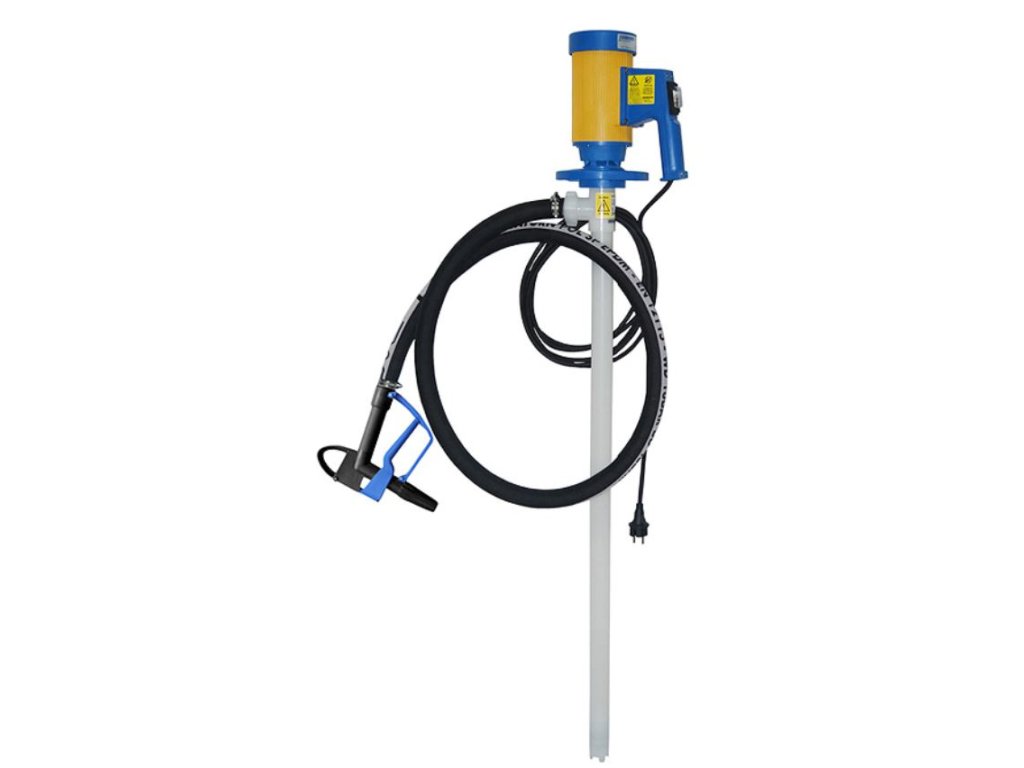

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun.

    The pump is suitable for pumping acids and alkalis.

    The pump is not designed for pumping flammable liquids and cannot be used for pumping in an explosion hazard zone.

    Max. output is 112 l/min (water) and max. pressure is up to 3.7 bar with impeller.

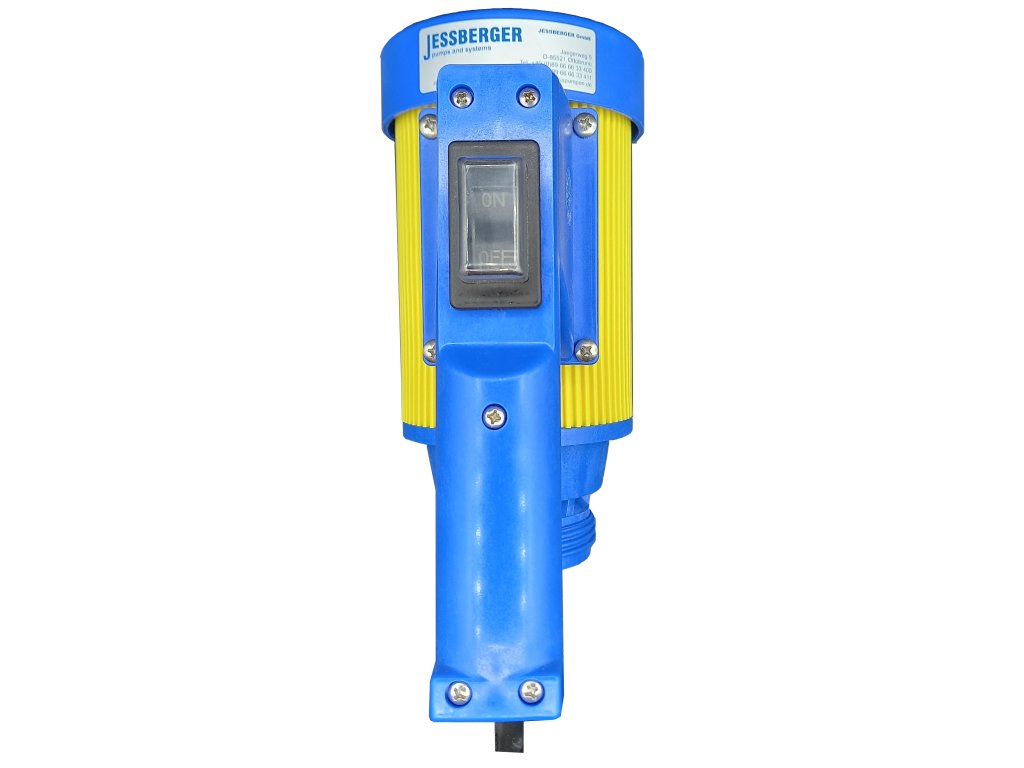

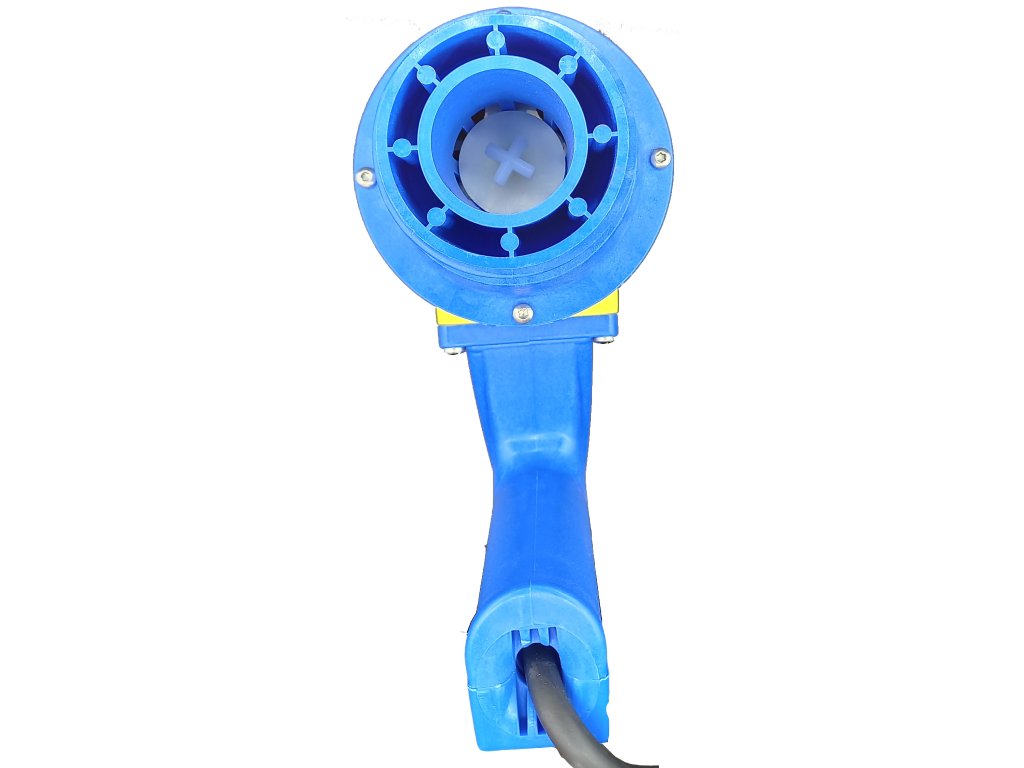

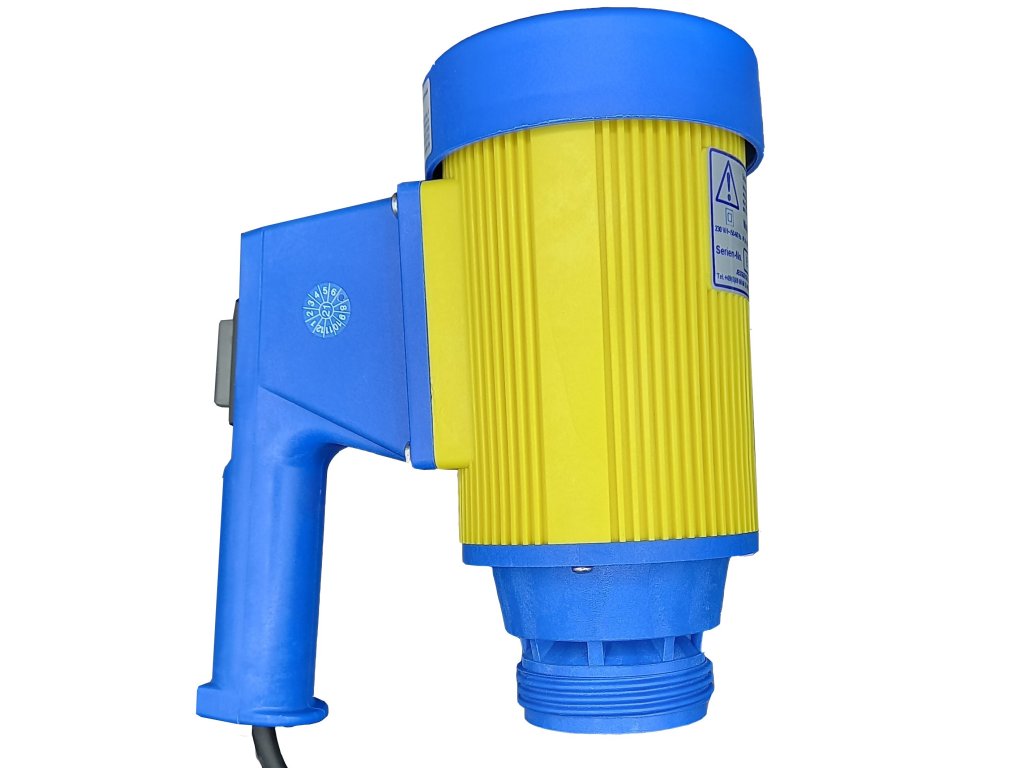

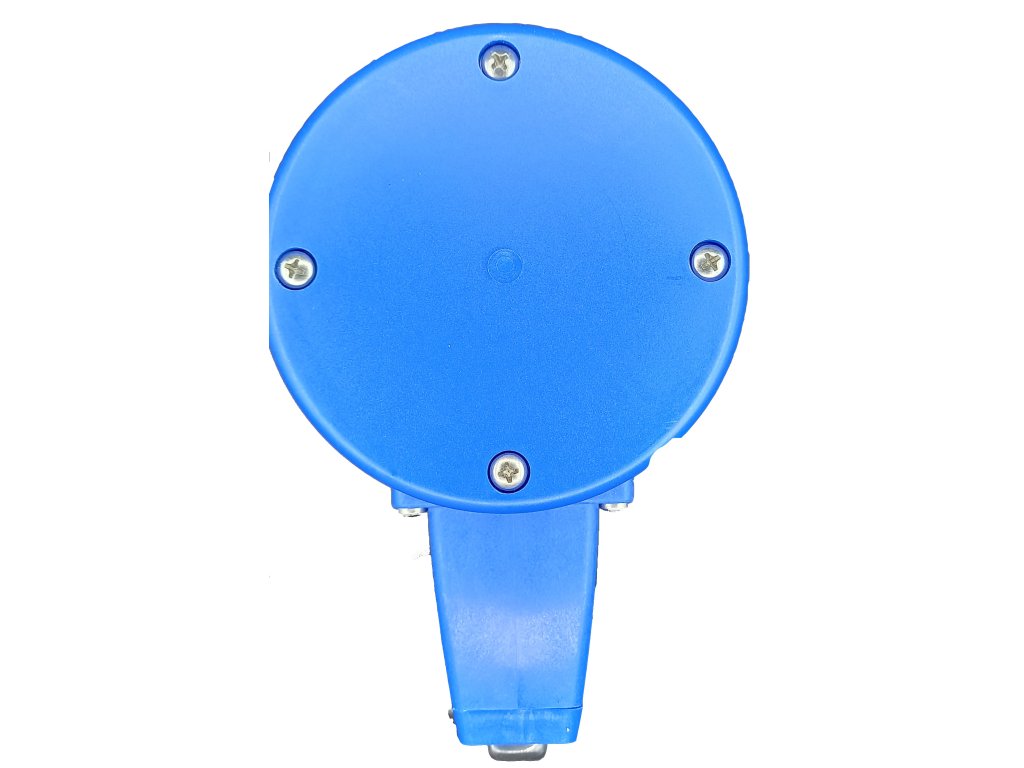

    Universal motor JP-280, 230V, 50Hz, 825W, IP24, thermal protection, 5m cable with fork

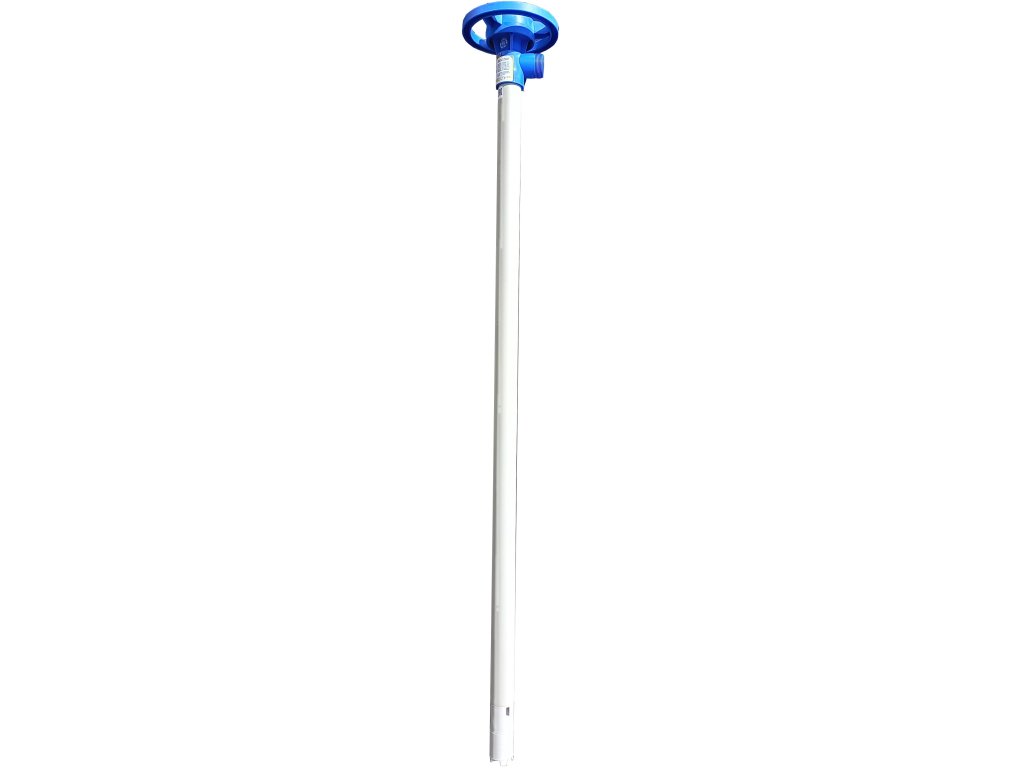

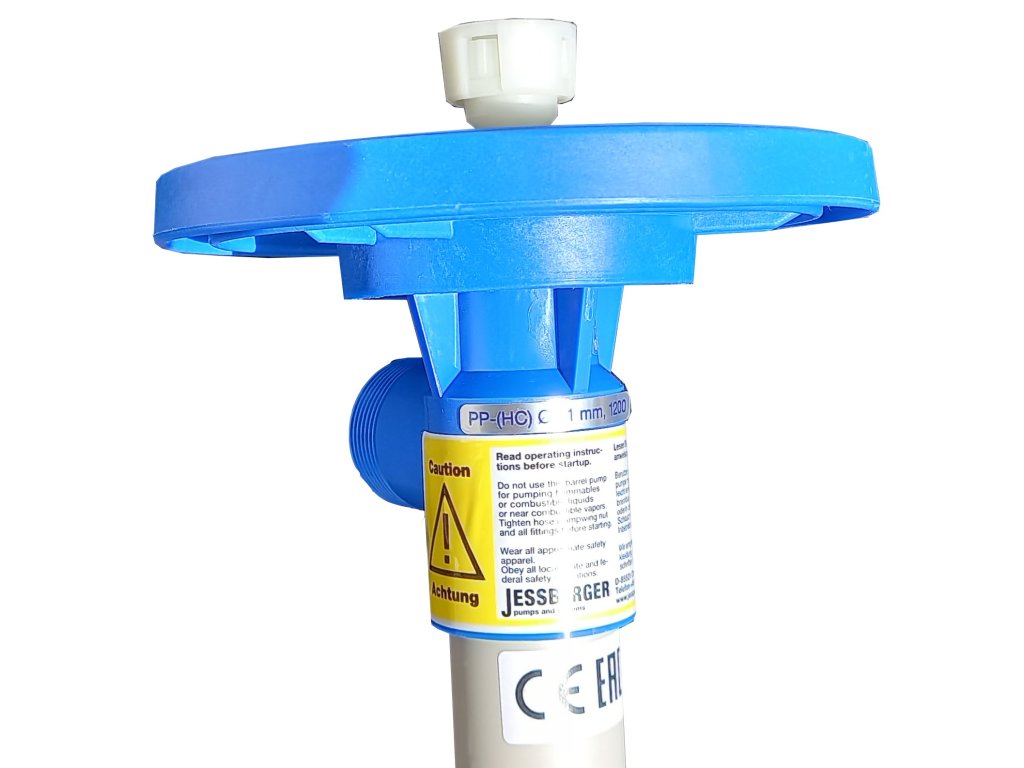

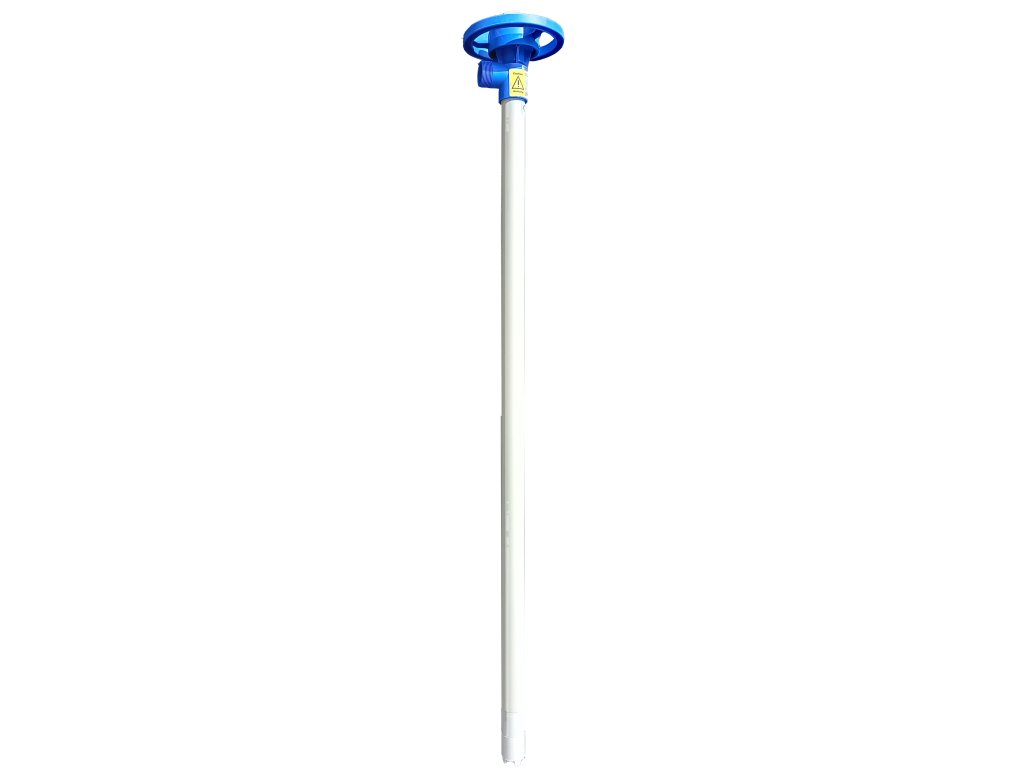

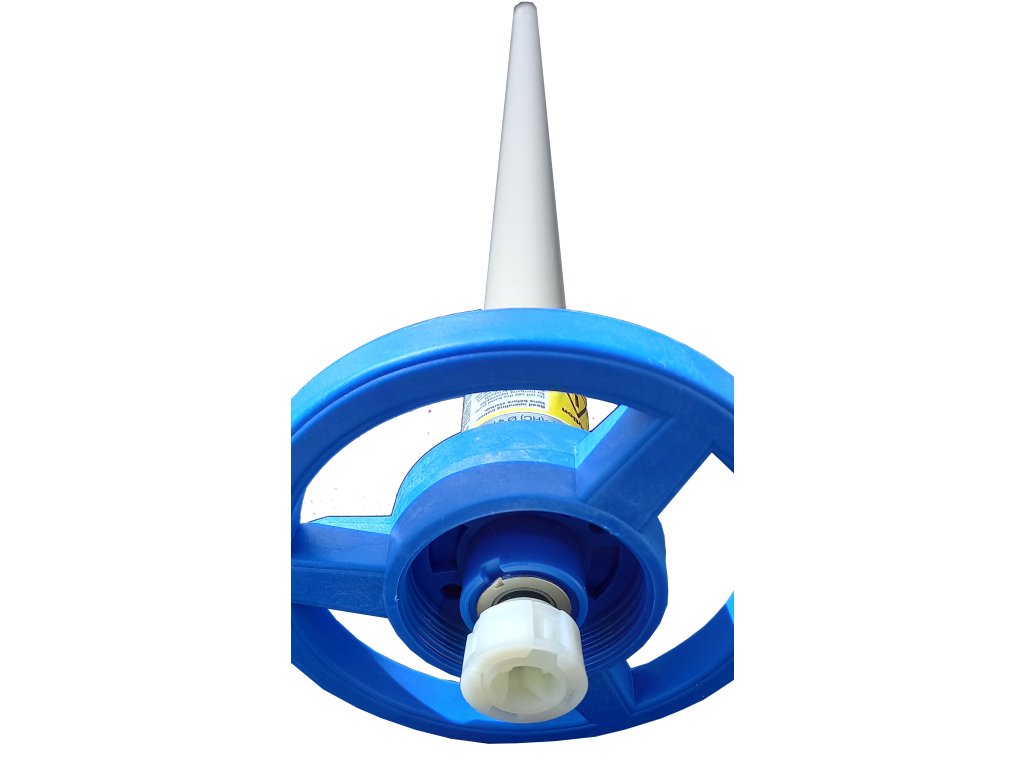

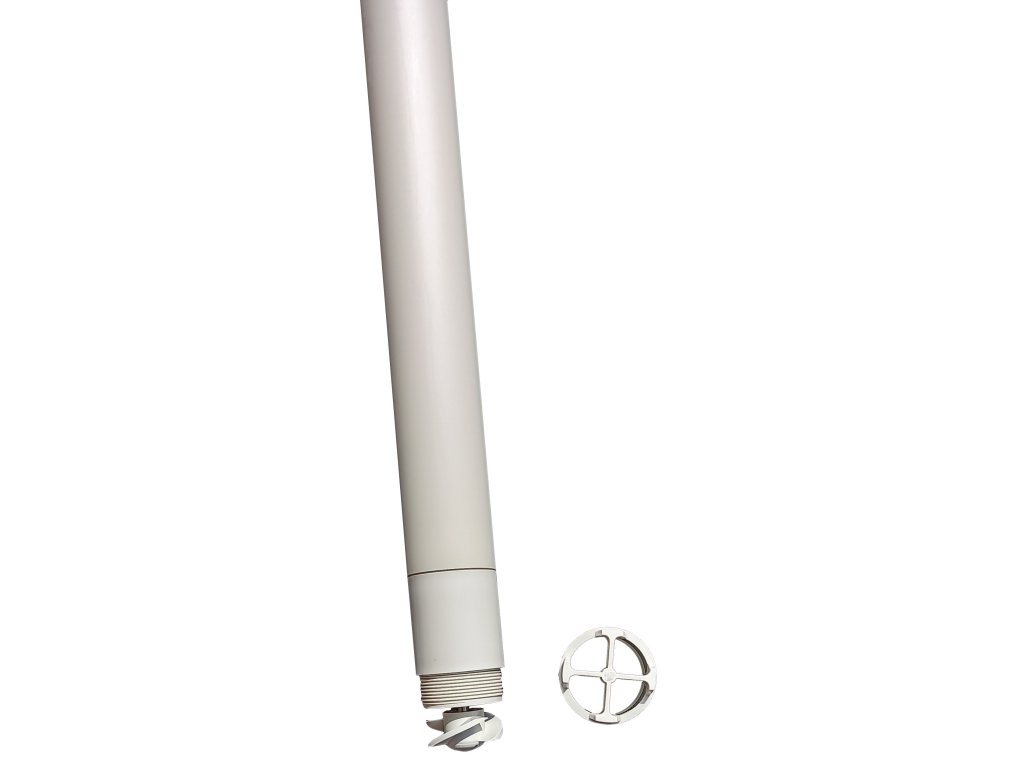

    Pipe 1200 made of PVDF, capless, length 1000mm, shaft made of HC, outside diameter 41mm, connection with outside thread 5/4", hose throat 1".

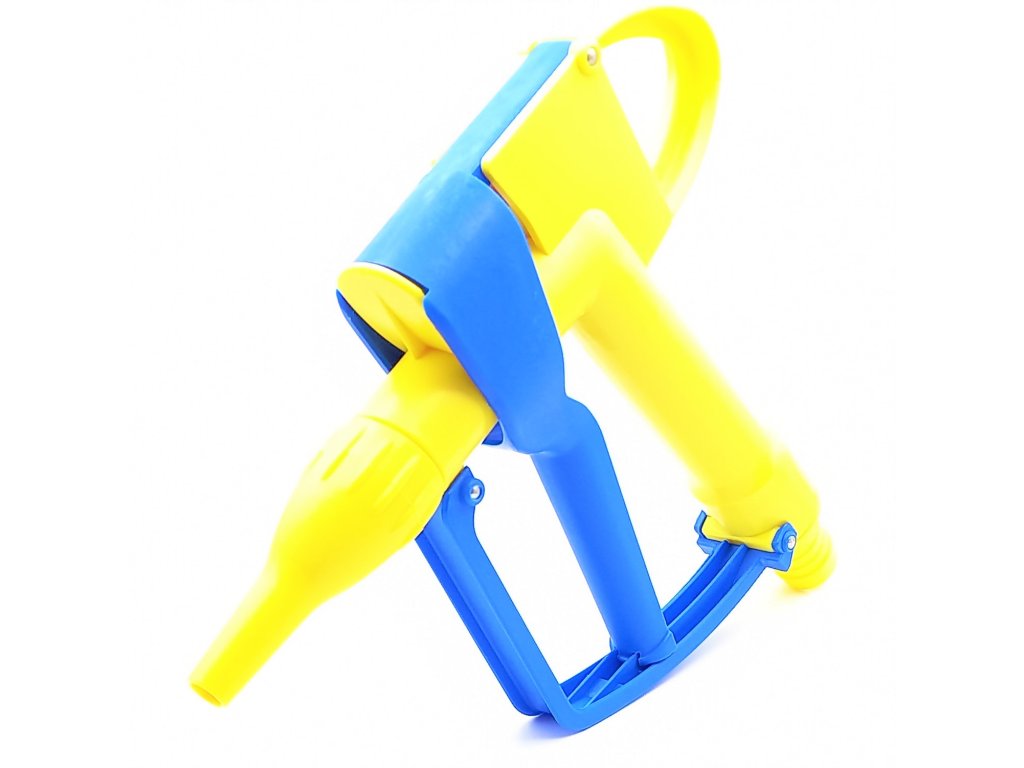

    2m PVC hose 1" - DN25, 1x polypropylene hose gun 1", 2x stainless steel hose clamps.

    Max. viscosity of the medium 1 000 mPa.s

    Detailed information

    Related products

    Staceci pistole pro sudove cerpadlo Create Flow (14)

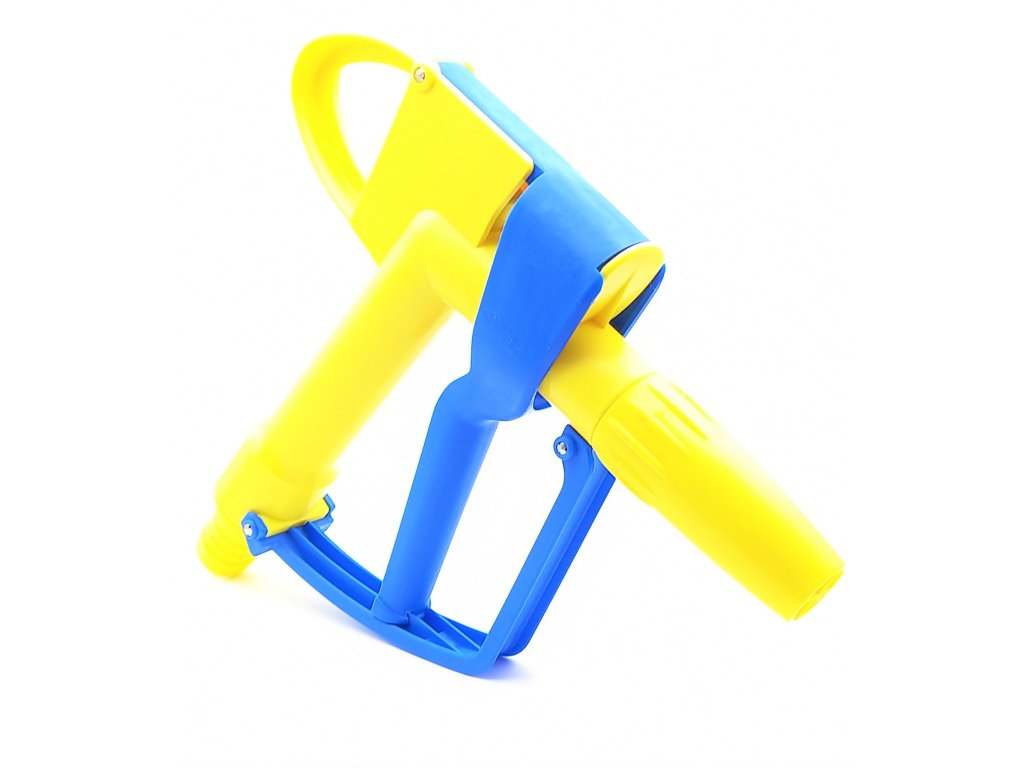

    Spray gun PP 1"
    Dodací termín 3 až 4 pracovní týdny
    167 € incl. VAT
    138 €

    Polypropylene barrel pump dispensing gun for the dispensing of acids and alkalis. Body and internal parts made of polypropylene, valve seat and O-rings made of viton (FMP),...

    Code: 901701
    Tryska Staceci pistole 1157 pro sudove cerpadlo Create Flow
    Spare nozzle of the PP dispensing gun
    Dodací termín 3 až 4 pracovní týdny
    19 € incl. VAT
    16 €

    Replacement nozzle for 3/4" and 1" polypropylene nozzle.

    Code: 1157
    Příruba pro IBC kontejner Jessberger Create Flow
    Screw cap for IBC container DN 225 for settling the drum pump
    Skladem (1 pcs)
    113 € incl. VAT
    94 €

    Screw-on lid for IBC Container (IBC DN 225 ) IG 2″, optionally with cylindrical adapter PP Ø 41 mm. Colour black

    Code: DN2509071
    Prutokomer PVDF FM 120 Create Flow
    Flowmeter
    Dodací termín 3 až 4 pracovní týdny
    673 € incl. VAT
    556 €

    The PVDF turbine flowmeter is a handy, easy-to-use and inexpensive device for reliable and accurate measurement of aqueous water-like media and, in this case, particularly...

    Code: FM120 PVDF
    Staceci pistole pro sudove cerpadlo Create Flow (15)
    Spray gun PP 3/4"
    Dodací termín 3 až 4 pracovní týdny
    167 € incl. VAT
    138 €

    Polypropylene bottling gun for bottling acids and alkalis. Body and internal parts made of polypropylene, valve seat and O-rings made of viton (FMP), spring HC, max. viscosity...

    Code: 9102
    patní koš pro kyseliny sudové čerpadlo
    Snap-on filter on the tube barrel pump
    Dodací termín 3 až 4 pracovní týdny
    42 € incl. VAT
    35 €

    Fitting filter on the barrel pump tube. Material polypropylene. The filter prevents dirt from entering the barrel pump with 1.5x12 mm holes.

    Code: 9011
    Stáčecí pistole PFDF pro kyseliny Jessberger sudové čerpadlo Create Flow
    Spray gun made of PVDF 1"
    Dodací termín 3 až 4 pracovní týdny
    265 € incl. VAT
    219 €

    Bottling guns made of PVDF for the chemical, food and pharmaceutical industry. Body and internal parts made of PVDF. Max. viscosity 900 mPas, flow 65 l/min, pressure 3 bar,...

    Code: 9109
    Stáčecí pistole PFDF pro kyseliny Jessberger sudové čerpadlo Create Flow
    Spray gun made of PVDF 3/4"
    Dodací termín 3 až 4 pracovní týdny
    265 € incl. VAT
    219 €

    Stacking gun made of mat. PVDF for bottling of concentrated acids and alkalis. Body and internal parts made of polypropylene, valve seat and O-rings made of viton (FMP), spring...

    Code: 9108
    sací filtr pro sudove cerpadlo Create Flow
    Snap-on filter for barrel pump mat. Stainless steel
    Dodací termín 3 až 4 pracovní týdny
    141 € incl. VAT
    116 €

    Mounting filter for barrel pump made of stainless steel ( DIN 1.4571 ) to prevent dirt from entering the pump with 1.5 x 12mm holes.

    Code: 909004
    nahradni staceci triska Staceci pistole pro sudove cerpadlo Create Flow
    Spare nozzle of the PP dispensing gun (smaller)
    Dodací termín 3 až 4 pracovní týdny
    19 € incl. VAT
    16 €

    Replacement nozzle for 3/4" and 1" polypropylene nozzle.

    Code: 1158
    Show all related products Previous product Next product

    Product detailed description

    JP280 výkonová křivka sudové čerpadlo JESSBBERGER Create Flow

    JP 180 Sudové čerpadlo JESSBERGER Create Flow

    Additional parameters

    Category: Barrel pumps JESSBERGER
    Warranty: 2 roky vyjma dílů podléhající vysokému stupni opotřebení
    Weight: 5 kg
