Monitor vibrations adjustable ISO10816 AV002

Code: AV002

Brand: Autosen

AV002 monitor vybrací

AV002 monitor vybrací

av002 monitor vybrací (2)

av002 monitor vybrací

228 € / pcs 276 € incl. VAT 228 € / 1 pcs

Delivery to: 13/01/2025

Measuring range: veff (RMS): 0 ... 25 mm/s
Degree of protection IP67
LED display

AV002 is an ISO 10816 vibration monitor with device connection via M12 connector. The device has two outputs and a measuring range veff (RMS): 0 ... 25 mm/s

The device is particularly easy to adjust using the adjustment ring. Vibration monitoring of machinery and equipment in accordance with ISO 10816

Electric vibration monitoring monitors the overall vibration condition of machinery and equipment in accordance with ISO 10816. These sensors measure the rate of effective vibration on the surface of the non-rotating element with - as usual in an optimal price/performance ratio.

Detailed information

Show all related products

Description
Discussion

Product detailed description

Technical data AV002

General information

Frequency range 10 ... 1000 Hz

Measuring range oscillation 0 ... 25 mm/s (RMS)

Number of measuring axes 1

Delay time adjustable 1 ... 60 s

Outputs / inputs

Switching output normally closed (NC)

Analog output 4 ... 20 mA

Electrical data

Short circuit protection Yes

Surge protection Yes

Overload Yes

DC voltage

Electric PNP version

Current carrying capacity max.500 mA

Voltage drop max. 2 V

Protection class III

Current consumption max.50 mA

Mechanical data

Threaded mounting style

Housing material PBT
V4A (1.4404)
PC
Viton

Connect gold-plated M12 contacts with 4 pins
contact

Overall length 73.1 mm

accuracy

Reproducibility<0.5% of final value

Switch point accuracy<± 4% of full scale

Linear deviation 0 .25%

Measurement error<± 3% of final value

environmental conditions

Ambient temperature min.-30°C

Ambient temperature max.125°C

UL ambient temperature note : <80°C

Degree of protection IP67

Further information

MTTF510

Function indicator LED yellow/green

Accessories included No accessories

EMC approval DIN EN 61000-4-2 ESD
EN 61000-4-3 HF blasted
DIN EN 61000-4-4 rupture
EN 61000-4-6 HF wired

Setting ring Switch point setting
Switching delay

CE approval
cULus

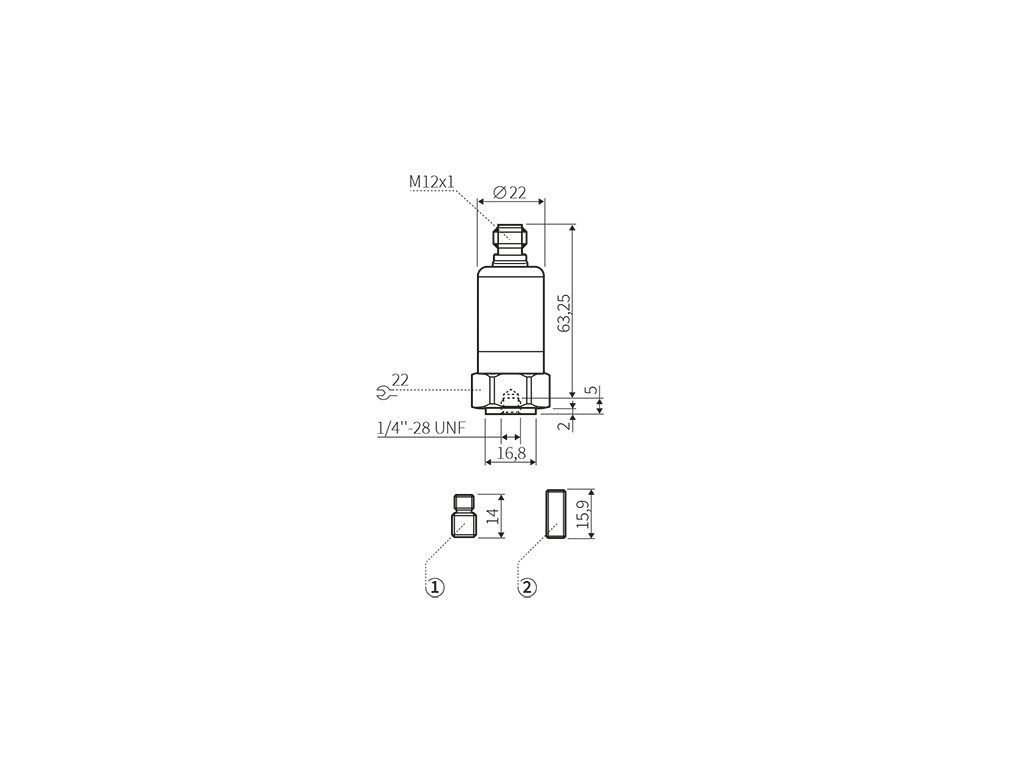

Dimensional drawing Legend 1 : Tightening torque 15 Nm Standard thread pitch M8 1.25 mm

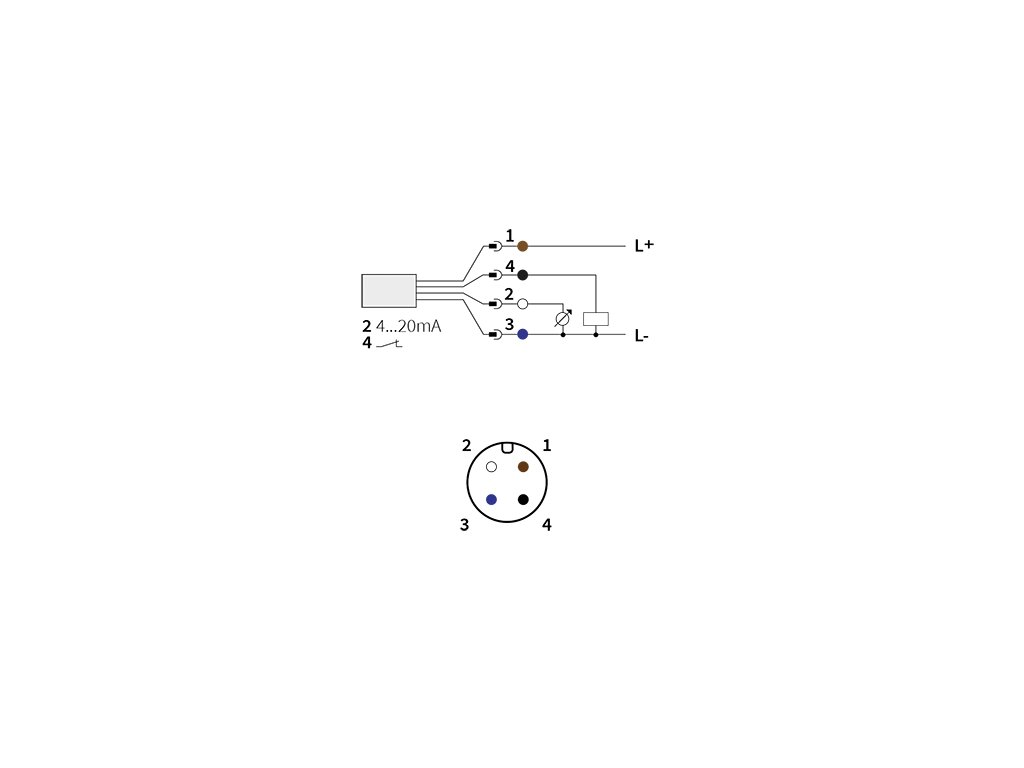

Connection and pin assignment

Additional parameters

Category:	Snímače vybrací
Weight:	0.2 kg
