    Home / Produkty / Průmyslová automazice / Snímače polohy / Snímače válců / T- Sensor war M8 AZ001

    T- Sensor war M8 AZ001

    Code: AZ001
    Brand: Autosen
    AZ001 Snímač válců pro detekci polohy
    42 € / pcs 51 € incl. VAT 42 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    12/02/2025
    • Plastic cover for T-slot cylinder
    • Response sensitivity 2.8 mT
    • Feed speed > 10 m/s

    Suitable, with a sensitivity of 2.8 mT at a passing speed of >10 m/s our T-slot roller switches are ideal for use in packaging, handling and specialty machinery. The automatic mounting for easy setup/installation and the 3-wire connection make commissioning especially fast and safe. The cylinder switch can also be easily inserted into the groove from above

    The universal adapter allows the connection of a wide range of cylinder types.

    Cylinder sensors are used to detect the piston position in pneumatic cylinders. They are mounted directly on the cylinder. Through the casing wall, which is made of non-magnetisable material (such as aluminium, brass or stainless steel), they detect the ring magnet mounted on the piston

    Detailed information

    Related products

    AA908 et main 800
    Mounting tape AA908
    Skladem na externím skladu
    14 € incl. VAT
    12 €

    Material Polyamide (PA) V2A (1.4305) Diameter 8 ... 12 mm Clamping range d11... 19 mm

    Code: AA908
    AA909 et main 800
    Mounting tape AA909
    Skladem na externím skladu
    14 € incl. VAT
    12 €

    Material Polyamide (PA) V2A (1.4305) Diameter 8 ... 20 mm Clamping range d18... 29 mm

    Code: AA909
    AA910 et main 800
    Mounting tape AA910
    Skladem na externím skladu
    15 € incl. VAT
    12 €

    Material Polyamide (PA) V2A (1.4305) Diameter 25... 32 mm Clamping range d28... 39 mm

    Code: AA910
    AA912 et main 800
    Mounting tape AA912
    Skladem na externím skladu
    15 € incl. VAT
    13 €

    Material Polyamide (PA) V2A (1.4305) Clamping range d48... 59 mm

    Code: AA912
    AA001 et main 800 kabel snímače
    Sensor cable 2 m PUR M8 3 pole IP 69 AA001
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    AC/DC Protection IP 67 | IP 68 | IP 69K Vibration and shock resistant

    Code: AA001
    AA002 et main 800 kabel snímače
    Sensor cable 5 m PUR M8 3 pole IP 69 AA002
    Skladem na externím skladu
    24 € incl. VAT
    20 €

      Vibration and shock resistant Protection IP 67 | IP 68 | IP 69K AC/DC

    Code: AA002
    AA003 et main 800 kabel snímače
    Sensor cable 2 m PUR M8 3 pole IP 69 AA003
    Skladem na externím skladu
    25 € incl. VAT
    20 €

    DC PNP Protection IP 67 | IP 68 | IP 69K 2 LEDs for switching and controlling the display

    Code: AA003
    AA004 et main 800 Kabel snímače
    Sensor cable 5 m PUR M8 3 pole IP 69 AA004
    Skladem na externím skladu
    27 € incl. VAT
    22 €

    DC PNP Protection IP 67 | IP 68 | IP 69K 2 LEDs for switching and controlling the display

    Code: AA004
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    215 € incl. VAT
    178 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    317 € incl. VAT
    262 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    260 € incl. VAT
    215 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    Show all related products Previous product Next product

    Product detailed description

    Technical data AZ001

    General information

    10000 Hz

    Outputs / inputs

    normally open (NO)

    Electrical data

    Yes
    10 ... 30 V DC
    Yes
    Yes
    DC
    PNP
    100 mA
    2.5 V
    III
    10 mA
    delay time .03 s

    Mechanical data

    polyamide (PA)
    Polyamide (PA)
    PUR cable

    Gold plated contacts
    3-
    pin with pigtail
    .3 m
    25,3 mm

    accuracy

    .5 mm
    .8 mT
    .2 mm
    10 m/s

    environmental conditions

    . -25°C
    85°C
    IP65/IP67

    Further information

    indicator LED yellow
    mounting screw
    EN 55011 : class B
    DIN EN 61000-4-2 ESD
    EN 61000-4-3 HF blasted
    DIN EN 61000-4-4 rupture
    EN 61000-4-6 HF wired
    CE
    cULus

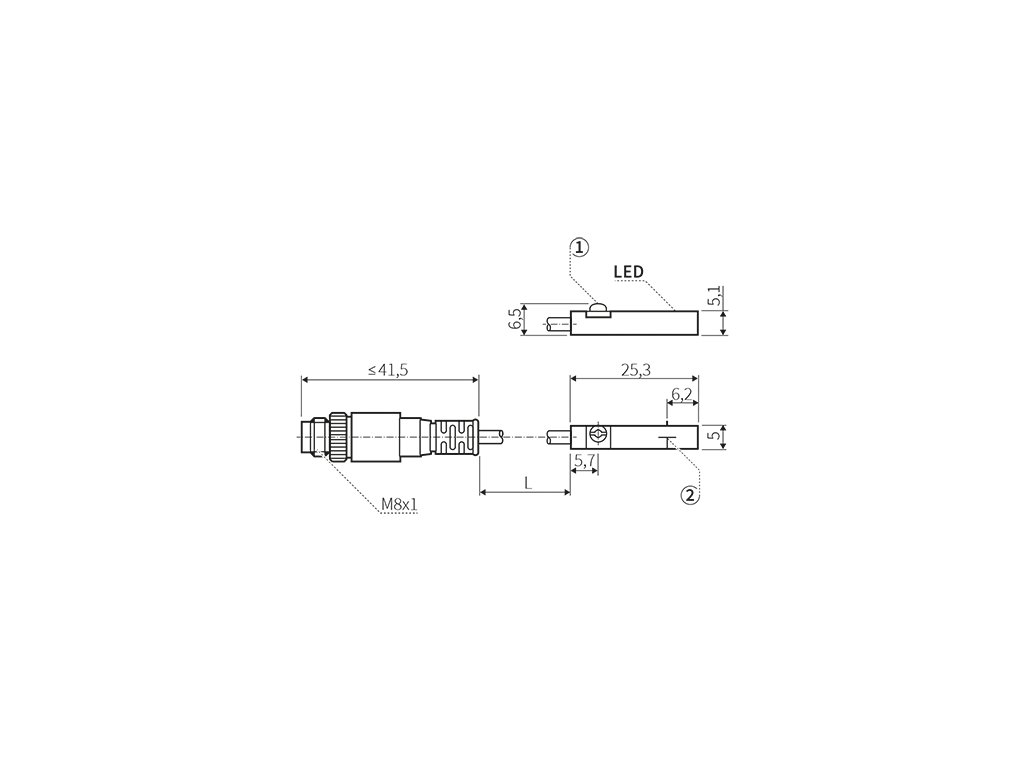

    : Installation of the eccentric
    2: Active surface

    Additional parameters

    Category: Snímače válců
    Warranty: 5 let
    Weight: 0.2 kg
