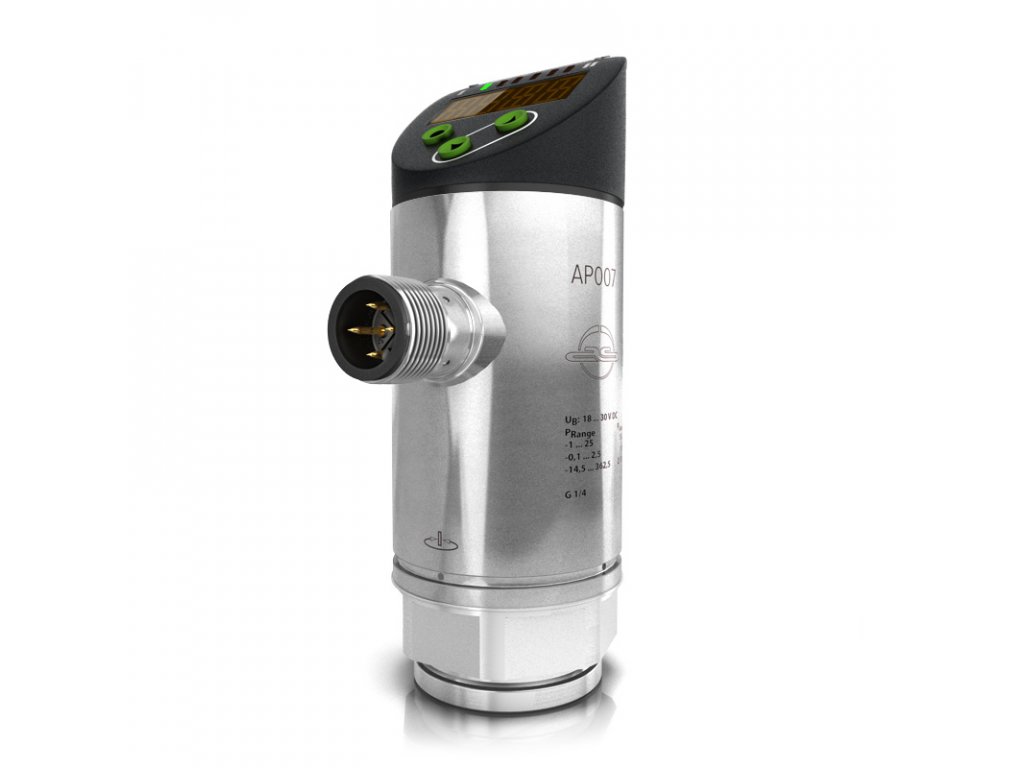

Pressure switch programmable G 1/4I AP007

Code: AP007

555 € / pcs 671 € incl. VAT 555 € / 1 pcs

Delivery to: 13/01/2025

Ceramic Capacitive Pressure Cell
Function programmable
IO-Link devices

The AP007 electronic pressure transmitter has a ceramic-capacitive pressure sensor and a G 1/4 process connection according to DIN EN ISO 1179-2. The device has 2 outputs (OUT1 = switching output, OUT2 = analog output), whose function is programmable. The AP007 has a measuring range of -1 ... 25 bar / -14.5 ... 362.5 psi / -0.1 ... 2.5 MPa and a four-digit alphanumeric display and a red and green change indicator. The device also has an IO-Link facility.

Detailed information

Show all related products

Product detailed description

Technical data AP007

General information

Application Liquid and gaseous media

Pressure type Relative pressure

Pressure measurement range min-1 bar

Pressure measurement range Max.25 bar

Switching frequency 500 Hz

Compressive strength 150 bar

Process connection G 1/4 female thread

Outputs / inputs

Switched output 2 x normally open/normally closed programmable

Analog output 4 ... 20 mA/ 0 ... 10 V
Programmable/scalable

IO-Link Yes

Electrical data

Short circuit protection Yes

Operating voltage 18 ... 30 V DC

Surge protection Yes

Overload Yes

DC voltage

Electrical design PNP/NPN
Programmable

Current carrying capacity max.250 mA

Voltage drop max. 2 V

Protection class III

Current consumption max.35 mA

Mechanical data

Materials in contact with V4A medium (1.4404)
FKM
Al2O3 (ceramics)

Tightening torque of the coupling nut 25 ... 35 Nm

Housing material V4A (1.4404)
PC
PBT + PC-GF 30
PBT-GF 20

Connect gold-plated M12 contacts with 4-pin contacts

accuracy

Hysteresis<± 0.1%

Resolution 0 .05 bar

Standby delay time 0 .3 s

Reproducibility<± 0.1%

Switch point accuracy<± 0.4%

Linearity deviation<± 0.25% (BFSL)

Delay adjustable 0 ... 50 s

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.80°C

Medium temperature-25... 80°C

Degree of protection IP65/IP67

Further information

MTTF138

Function indicator yellow/green
3 x LED
2 x LED
programming buttons

Accessories included No accessories

EMC testing DIN EN 61000-6-2
DIN EN 61000-6-3

Impact resistance test DIN EN 60068-2-27

Vibration resistance test DIN EN 60068-2-6

Pressure Equipment Directive Good engineering practice

CE approval
cULus

Drawing Legend 1 : 4-position alphanumeric display / change indicator (red and green)
2: LEDs (signalling unit / switching status),
3: Programming button
4: Upper part of the housing 345° rotation

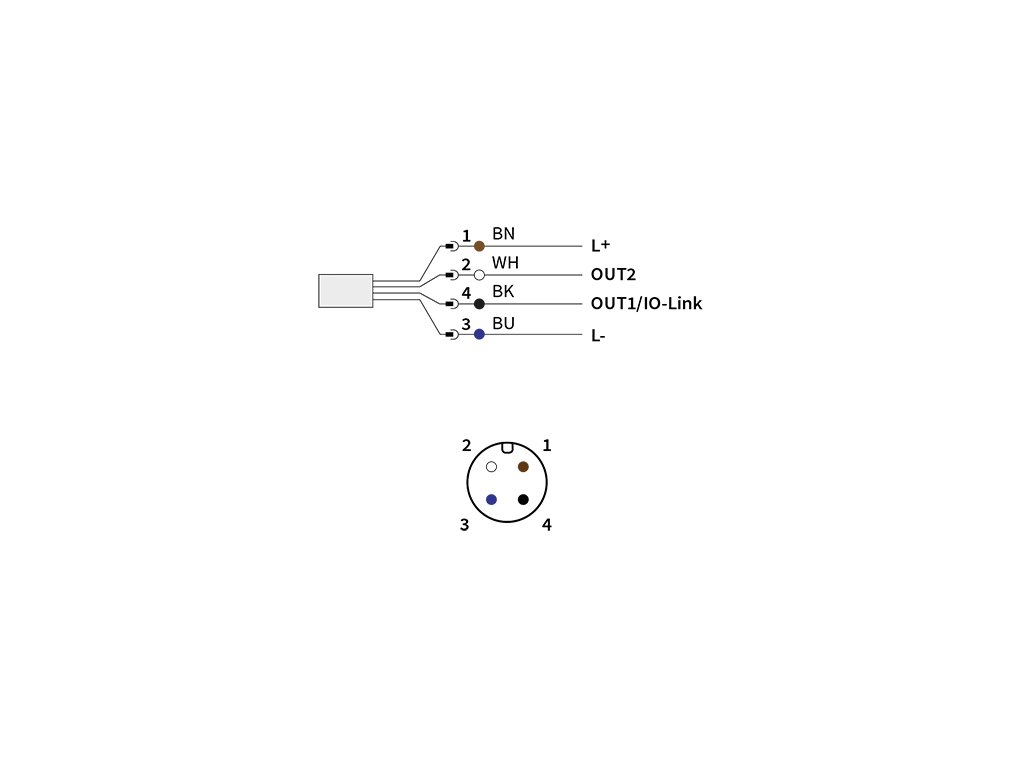

Connection and pin assignment
