Pressure switch G 1/4 A M5 AND AP001

Code: AP001

Brand: Autosen

AP001 et main 800 tlakový spínač

AP001 et main 800 tlakový spínač

ap001 drawing tlakový spínač

ap001 pins tlakový spínač

191 € / pcs 231 € incl. VAT 191 € / 1 pcs

Delivery to: 13/03/2025

The AP001 electronic pressure switch has a process connection of G 1/4 A M5 I and is suitable for use in liquid and gaseous media. The device has 2 switching outputs (normally open / normally closed), one M12 plug and a measuring range of 0 ... 10 bar / 0 ... 145 psi. The device is particularly easy to adjust using the adjustment rings.

The sensors have robust housings and do not require moving parts such as pistons or springs. The result: the sensors are extremely shock and vibration resistant and operate completely wear and maintenance free. Our transducers are resistant to dynamic pressure surges and guarantee a high level of overload resistance - even at extreme pressure peaks, such as those that occur with fast closing valves

Detailed information

Show all related products

Product detailed description

Technical data AP001

General information

Application : liquid and gaseous media

Pressure Type : Relative Pressure

Pressure measurement range Min.0 bar

Pressure measurement range Maximum 10 bar

Switching frequency 100 Hz

Burst pressure 300 bar

Pressure resistance 25 bar

Process connection external thread
G 1/4 thread M 5

Outputs / inputs

Switching output Active: normally open + normally closed (adjustable)

IO-Linkch.

Electrical data

Short circuit protection Yes

Operating voltage 9 .6 ... 32 V DC

Surge protection Yes

Overload resistance Yes

DC voltage

Electric PNP version

Current carrying capacity max.500 mA

Voltage drop max. 2 V

Protection class III

Current consumption max. 25 mA

Materials in contact with V4A (1.4404) FPM

Tightening torque of coupling nut 25 Nm

Switching cycles Minimum 50 million

Housing material PBT
V4A (1.4404) PC FPM

Connect gold-plated contacts M12 4-pin

accuracy

Reproducibility<± 0.5%

Switch point accuracy<± 2.5%

BFSL<± 1.5 (BFSL)

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.85°C

Medium temperature -25 ... 80°C

Degree of protection IP67

Further information

Function indicator LED yellow/green

Accessories with seals

EMC test DIN EN 61000-4-2 ESD
DIN EN 61000-4-3 HF

Impact resistance test DIN EN 60068-2-27

Vibration resistance test DIN EN 60068-2-6

Setting the switching point of the ring

CE approval
cULus

Dimensional drawingLegend1: Seal FPM / DIN 3869-14

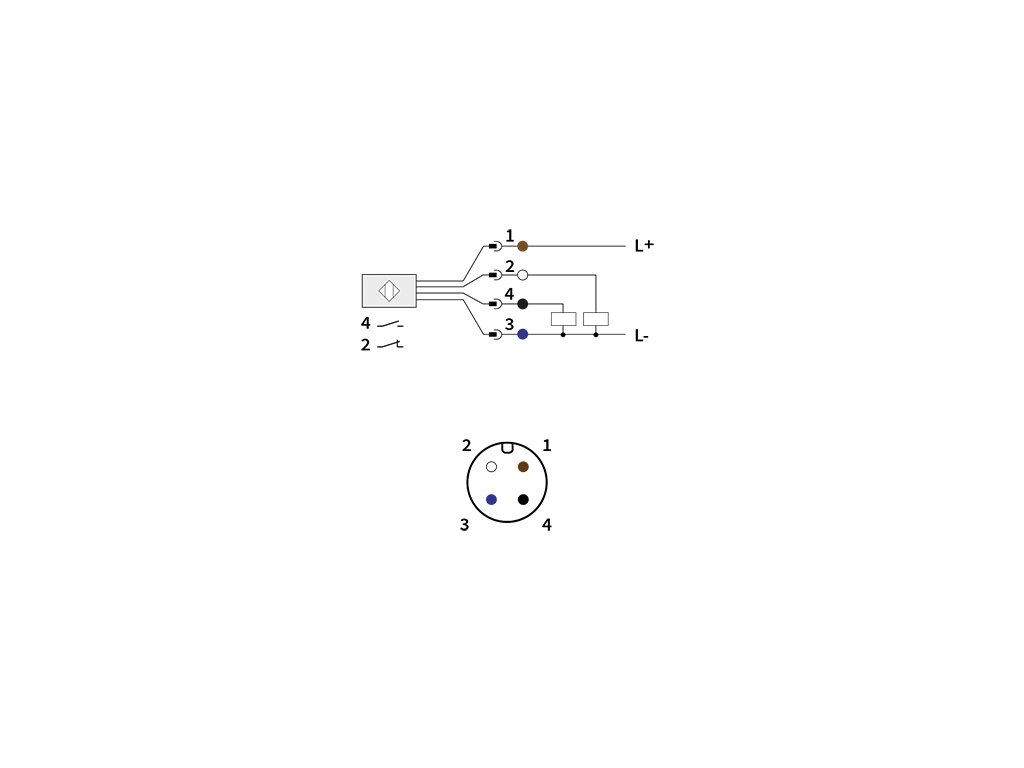

Connection and pin assignment

Additional parameters

Category:	Snímače tlaku
Warranty:	2 years
Weight:	0.2 kg
