Pressure switch Programmable G1/4I AP011

Code: AP011

461 € / pcs 558 € incl. VAT 461 € / 1 pcs

Delivery to: 13/02/2025

Ceramic Capacitive Pressure Cell
Function programmable
IO-Link devices
Fast delivery

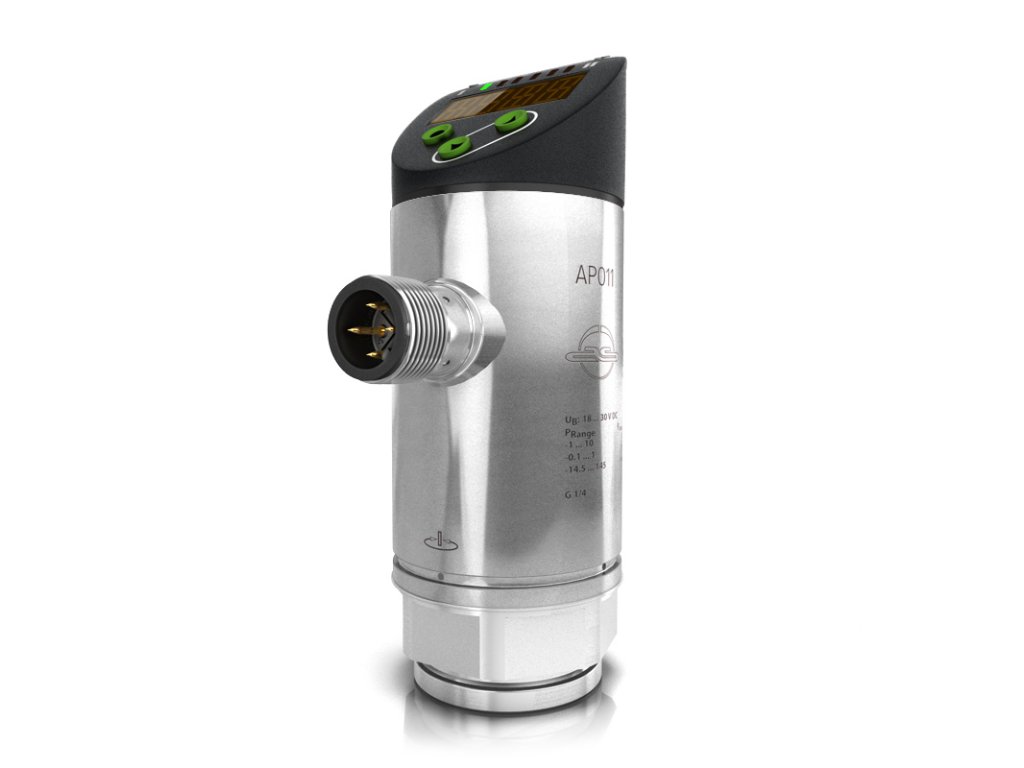

The AP011 electronic pressure switch has a ceramic-capacitive pressure sensor and a G1/4 I process connection. The device has 2 outputs (programmable NO/NC) whose functions can be programmed. The AP011 has a measuring range of -1 ... 10 bar / -14.5 ... 145 psi / -0.1 ... 1.0 MPa and a four-digit alphanumeric display as well as a red and green display change, The instrument also has an IO-Link facility

Suitable for liquid and gaseous media of liquid group 2 according to article 9 of the Pressure Equipment Directive (PED).

Detailed information

Show all related products

Product detailed description

Technical data AP011

General information

Application Liquid and gaseous media

Pressure type Relative pressure

Pressure measurement range min-1 bar

Pressure measurement range Maximum 10 bar

Switching frequency 170 Hz

Burst pressure 150 bar

Compressive strength 75 bar

Process connection G 1/4 female thread

Outputs / inputs

Switched output 2 x normally open/normally closed programmable

IO-Link Yes

Electrical data

Short circuit protection Yes

Operating voltage 18 ... 30 V DC

Surge protection Yes

Overload Yes

DC voltage

Electrical design PNP/NPN
Programmable

Current carrying capacity max.150 mA

Voltage drop max.2.5 V

Protection class III

Current consumption max.35 mA

Mechanical data

Materials in contact with medium V4A (1.4404)FKM
Al2O3 (ceramics)

Tightening torque of the coupling nut 25 ... 35 Nm

Switching cycles Minimum 100 million

Housing material PBT
V4A (1.4404)
PC
PBT + PC-GF 30
PBT-GF 20

Connect gold-plated M12 contacts with 4-pin contacts

accuracy

Hysteresis<± 0.25%

Resolution 0 .05 bar

Standby delay time 0 .3 s

Reproducibility<± 0.1%

Switch point accuracy<± 0.5%

Linearity deviation<± 0.25% (BFSL)

Delay adjustable 0 ... 50 s

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.80°C

Medium temperature-25... 80°C

Degree of protection IP65/IP67

Further information

MTTF224

Function indicator yellow/green 3 x LED 2 x LED
programming buttons

Accessories included No accessories

EMC testing DIN EN 61000-6-2
DIN EN 61000-6-3

Impact resistance test DIN EN 60068-2-27

Vibration resistance test DIN EN 60068-2-6

Pressure Equipment Directive Good engineering practice

CE approval
cULus

Dimensional drawing Legend 1 : 4-digit alphanumeric display / change indicator (red and green)
2: LEDs (display unit / switching status)
3: Programming
button 4: Top of cabinet rotatable 345°

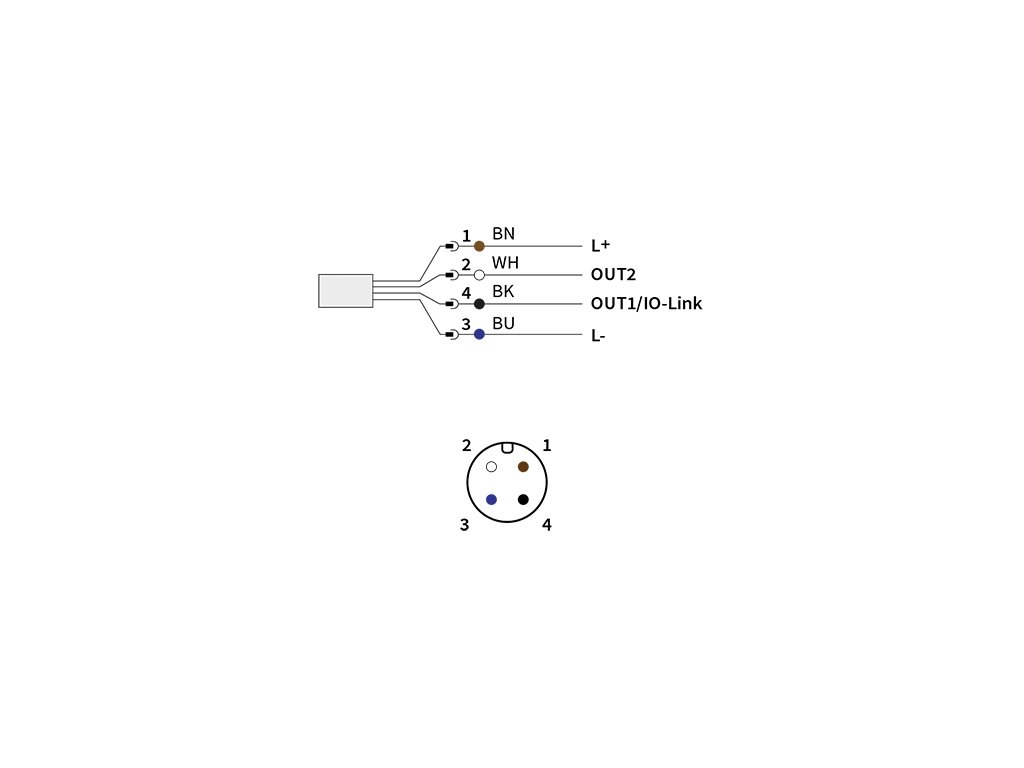

Connection and pin assignment
