    Temperature sensor G1 / 4A 39 mm AT006

    Code: AT006
    Brand: Autosen
    AT006 teplotní čidlo PT100
    145 € / pcs 176 € incl. VAT 145 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    13/01/2025
    • 2 switching outputs (2x normally open)
    • Degree of protection IP67
    • 5 years warranty
    • LED display

    The AT006 temperature sensor with a measuring range of -25 ... 140°C / -13 ... 284°F has a G 1/4 port method with 2 switched outputs (transition), and a PT 1000 measuring element according to DIN EN 60751, class B The device has a mounting length of 39 mm and an M12 connector. The device is particularly easy to adjust using the adjustment ring

    Suitable for liquid and gaseous media

    Temperature monitoring is one of the most important measurement tasks in automation and process technology. The right temperature often has an impact on the quality and cost-effectiveness of the corresponding processes.



    Detailed information

    Related products

    AA943 et main 800
    Adapter AA943 G 1/4 AND G1/2 A
    Skladem na externím skladu
    64 € incl. VAT
    53 €

    Adapter G ¼ I - G ½ A Process connection for AT001-AT007 and AP016-AP020

    Code: AA943
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    18 € incl. VAT
    15 €

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA946 et main 800 konektor L
    Connector M12 AA946
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA946
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    215 € incl. VAT
    178 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    317 € incl. VAT
    262 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    260 € incl. VAT
    215 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    Show all related products Previous product Next product

    Product detailed description

    Technical data AT006

    General information

    Liquid and gaseous media
    Compressive 300 bar
    -25°C
    140°C

    Outputs / inputs

    x normally open
    .

    Electrical data

    Yes
    .6 ... 32 V DC power class 2 cULus
    Yes
    Yes
    DC
    PNP
    500 mA
    . 2 V
    III
    30 mA
    .5 s

    Mechanical data

    (1.4404)
    Viton
    Rod 8,2 mm
    Housing PBT
    V4A (1.4404)
    PC
    Viton
    gold-plated M12 contacts with 4-pin contacts

    external thread G 1/4
    96,5 mm
    mm

    accuracy

    0.1°C
    3°C
    s / 3 s
    0.5°C

    environmental conditions

    . -25°C
    70°C
    IP67

    Further information

    640 years
    indicator green 2 x LED
    seals
    DIN EN 61000-4-2 ESD
    EN 61000-4-3 HF blasted
    DIN EN 61000-4-4 rupture
    EN 61000-4-6 HF wired
    DIN IEC 68-2-27
    DIN EN 60068-2-6
    switching point of the ring
    CE
    cULus

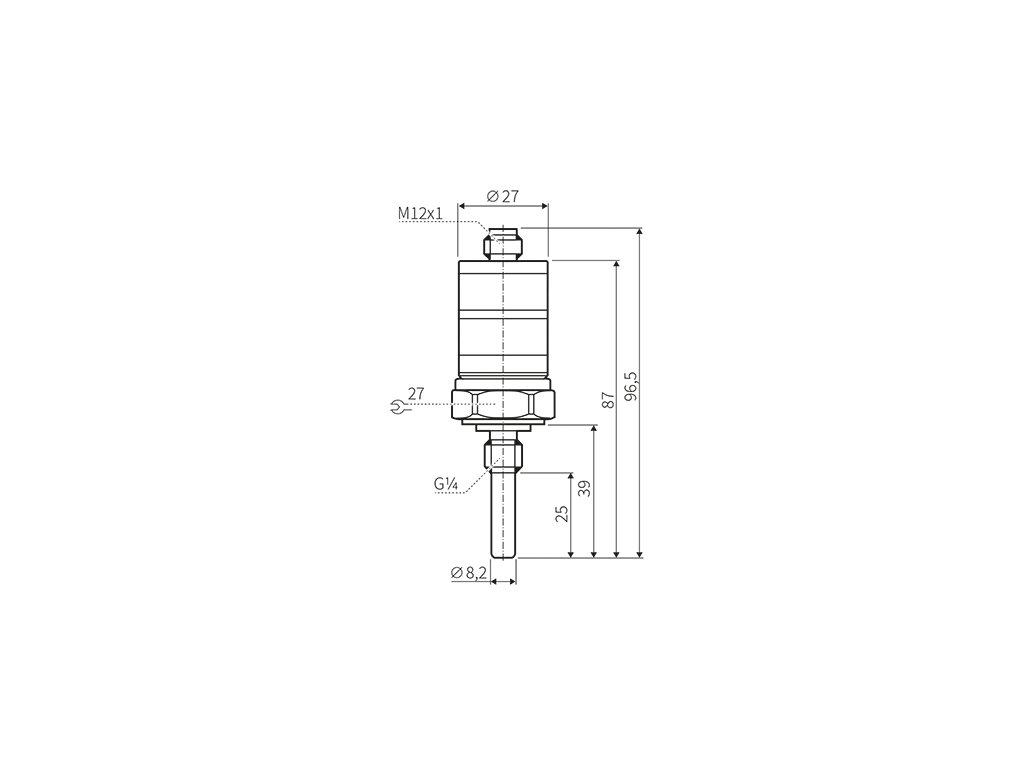

    sketches

    Additional parameters

    Category: Snímače teploty
    Warranty: 5 let
    Weight: 0.2 kg
