Level sensor for level detection G 1/2 A AF005

Code: AF005

Brand: Autosen

AF005 snímač haldiny

AF005 snímač haldiny

af005 snímač haldiny

af005 snímač hladiny

188 € / pcs 228 € incl. VAT 188 € / 1 pcs

Delivery to: 10/01/2025

IO-Link
Reliable buildup suppression
Reliable tank and container level monitoring

The AF005 binary level switch with G 1/2 A connection process, IP68/IP69K degree of protection is suitable for water level detection and water-based media, oil-based media, oil-based media, cooling lubricants and bulk media.

The AF005 has two programmable switching outputs (normally open/normally closed) that can be parameterized via the IO-Link digital communication interface. The process connection is made via a welding adapter, The device is front mounted and is therefore predestined for monitoring spot levels in tanks and containers. You can see an example set-up in the know-how area.

In the factory settings, the device is preset for water and aqueous media. In many cases, the factory setting is quite sufficient. For special requirements, sensitivity and other functions can be adapted/parameterized to the respective application

Detailed information

Show all related products

Product detailed description

Technical data AF005

General information

Field of application water; aqueous media; oils; oil-based media; coolants; powder media

Unsuitable:See operating instructions

Outputs / inputs

Switched output 2 x normally open/normally closed programmable

IO-Link Yes

Electrical data

Short circuit protection Yes

Operating voltage 18 ... 30 V DC

Surge protection Yes

Overload Yes

DC voltage

Electrical design PNP/NPN
Programmable

Current carrying capacity max.50 mA

Voltage drop max.2.5 V

Protection class III

Current consumption max.35 mA

Mechanical data

Materials in contact with V4A (1.4404)
FKM

Housing material PEI
V4A (1.4404)
FKM
PEEK

Connect gold-plated M12 contacts with 4-pin contacts

Process connection of external thread G 1/2

Rod length L 9 ,6 mm

Front mounting

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.85°C

Maximum tank pressure-1... 40 bar

Medium temperature-25... 100°C

Degree of protection IP68/IP69k

Further information

MTTF534

Function indicator yellow/green/2 x LED

Accessories included No accessories

EMC testing DIN EN 61000-6-2
DIN EN 61000-6-4
DIN EN 61000-6-3

Impact resistance test DIN EN 60068-2-27

Vibration resistance test DIN EN 60068-2-6

CE approval
cULus

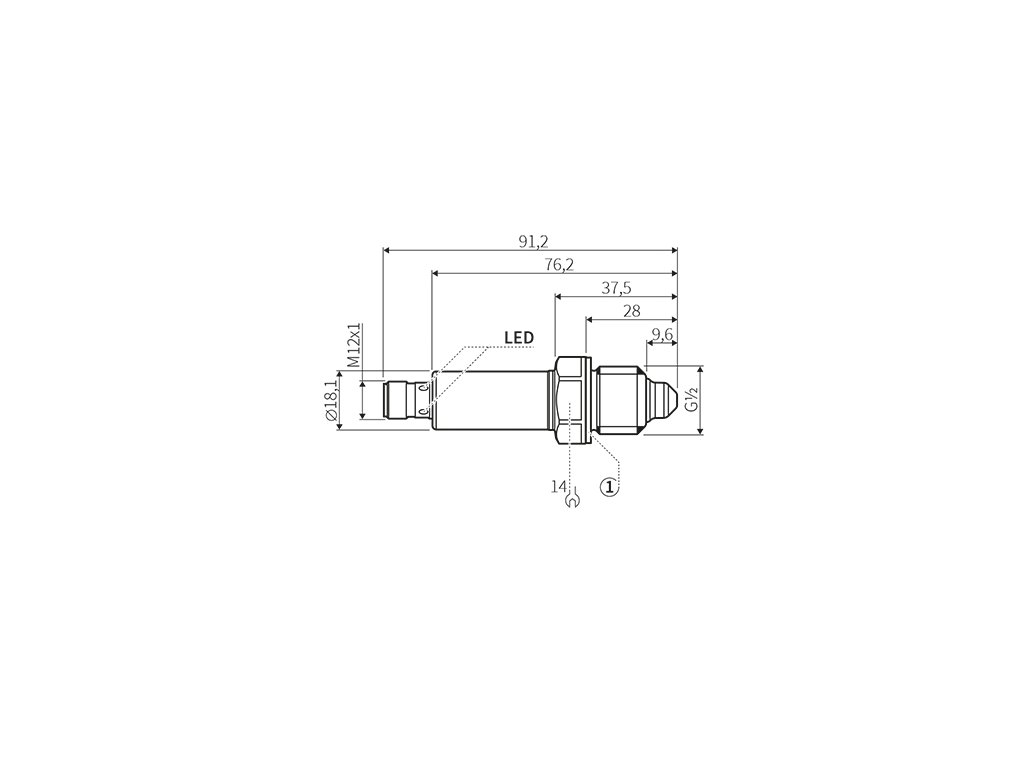

Dimensional drawing Legend 1 : Seals

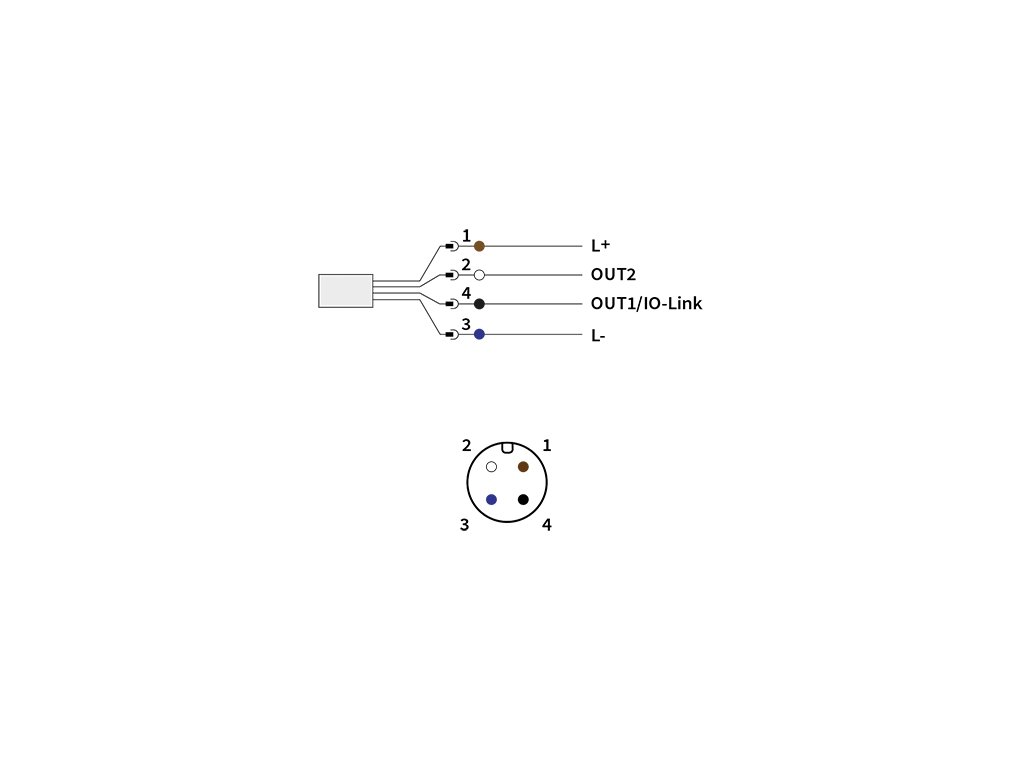

Connection and pin assignment

Additional parameters

Category:	Snímače hladiny
Warranty:	5 let
Weight:	0.2 kg
