AF004 Electronic level sensor G 3/4M

Code: AF004

428 € / pcs 518 € incl. VAT 428 € / 1 pcs

Dodací termín 5 pracovních dnů

Delivery to: 15/01/2025

Electronic level sensor with guided wave radar for water coolers, oils, oil-based media, water, water-like media

The AF004 Electronic Level Transmitter is equipped with a G 3/4 connection for self-closing and a 360° rotating housing. Since there are no mechanical components, it provides high reliability. The unit contacts the medium via a probe (see accessories), has a 4-digit alphanumeric display and 2 switching outputs (normally open/normally closed programmable). AF004 is suitable for use in aqueous media. The unit cannot be used for fats, granulates, bulk materials, acids, alkalis, hygienic and galvanic applications and highly foaming media

Wherever liquid levels are to be checked, our level sensors are used. Even in critical conditions, our units monitor, for example, unintentional overfilling or emptying of containers, hydraulic tanks, silos, storage tanks

Detailed information

Show all related products

Product detailed description

General information

Scope of application Water cooling lubricants, oils, water / water-like media

Not for use:Lubricants; granules; bulk materials; acids; alkaline solutions; highly foaming media

Dielectric constant of the medium > 2; (for media with DK 2 ... 20 (oil) a coaxial tube is required for operation)

Outputs / inputs

Switched output2x normally closed/normally open programmable

IO-LinkAno

Electrical data

Short circuit protection Yes

Operating voltage 18 ... 30 V DC

Surge protection Yes

Overload resistance Yes

Voltage type Direct voltage (DC)

Electrical design PNP

Max.200 mA

Voltage max. 2.5 V

Protection class III

Current consumption max.80 mA

Delay delay 3 s

Mechanical data

Active range AL-40(L-60); (with adjustment for oil and oil medium)

Materials in contact with V2A medium (1.4305)
V4A (1.4435)
Seal: Seal
FKM

Comments(see accessories)

Housing materialPEI
PBT
V2A (1.4305)
FKM
PTFE
TPE/V
PC

M12 connectors
Contacts gold plated
4 pin

Process connection External thread
G 3/4

Probe length L100... 1600 mm

Accuracy

Resolution ±10 mm

Switch point accuracy ±20 mm

Ambient conditions

Ambient temperature min.0°C

Ambient temperature max.60°C

Maximum vessel pressure-1... 16 bar

Medium temperature 0 ... 80 °C; (90 °C <1 h) °C

Degree of protection IP67

Additional information

MTTF

Function display Display
Yellow
Green
3 x LED
2 x LED
Programming buttons
4-digit display

Accessories included in the seal delivery

EMC testIEC60947-1

Impact resistance testDIN IEC 68-2-27

Vibration resistance testDINIEC 68-2-6

ApprovalCE
cULus

Dimensional drawing

Dimensional drawing legend A : Active range
I1 / I2: Inactive ranges
1: LEDs (display unit / switching status)
1: 4-digit alphanumeric display
3: Programming button
4:

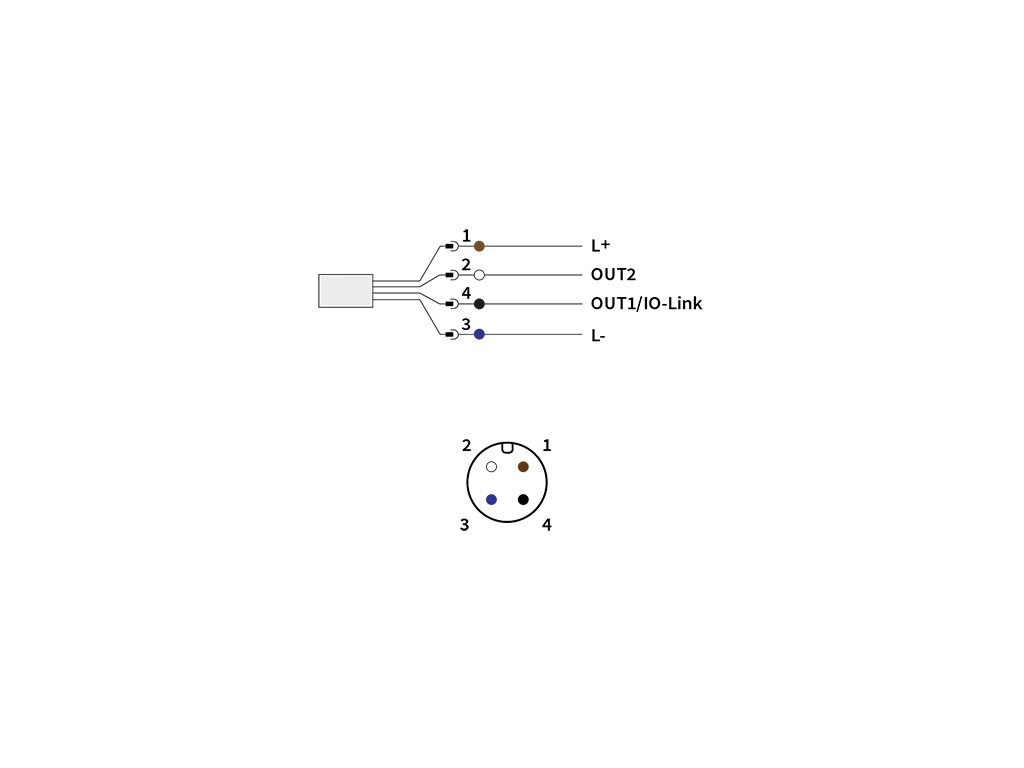

Connection and pin assignment
