Handheld laboratory barrel pump JP-02
Code: 6002 0000Product detailed description

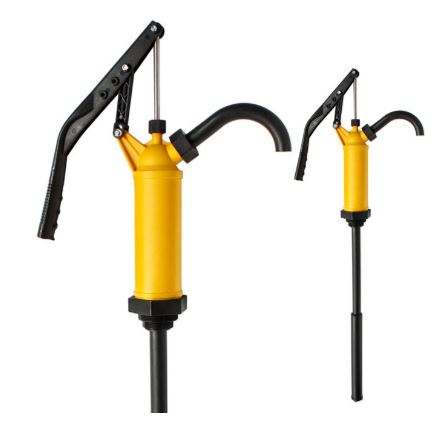

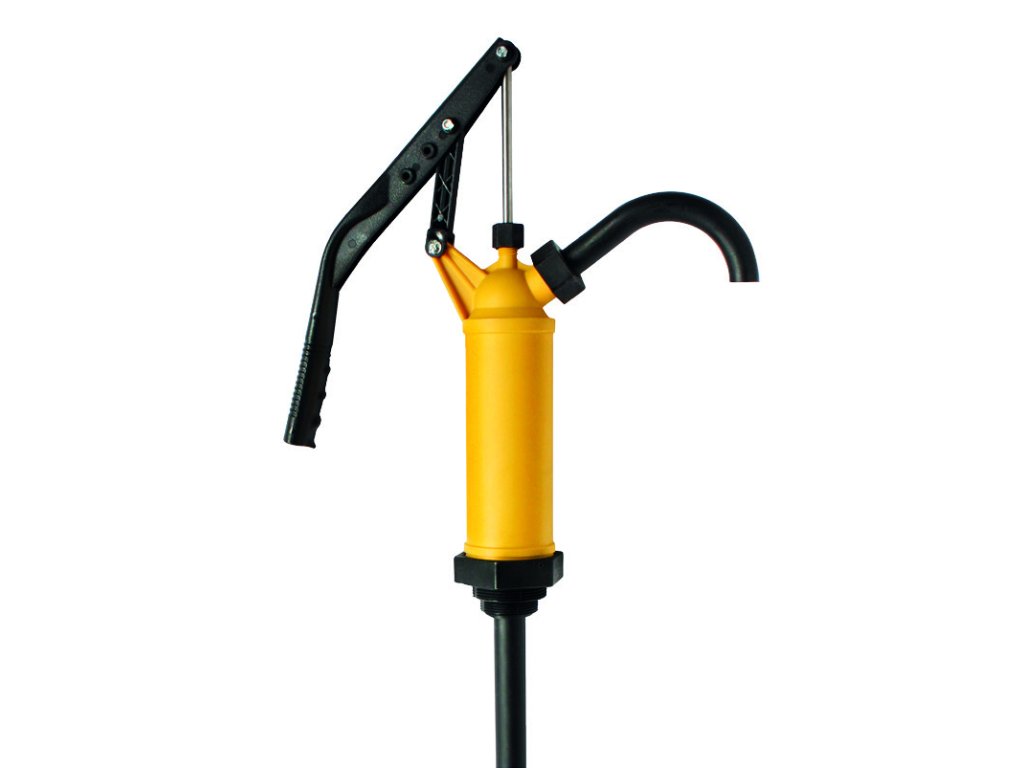

The hand pump shown can be used for 200 litre drums and smaller containers. However, if you ever need to remove small quantities of media from the IBC, we can extend the suction tube to a pump tube length of 1200 mm. The telescopic suction pipe of the pump offered is 340-900 mm long. The pump lever is adjustable to three positions by changing the position to change the pump output to 0.3 or 0.37 or 0.45 l/stroke.

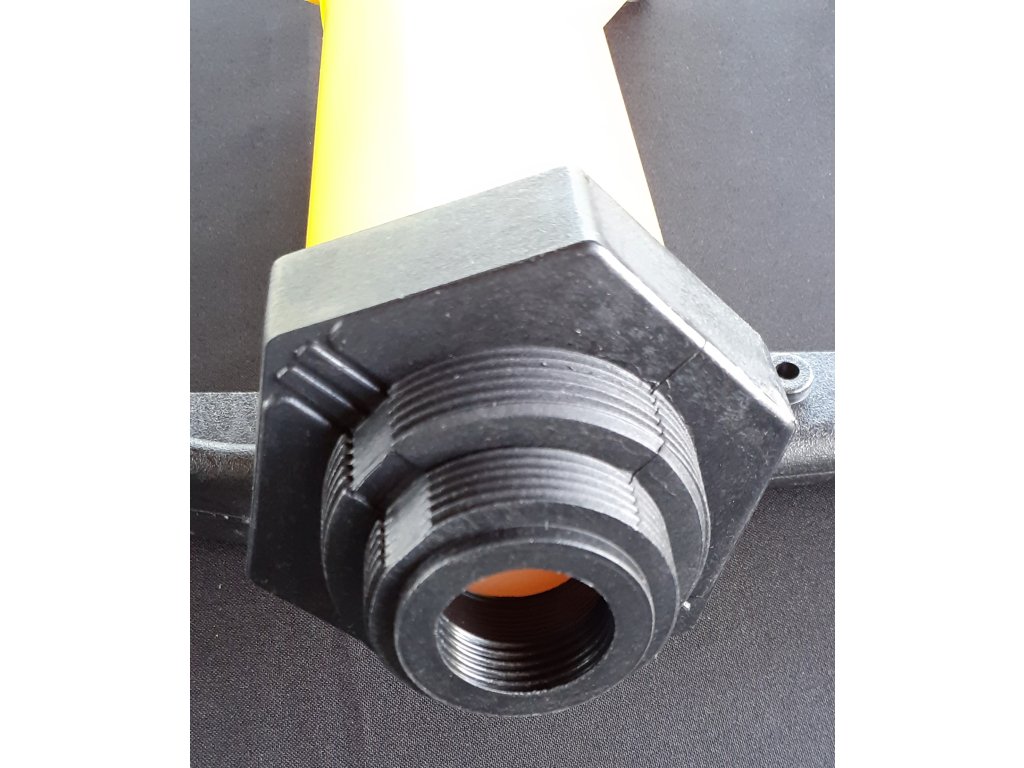

The hand pumps are equipped with large and small cylinder adapters that can be mounted on 60 and 200 litre standard steel vessels.
Additional parameters
| Category: | Ruční sudová čerpadla |
|---|---|
| Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
| Weight: | 2 kg |
| Materiál : | Polypropylen |
| Hřídel: | Nerez ocel SS 304 |
| Materiál těsnění: | Viton |
| Průtok: | Průtok: 0,3, 0,37 nebo 0,45 l / zdvih * v závislosti na poloze páky |
| Délka trubice: | 340-900 mm |
| Průměr trubice: | 40 mm |
