Connection cable Profinet M12-M12 AA035

Code: AA035

Brand: Autosen

AA035 et main 800 Propojovací ethernetový kabel M12 M12

AA035 et main 800 Propojovací ethernetový kabel M12 M12

aa035 drawing propojovací ethernetový kabel Profinet

aa035 pins ethernetový kabel

58 € / pcs 70 € incl. VAT 58 € / 1 pcs

Delivery to: 13/01/2025

For Profinet
Degree of protection IP67
shielded

Detailed information

Product detailed description

For reliable signal transmission between several IO-Link masters. Profinet cabling allows simple and fast parameterization and commissioning of the sensors. The Ethernet cable has a high degree of protection and is also suitable for harsh industrial environments.

The sensor cables are manufactured to the highest quality standards in terms of robustness, interference resistance and reliability in the EU. Even under the most severe operating conditions (e.g. In engineering) our sensor cables permanently maintain the function of the seal.

Technical data AA035

General information

Use forProfinet connection of two IO-Link masters (AD001)

Number of wires 4

Version 4-pin connector
direct
2 x M12 connector

Cable length 2 m

Operating voltage <60 V DC <50 V AC

voltage

Current carrying capacity max.4000 mA

Protection class III

Technical data

Tightening torque lock nut 0 ,6 ... 1,5 Nm

Handle material PUR (TPU)

Material brass steel

Colour black

Cable cover green

Cable material PUR

Ambient temperature min. -25°C

Ambient temperature max.+80°C

Degree of protection IP 67

Electrical connection Ethernet cable shielded CE approval

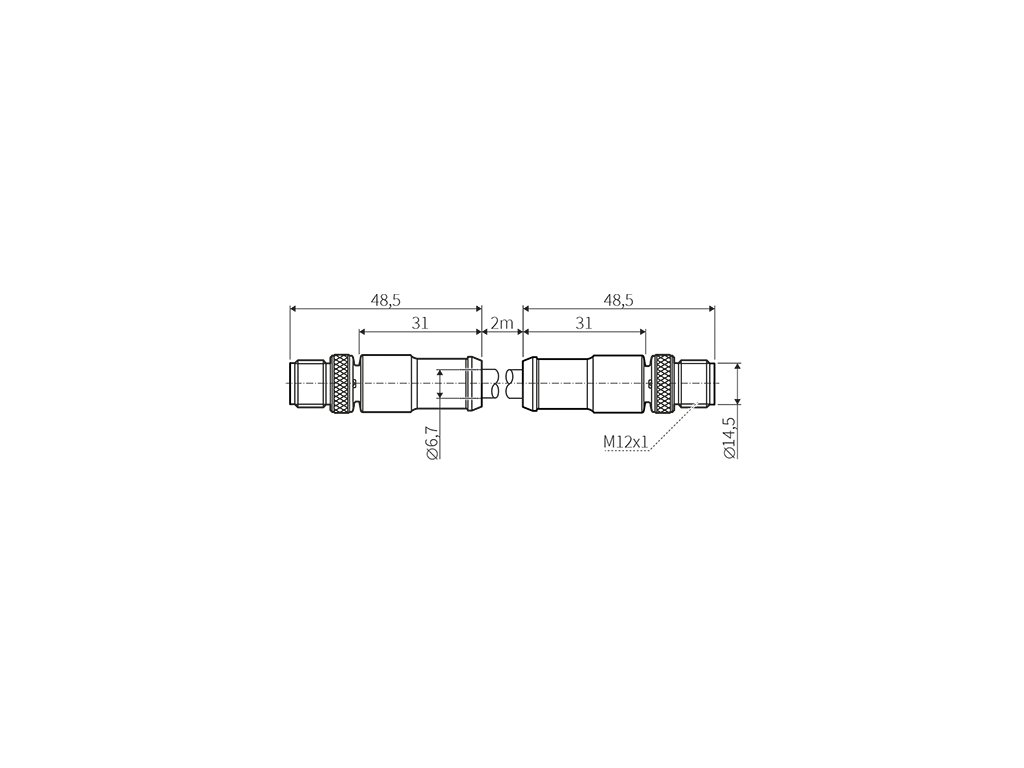

Drawing:

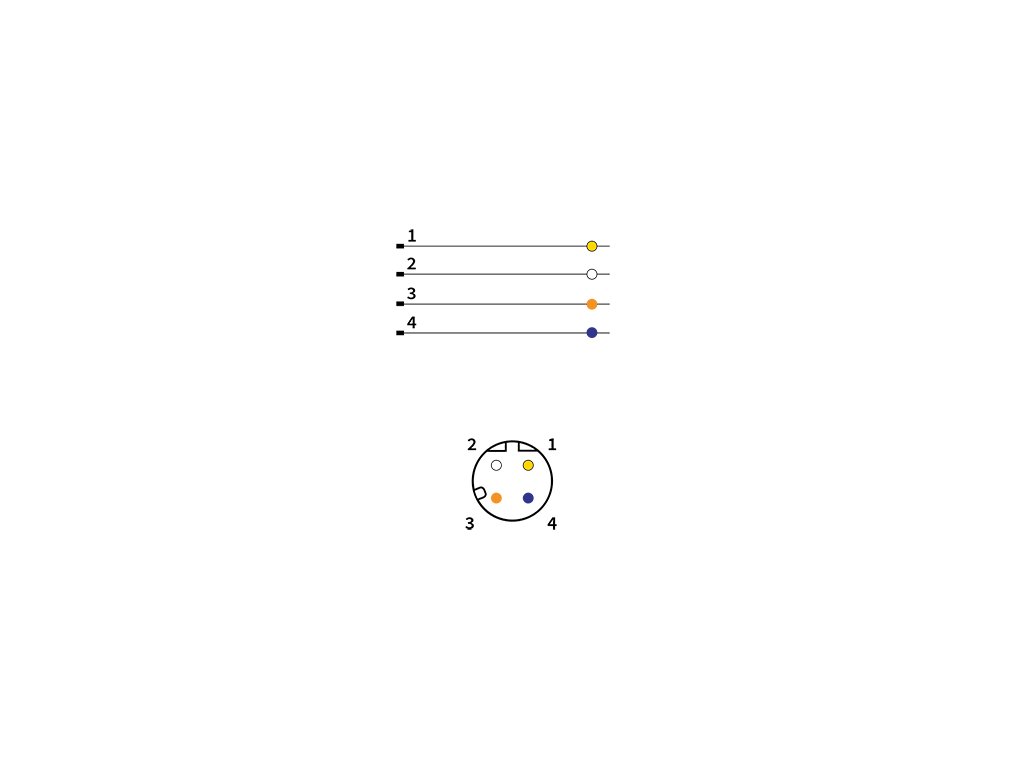

Connection and pin assignment

Additional parameters

Category:	Průmyslová automatizace
Warranty:	2 years
Weight:	0.1 kg
