Display for analog signals AD003

Code: AD003

Brand: Jessberger

AD003 převodník pro analogové signály

AD003 převodník pro analogové signály

ad003 převodník signálu 4 20mA

ad003 převod signálu analog

163 € / pcs 197 € incl. VAT 163 € / 1 pcs

Delivery to: 13/01/2025

M12 connector connection
With switchable LED display
programmable

The AD003 allows monitoring of analog sensors. Switch points as well as normally open/normally closed functions are conveniently set via touch probes or IO-Link. The analogue measured value is displayed on the display. The colour display (red/green) is freely programmable.

With the AD003, analog signals can be converted to SIO and IO-Link mode even if the analog sensors do not initially support IO-Link. All functions can be conveniently set using the configuration software: io

All functions can also be set using the probe and display rings, which is why the AD003 can be operated without IO-Link. The AD003's flexibility is complemented by its high IP67 protection rating and compact design, making it perfectly suited for use in the field, even in challenging conditions

Detailed information

Show all related products

Description
Discussion

Product detailed description

Technical data AD003

Outputs / inputs

Analog output 4 ... 20 mA

IO-Link Yes

Electrical data

Operating voltage 18 ... 30 V DC

DC voltage

Current carrying capacity max.50 mA

Current consumption max.30 mA

Mechanical data

Housing materials Polyamide (PA)

Connect the gold-plated M12 contacts

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max. +60°C

Degree of protection IP67

Further information

Function display Status display: LED, yellow
Operation: LED, green
7 segment LED: 4 digits, red/green parameterizable

CE approval
cULus

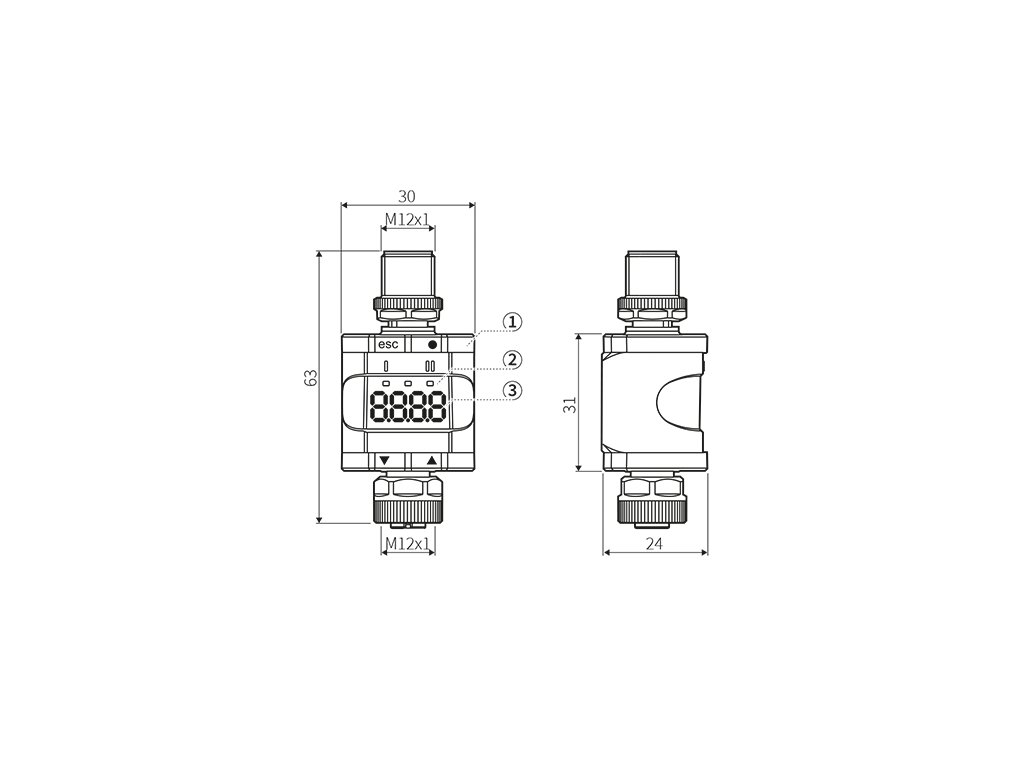

Dimensional drawing Legend 1 : Touch ring
2: LED
3: Display

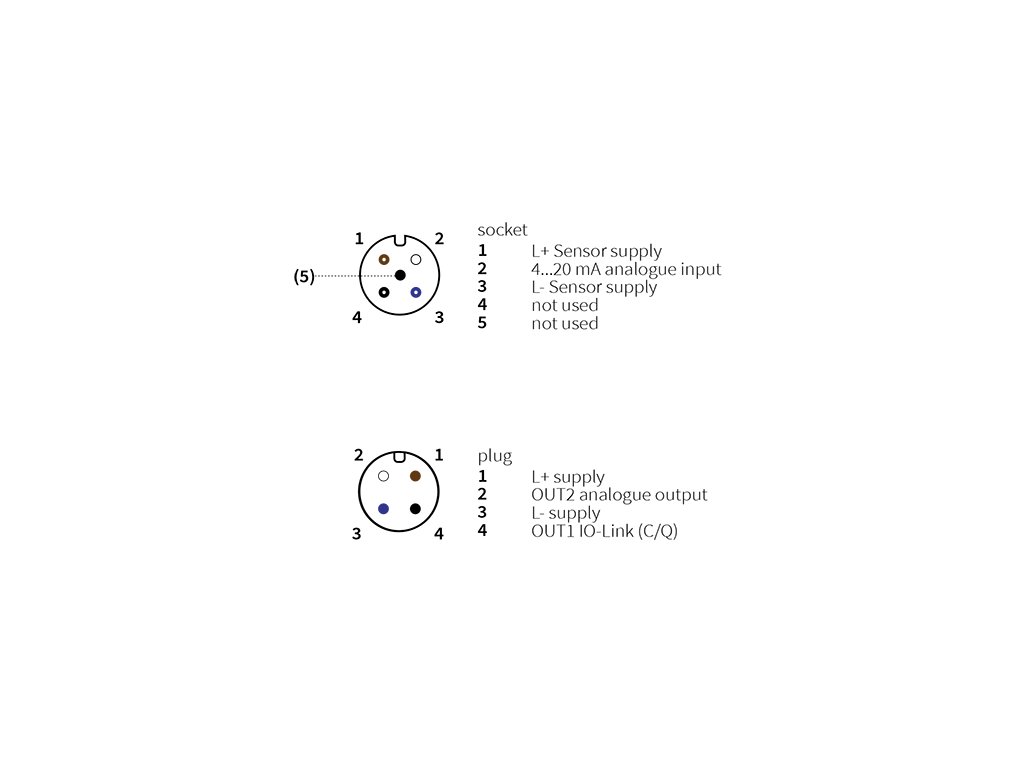

Connection and pin assignment

Additional parameters

Category:	Průmyslová automatizace
Warranty:	5 let
Weight:	0.2 kg
