    Home / Produkty / Vývěvy a vzduchovače / Příslušenství Vývěvy Dmychadla / Pojistný ventil 1"1/2 tlak 0 až 300 mbar pozice 2

    Pojistný ventil 1"1/2 tlak 0 až 300 mbar pozice 2

    Code: VL1.5AL
    Pojistný ventil 1"1/2 tlak 0 až 300 mbar pozice 2
    195 € / pcs 236 € incl. VAT 195 € / 1 pcs
    Skladem (2 pcs)
    Delivery to:
    07/04/2025

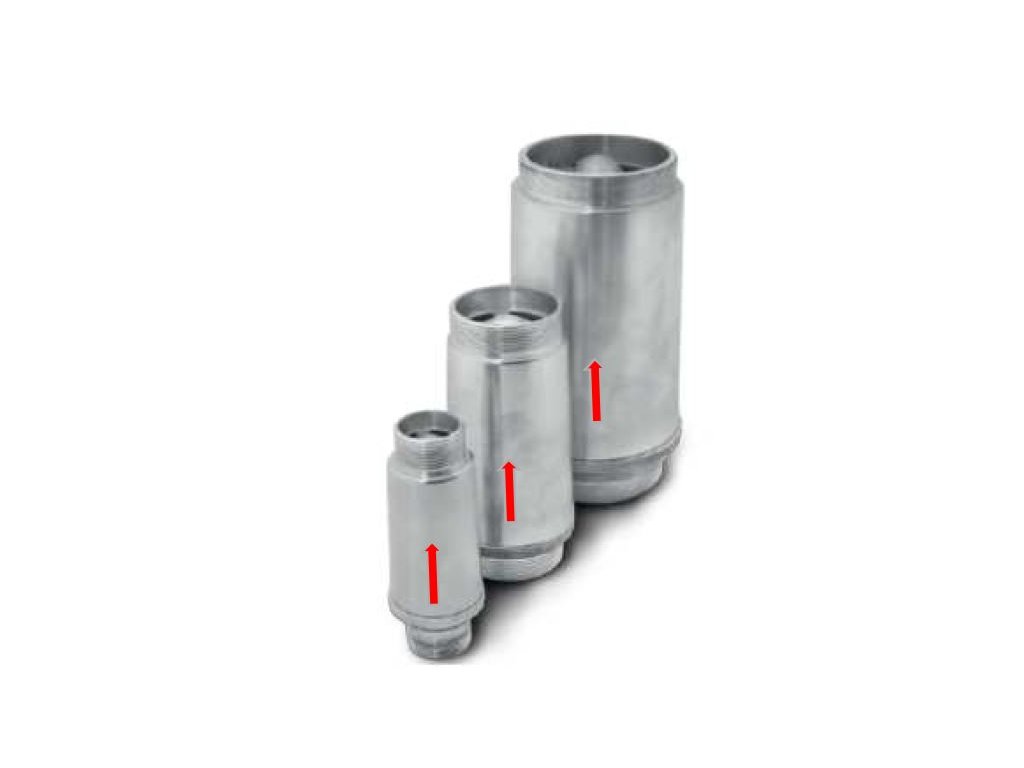

    Safety relief valve, position 2. The safety valve protects against the risk of overpressure at the blower and underpressure at the vacuum pump. Reduces the operating pressure to a fixed set point. The valve is installed on the inlet or outlet line. It is possible to set the desired pressure within the valve range.

    BLSV valves are used to limit the pressure or vacuum on blower and side channel pumps. When pressure or vacuum is reached, the valve opens and prevents the blower design limit from being exceeded when the blower internals are connected to the atmosphere. Depending on the design of the equipment, the discharge connection can be opened directly to the atmosphere or directed into the discharge pipe.Pressure acting on the spring-loaded cap. The valve starts to open when the air pressure overcomes the spring force. When the pressure drops below the set pressure, the valve closes.

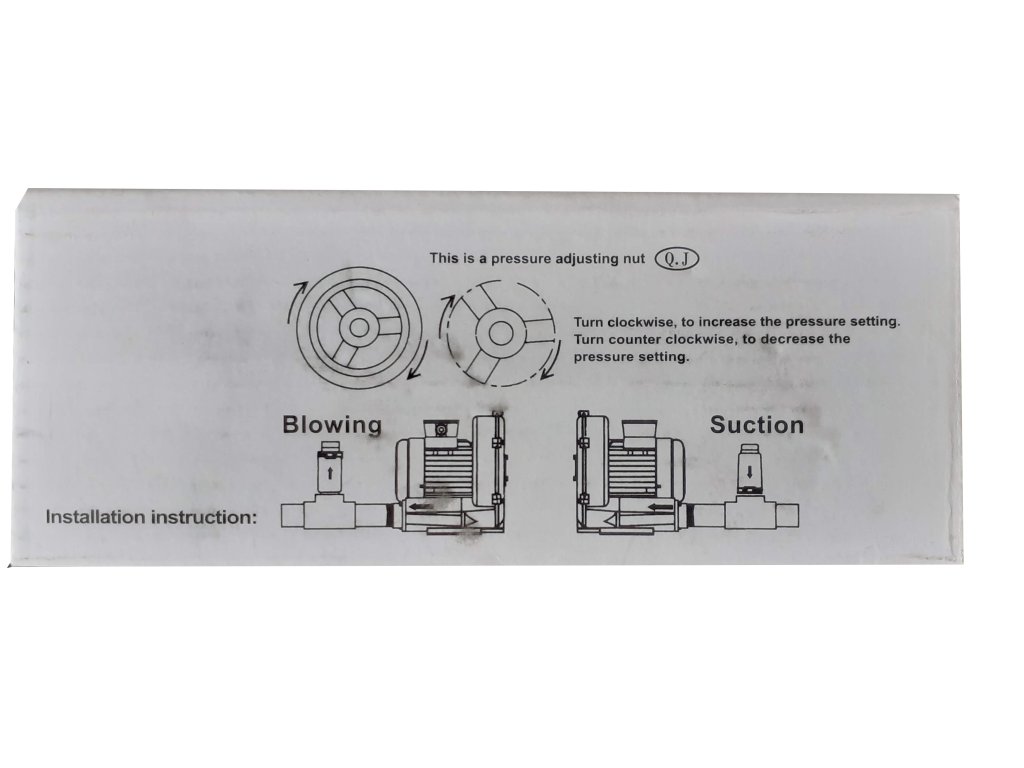

    VALVE CALIBRATION:
    Using an inline gauge/vacuum gauge:
    1 - Turn on the fan.
    2 - Gradually close the inlet until the maximum operating point of the blower (mbar), at which point the valve must complete opening and maintain a constant pressure.

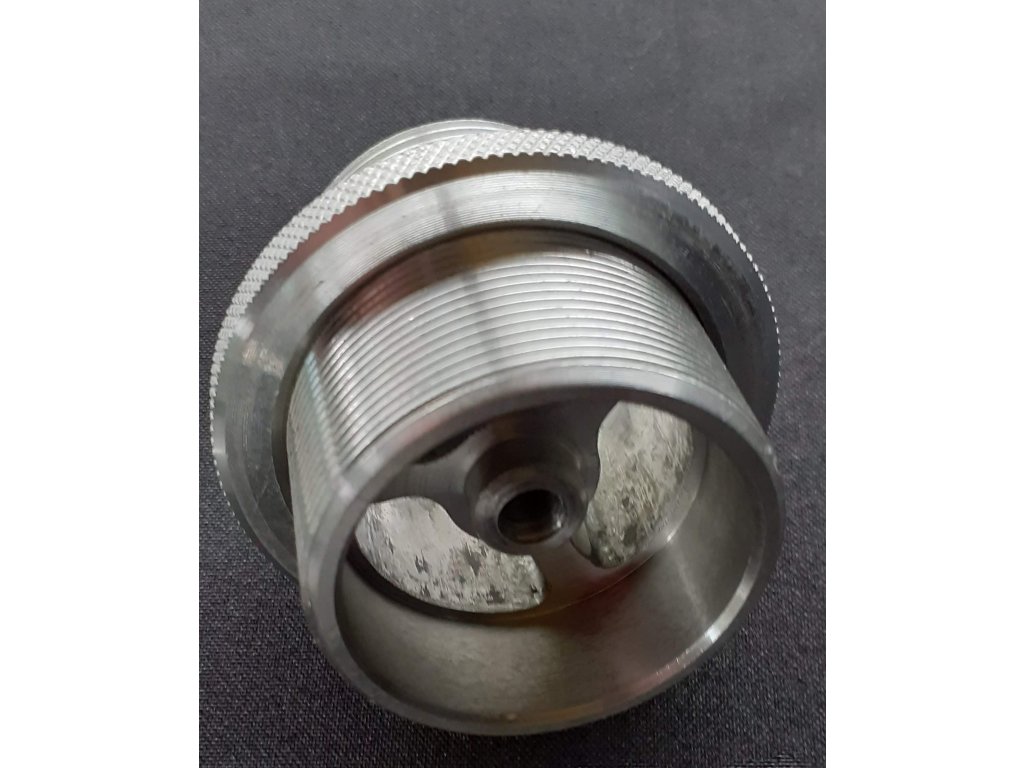

    3 - Unscrew the circular nut and adjust the valve. Once you have reached the correct position, fasten the ring nut.


    Alternatively
    Using a clamp meter:
    1 - Turn on the fan.
    2 - Gradually close the inlet until the maximum operating point of the blower (Amp), at which point the valve must complete opening and maintain a constant pressure.
    3 - Unscrew the circular nut and adjust the valve. Once you have reached the correct position, fasten the ring nut.

    Detailed information

    Related products

    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 60 m3/hod, max. 100 mbar, -100 mbar 1 channel, 0,25 kW, 230V 1-fáze
    Dodací termín 1 až 2 pracovní týdny
    618 € incl. VAT
    510 €

    Single-stage pump, which can also be used as an air blower max. 60 m3/hr, max. 100 mbar, -100 mbar 1 channel, 0,25 kW, 230V 1-phase. For the safe operation of the pump-blower,...

    Code: ESC101M0.2
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 70 m3/hod, max. 120 mbar, -110 mbar 1 channel, 0,25 kW, 400V 3-fáze
    Skladem (1 pcs)
    533 € incl. VAT
    440 €

    Single-stage pump, which can also be used as an air blower max. 70 m3/hr, max. 120 mbar, -110 mbar 1 channel, 0,25 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC101T0.2-IE3
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 80 m3/hod, max. 110 mbar, -110 mbar 1 channel, 0,4 kW, 230V 1-fáze
    Dodací termín 1 až 2 pracovní týdny
    739 € incl. VAT
    611 €

    Single-stage pump, which can also be used as an air blower max. 80 m3/hr, max. 110 mbar, -110 mbar 1 channel, 0,4 kW, 230 V 1-phase. For the safe operation of the pump-blower,...

    Code: ESC201M0.4
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 80 m3/hod, max. 130 mbar, -120 mbar 1 channel, 0,4 kW, 400V 3-fáze
    Dodací termín 1 až 2 pracovní týdny
    671 € incl. VAT
    555 €

    Single-stage pump, which can also be used as an air blower max. 80 m3/hr, max. 110 mbar, -110 mbar 1 channel, 0,4 kW, 400 V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC201T0.4-IE3
    Vývěva 531 Create Flow
    Vacuum pump - air conditioner max. 270 m3/hod, max. 120 mbar, -140 mbar 1 channel, 1,5 kW, 230V 1-fáze
    Dodací termín 1 až 2 pracovní týdny
    908 € incl. VAT
    750 €

    Single-stage pump, which can also be used as an air blower max. 270 m3/hr, max. 120 mbar, -140 mbar 1 channel, 1,5 kW, 230V 1-phase. For the safe operation of the pump-blower,...

    Code: ESC531M1.5
    Vývěva SEKO Create Flow
    Vacuum pump - air conditioner max. 145 m3/hod, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-fáze
    Dodací termín 1 až 2 pracovní týdny
    653 € incl. VAT
    540 €

    Single-stage pump, which can also be used as an air blower max. 145 m3/hr, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC401T0.85
    Vývěva ESC341T0.5 Create Flow
    Vývěva - vzduchovač max. 62 m3/hod, max. 250 mbar, -250 mbar 1 kanál, 0,55 kW, 400V 3-fáze
    Dodací termín 2 až 3 pracovní týdny
    827 € incl. VAT
    683 €

    Single-stage pump, which can also be used as an air blower max. 145 m3/hr, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC241M0.5
    Vývěva ESC341T0.5 Create Flow
    Vývěva - vzduchovač max. 62 m3/hod, max. 250 mbar, -250 mbar 1 kanál, 0,55 kW, 400V 3-fáze
    Dodací termín 2 až 3 pracovní týdny
    965 € incl. VAT
    797 €

    Single-stage pump, which can also be used as an air blower max. 145 m3/hr, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-phase. For the safe operation of the pump-blower,...

    Code: ESC341T0.81
    Show all related products Previous product Next product

    Product detailed description

    Accessories for Blower (BLOWERS)

    Dmychadlo BLOWERS SEKO Create FLow

    Vacuum accessories (EXHAUSTERS)Podtlakové dmychadlo SEKO Create FLow

    Pojistný ventil BLSV SEKO Create Flow

    Additional parameters

    Category: Příslušenství vývěvy Dmychadla
    Warranty: 2 roky vyjma dílů podléhající vysokému stupni opotřebení
    Weight: 2 kg
    Materiál: Hliník
    Tlak: 0 až 300 mbar
    ? Připojení vnější závit: 1"1/2 m
    Pozice: 2
