    Home / Produkty / Vývěvy a vzduchovače / Příslušenství Vývěvy Dmychadla / Membrane diffuser 12.5" EPDM, 3/4" M

    Membrane diffuser 12.5" EPDM, 3/4" M

    Code: BLDD12EN
    Brand: SEKO Spa
    Difuzor membránový SEKO Create Flow
    60 € / pcs 73 € incl. VAT 60 € / 1 pcs
    Dodací termín 3 až 4 pracovní týdny
    Delivery to:
    14/02/2025

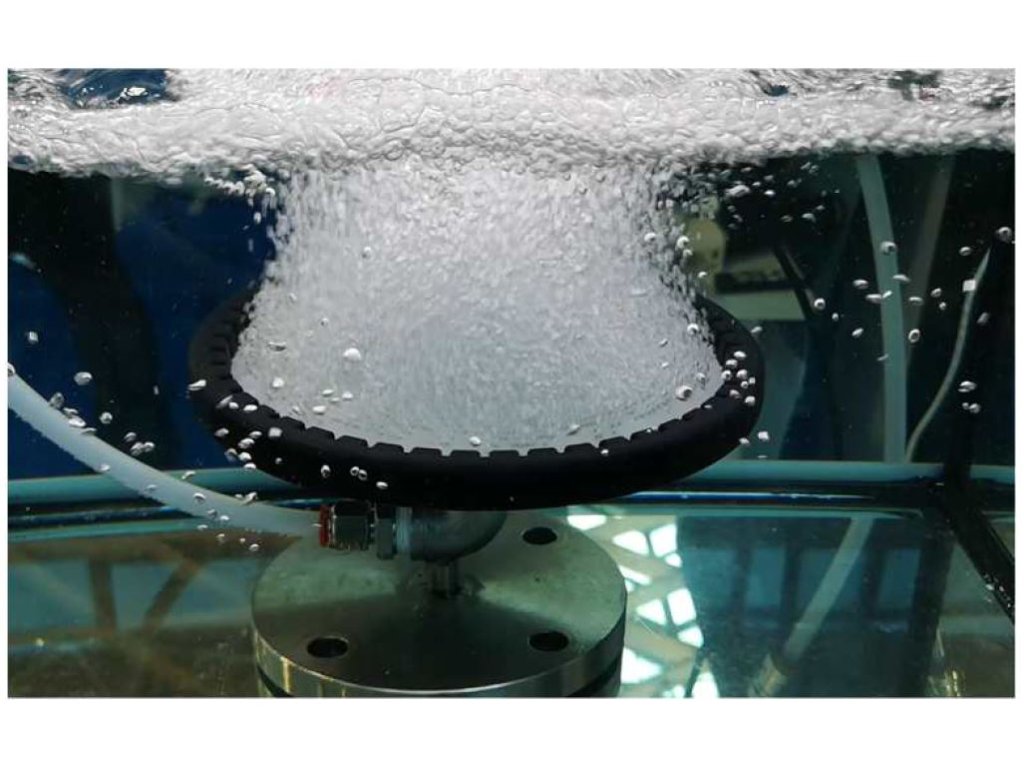

    Fine membrane diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of bubbles into a liquid (water). The material design of the membranes is EPDM. Diffusers are mounted on the discharge side. Air is driven under pressure through the micropipes in the diffuser. When the air supply is interrupted, the rubber material with micropipes closes and prevents liquid from entering the diffuser

    Detailed information

    Product detailed description

    The activated sludge process is the main stage of modern technology for wastewater treatment. The key is to ensure sufficient oxygen in the activated sludge process and to keep the slurry and solids in suspension.

    Membránový difuzor 12 SEKO Create FLow

    Difuzor membránový SEKO Create Flow

    Additional parameters

    Category: Příslušenství vývěvy Dmychadla
    Warranty: 6 měsíců
    Weight: 0.93 kg
    Materiál: Polypropylen 70% a 30% skleněné vlákno
    Materiál membrány: EPDM
    Průměr: 12,5"
    ? Připojení vnější závit: 3/4" M BSPP
    Umístění : Výtlak
    ATEX certifikát: NE
    Effective-Total Lenght: 340 -370 mm
    Efektivní oblast: 0,07 m2
    Množství : 2 až 12 m3
    Safety valve 1"1/4 pressure up to 300 mbar pozice 2
    Safety valve 1"1/4 pressure up to 300 mbar pozice 2
    Skladem (1 pcs)
    234 € incl. VAT
    193 €

    Safety relief valve, position 2. The safety valve protects against the risk of overpressure at the blower and underpressure at the vacuum pump. Reduces the operating pressure to...

    Code: VL1.2AL
    Podtlakový filtr SEKO pozice 4 Create Flow
    New
    Vacuum filter vacuum cleaners , connection 2", paper filter 5÷7 µm pos. 4
    Dodací termín 3 až 4 pracovní týdny
    538 € incl. VAT
    445 €

    Filter on the suction line of the vacuum pump to create vacuum, paper filter 5÷7, position 4. These filters are normally installed in the pump intake to protect it from dust and...

    Code: FC00008
    Safety valve 2" pressure 300 to 600 mbar pozice 2
    Safety valve 2" pressure 300 to 600 mbar pozice 2
    Přesný dodací termín na poptání (2 pcs)
    445 € incl. VAT
    367 €
    Detail

    Safety relief valve, position 2. The safety valve protects against the risk of overpressure at the blower and underpressure at the vacuum pump. Reduces the operating pressure to...

    Code: VL2.0AL
    Gumové nožičky pro dmychadlo BLOWERS SEKO BLAV pozice 13 Create FLow
    Rubber feet for blowers 08, pos. 13
    Dodací termín 3 až 4 pracovní týdny
    22 € incl. VAT
    18 €

    Set of rubber feet for horizontal mounting of the blower. Set contains 4 pieces.

    Code: BLAV08
    Příslušenství dmychadla SEKO Create FLow
    Filter for Blower 2", pos. 5
    Dodací termín 1 až 2 pracovní týdny
    280 € incl. VAT
    231 €

    Filter for Blower 2", pos. 5 These filters are commonly installed on the suction side of side channel blowers and compressors to protect them from dust and solids that could...

    Code: FCM70009
    Trubkový dufuzér SEKO Create Flow
    Tubular diffuser 300-350 mm, EPDM, 3/4" M
    Dodací termín 3 až 4 pracovní týdny
    119 € incl. VAT
    98 €

    Fine tube diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of...

    Code: BLTD03EN
    Příslušenství dmychadla SEKO Create FLow
    Filter for Blower 1"1/2, pos. 5
    Dodací termín 1 až 2 pracovní týdny
    233 € incl. VAT
    193 €

    Filter for Blower 1"1/2, pos. 5 These filters are commonly installed on the suction side of side channel blowers and compressors to protect them from dust and solids that could...

    Code: FCM70008
    Difuzor Silikonová membrána SEKO Create Flow
    Membrane diffuser 9" Silicone, 3/4" M
    Dodací termín 3 až 4 pracovní týdny
    91 € incl. VAT
    75 €

    Fine membrane diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of...

    Code: BLDD09SN
    Vnitří filtr SEKO sání pozice 9 Create FLow
    Filter for Blower 1"1/4, 100 µm, pos. 9
    Dodací termín 3 až 4 pracovní týdny
    102 € incl. VAT
    85 €

    Filter for Blower 1"1/4, 100 µm, pos. 9

    Code: BLIF032ZP100
    Trubkový dufuzér SEKO Create Flow
    Tubular diffuser 500-550 mm, EPDM, 3/4" M
    Dodací termín 3 až 4 pracovní týdny
    131 € incl. VAT
    108 €

    Fine tube diffusers are used in wastewater treatment, sludge aeration, drinking water treatment, fish farming, aquarium farming, etc. It is the discharge and dispersion of...

    Code: BLTD05EN
    Příslušenství dmychadla SEKO Create FLow
    Filter for Blower 2" 1/2
    Dodací termín 1 až 2 pracovní týdny
    333 € incl. VAT
    276 €

    Filter for Blower 2" 1/2, pos. 5 These filters are commonly installed on the suction side of side channel blowers and compressors to protect them from dust and solids that could...

    Code: FCM70010
    Dmychadlo BLOWERS SEKO BLKC PN pozice 6 Nipple PVC Create FLow
    Nipl 2" external thread, PVC 90 mm - teat, poz.6
    Dodací termín 3 až 4 pracovní týdny
    157 € incl. VAT
    130 €

    PVC plastic nipple, pos. 6

    Code: BLKC050PN
    Safety valve 4" pressure up to 300 mbar pozice 2
    Safety valve 4" pressure up to 300 mbar pozice 2
    Dodací termín 3 až 4 pracovní týdny
    741 € incl. VAT
    612 €

    Safety relief valve, position 2. The safety valve protects against the risk of overpressure at the blower and underpressure at the vacuum pump. Reduces the operating pressure to...

    Code: VL4.0AL
    Zpětká klapka pozice 12 SEKO Create Flow
    Brass check valve 1"1/4 pozice 12
    Dodací termín 3 až 4 pracovní týdny
    93 € incl. VAT
    77 €

    It is used to prevent backflow, especially during the start and stop of the blower. Flap pos.12 must be installed at the outlet.

    Code: BLCV032BR
    Podtlakový ventil Blower BLRV52 SEKO Create Flow
    Vacuum check valve 5w 2p
    Dodací termín 3 až 4 pracovní týdny
    2 489 € incl. VAT
    2 057 €

    The valve functions as a double vacuum/vacuum breaker with a central common threaded connection, pneumatically actuated by a double acting cylinder; thus it has 2 flat ports, 3...

    Code: BLRV52
    Zpětká klapka pozice 12 SEKO Create Flow
    Brass check valve 2" pozice 12
    Dodací termín 3 až 4 pracovní týdny
    249 € incl. VAT
    206 €

    It is used to prevent backflow, especially during the start and stop of the blower. Flap pos.12 must be installed at the outlet.

    Code: BLCV050BR
