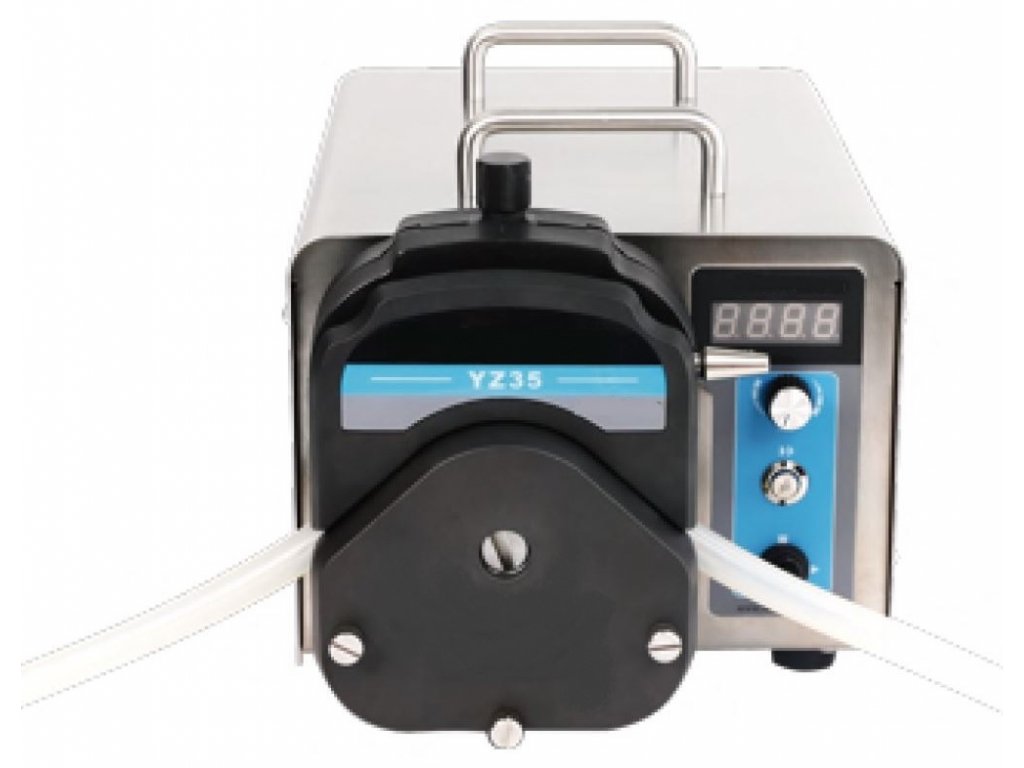

Industrially pump WG600S with regulation 400 to 13000 ml/min, 1 channel

Code: WG600SYZ35
2 226 € / pcs 2 694 € incl. VAT 2 226 € / 1 pcs
Dodací termín 2 až 3 pracovní týdny
Delivery to:
27/01/2025

The WT600S variable speed peristaltic pump uses a DC brushless motor drive, which is high torque, maintenance-free, more powerful, can cascade multiple pump heads. It has basic functions such as reversible direction, start/stop, full speed, quick clean and speed adjustment. Control start/stop, reversible direction, adjust speed with external analogue quality and add a time dosing function. RS485 communication, MODBUS protocol is available, easy to connect other devices such as computer, man-machine interface, PLC.

Detailed information

Product detailed description

- A four-digit LED displays speed and operating mode.

- The LED indicator shows the operating status.

- Membrane keyboard.

- More torque, maintenance free, more powerful.

- Reversible direction, start/stop control and adjustable speed.

- Timed dosing mode: set the duration of each dose. The pump dispenses once by pressing the DISPENSE button.

- High-torque brushless drive for multi-pump head operation.

- 1% precise rotation speed control with 1 rpm speed resolution.

- An external logic level signal can control the start/stop, direction and dosing function, and an external analog signal can adjust the rotation speed. The signal is optically isolated.

- With RS485 MODBUS interface, easy control by external device.

- Inner two-storey insulation structure, the perimeter plate with conformal coating is dust and moisture resistant.

- Anti-electromagnetic interference function, wide input voltage range for complex power environment.

- Stainless steel housing, easy cleaning, corrosion resistance to acids, alkalis, sodium and organic solvents

Laboratorní_hadicové_čerpadlo_WG600_Create_Flow

The above table is for information only. The values shown in the table are obtained by pumping water in a normal environment, at normal pressure and temperature with a silicone hose.

Laboratorní_hadicové_čerpadlo_WG600_rozmer_Create_Flow

Additional parameters

Category: Laboratory peristaltic pumps
Warranty: 2 roky vyjma dílů podléhající vysokému stupni opotřebení
Weight: 13 kg
? Výkon: 400 až 13000 ml/min
Rozsah otáček: 30 až 600 ot/min
Plynulost regulace: 0,1 ot/min
Počet hadiček: 1
? Velikost hadičky : 73# 82#
Regulace: Manuální
? Externí ovládání: analog 0-5V control speed, 0-10V, 4-
Napájení: 1-f 240V, 300W
Rozměr: 356 mm×235 mm×225 mm (L x W x H)
Hmotnost: 13 kg
Provozní teplota: 0 až +40°C
Max. vlhkost: <80%
Krytí: IP31
