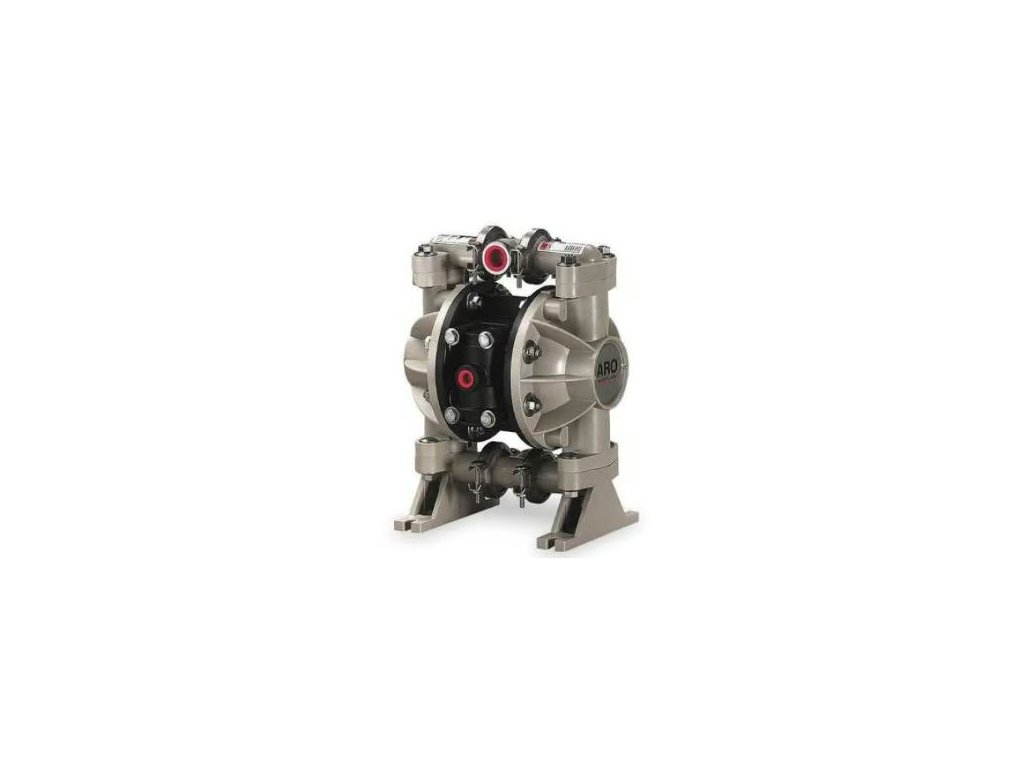

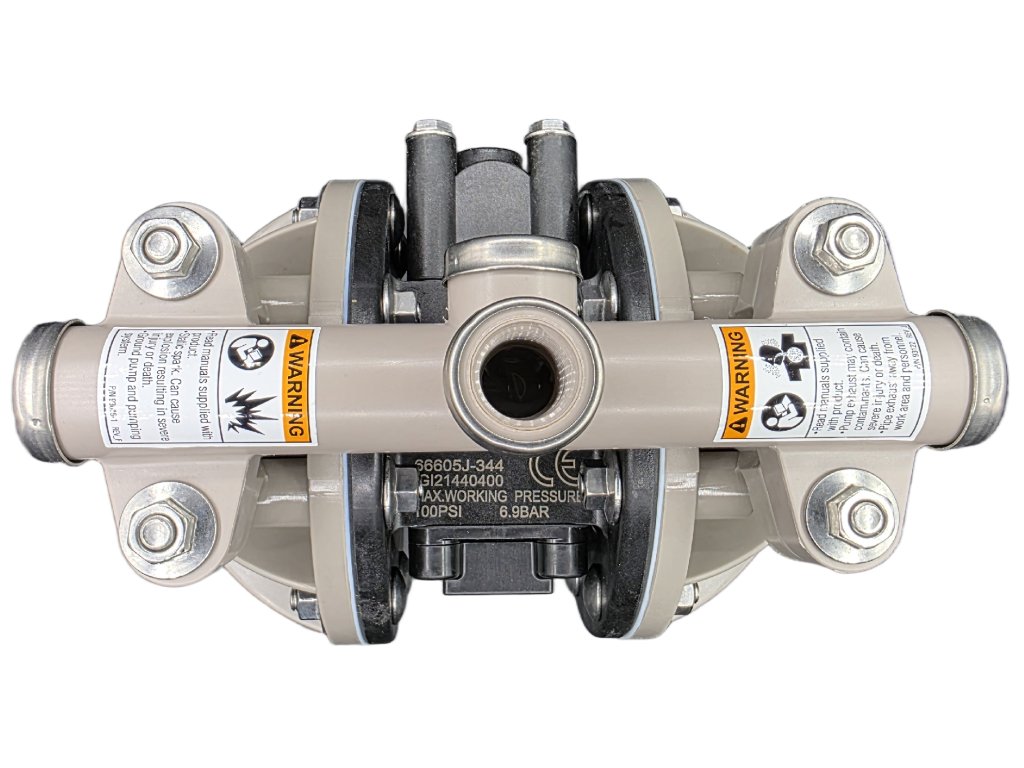

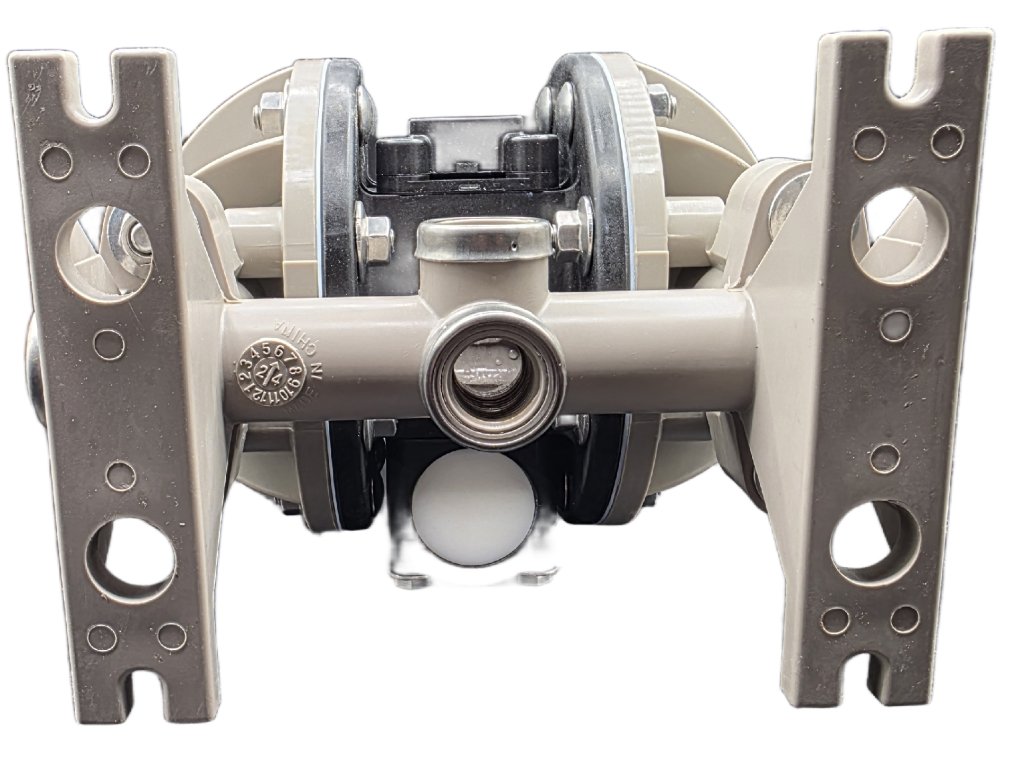

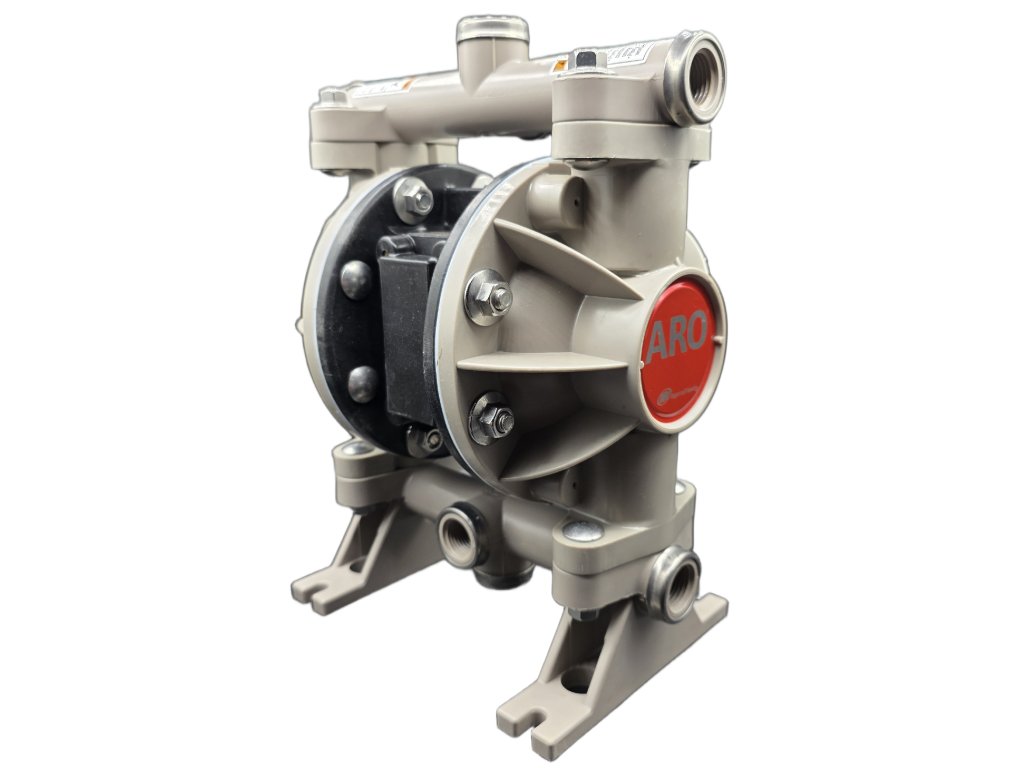

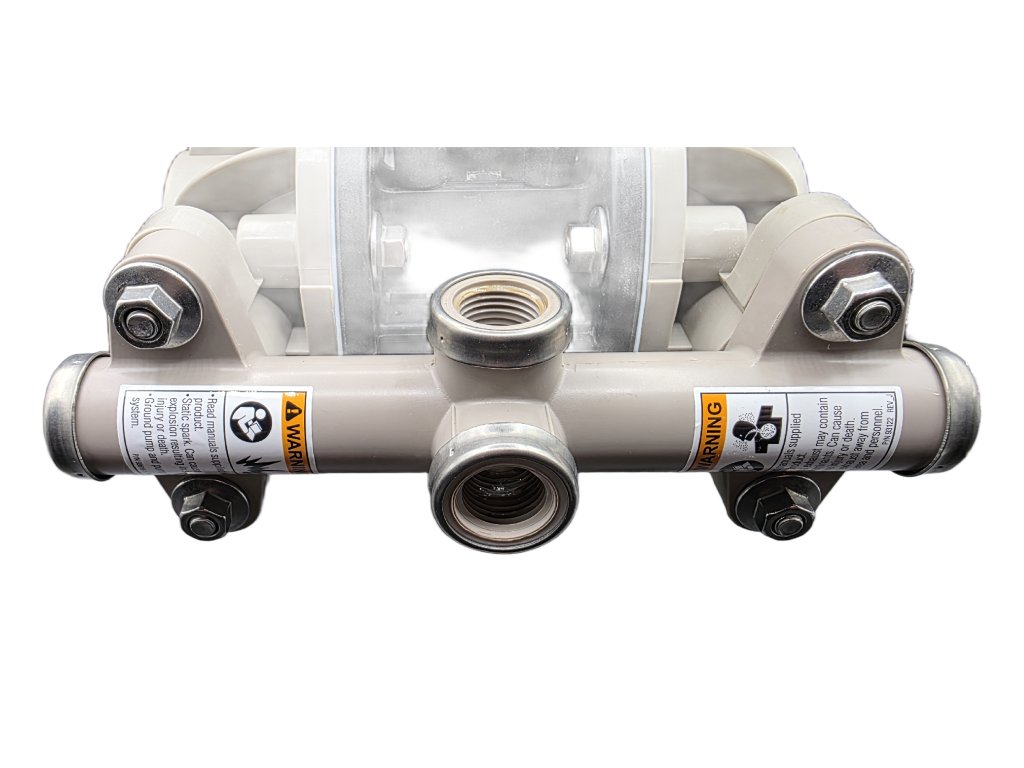

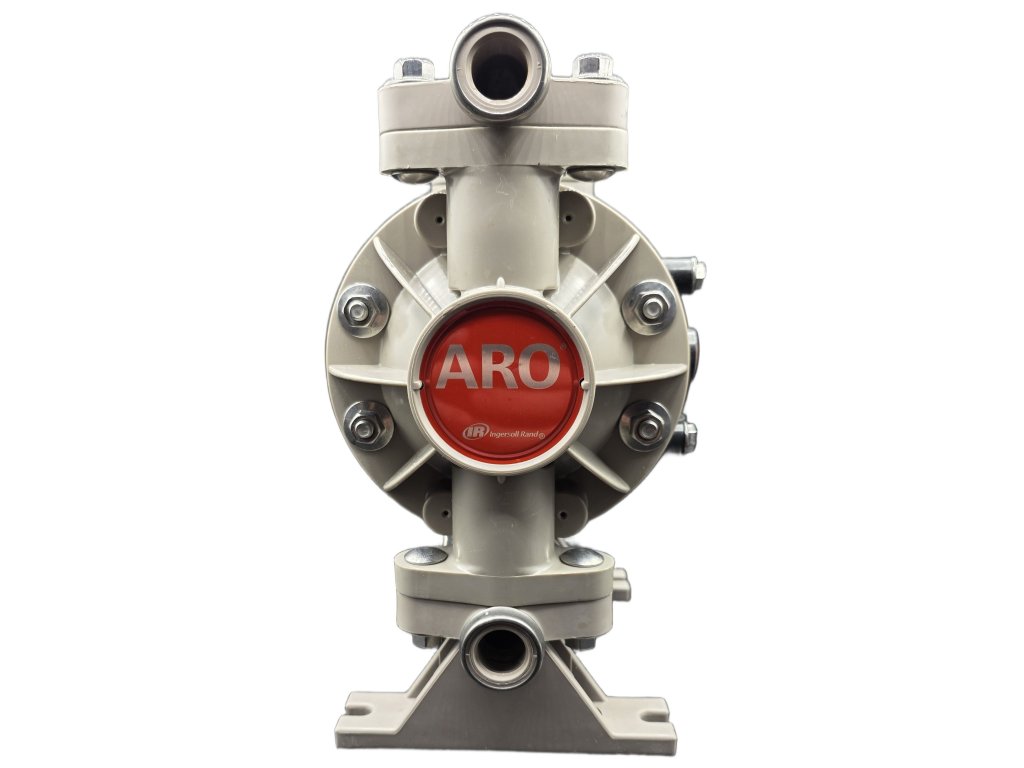

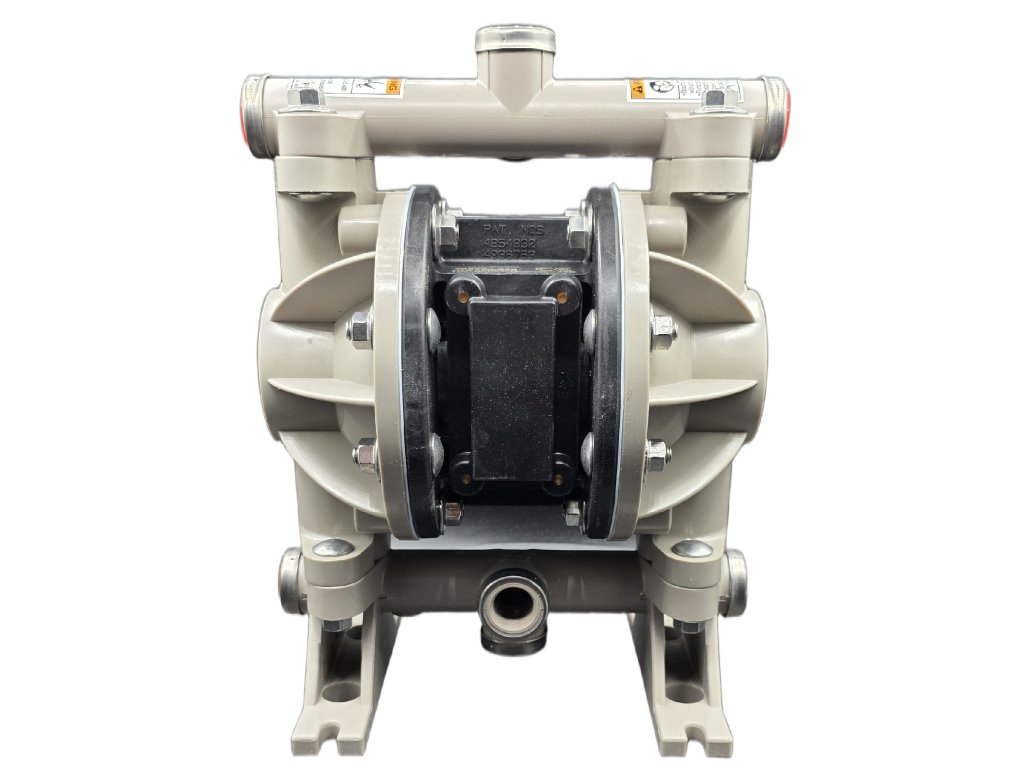

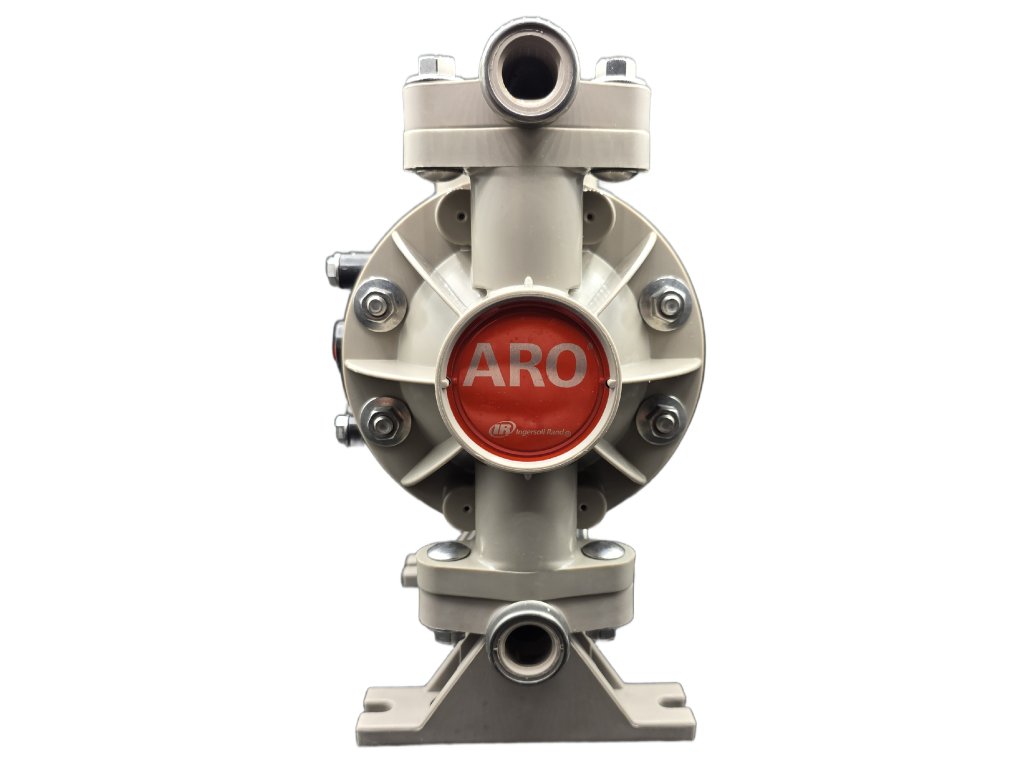

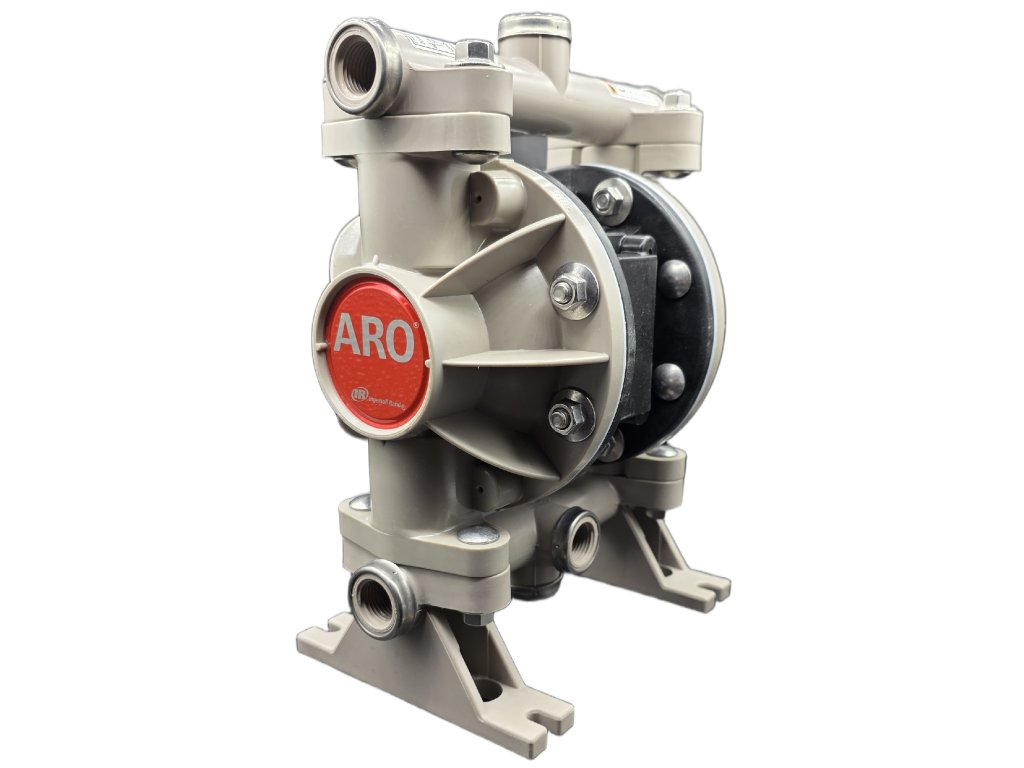

Membránové čerpadlo ARO 1/2" Polypropylen/Nitril(Buna-), Výkon 49,2 l/min, výtlak 6,9 bar
Code: 666053-322Related products

ARO, air service kit, PD10. The service kit includes positions 111, 132, 137, 138, 139, 166, 167, 171, 172, 173, 174, 176, 200,

Santoprene diaphragm for pump ARO PD10, pos. 7

ARO, air service kit, PD03/05/07


Santoprene wheel for pump ARO PD05P, pos. 22


Santoprene diaphragm for air control PD10, pos. 176. For the pump it is necessary to use 2 diaphragms.

Set (4 pcs ) replacement O-rings, pos. 33, 93762 for pump ARO. Item "33" "O" rings are not used on models 66605H-XXX, 66605J-XXX and 66605K-XXX.

Air silencer ARO, pos. 201

Air steering service kits ARO PD05 66605X-XXX. Service kit positions: 102, 119, 122, 130, 132, 137, 138, 139, 140, 141 and lubricant.


ARO, air service kit, for pump ARO 1" -1 1/2" (PRO)

Santoprene diaphragm for pump ARO PD05P

Santoprene diaphragm for pump ARO PD05P

Hytrel diaphragm for pump ARO 6605 XXXXX

ARO, valve seat, PP, pos. 21
Product detailed description
Additional parameters
Category: | ARO diaphragm pump |
---|---|
Warranty: | 1 rok vyjma dílů podléhajícímu vysokému stupni opotřebení |
Weight: | 4 kg |
Řada : | ARO |
Materiál tělesa čerpadla: | Polypropylen |
Materiál sedel čerpadla: | Polypropylen |
Materiál kuliček čerpadla: | Santopren |
Materiál membrán čerpadla: | Santopren |

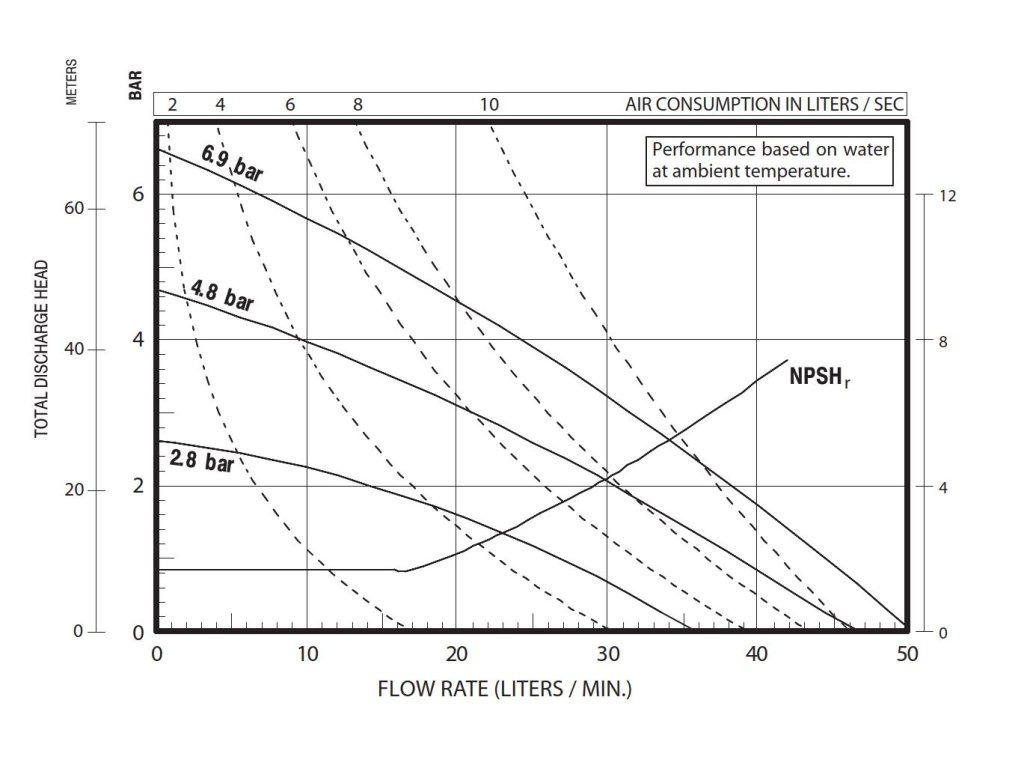

Max. výkon: | 49,2 l/min |
Max. výtlak: | 6,9 bar |
pH: | 2 až 14 |
? Samonasávací schopnost: | -2,6 m |
Max. teplota média: | +2° až +66°C |
Max. velikost pevných částic: | max. 2,4 mm |
Připojení sání/výtlak: | Vnitřní závit 1/2" BSPT |
Pohon: | Stlačený vzduch max. 6,9 bar |
Připojení vzduch: | Vnitřní závit 1/4" |
ATEX: | NE |
