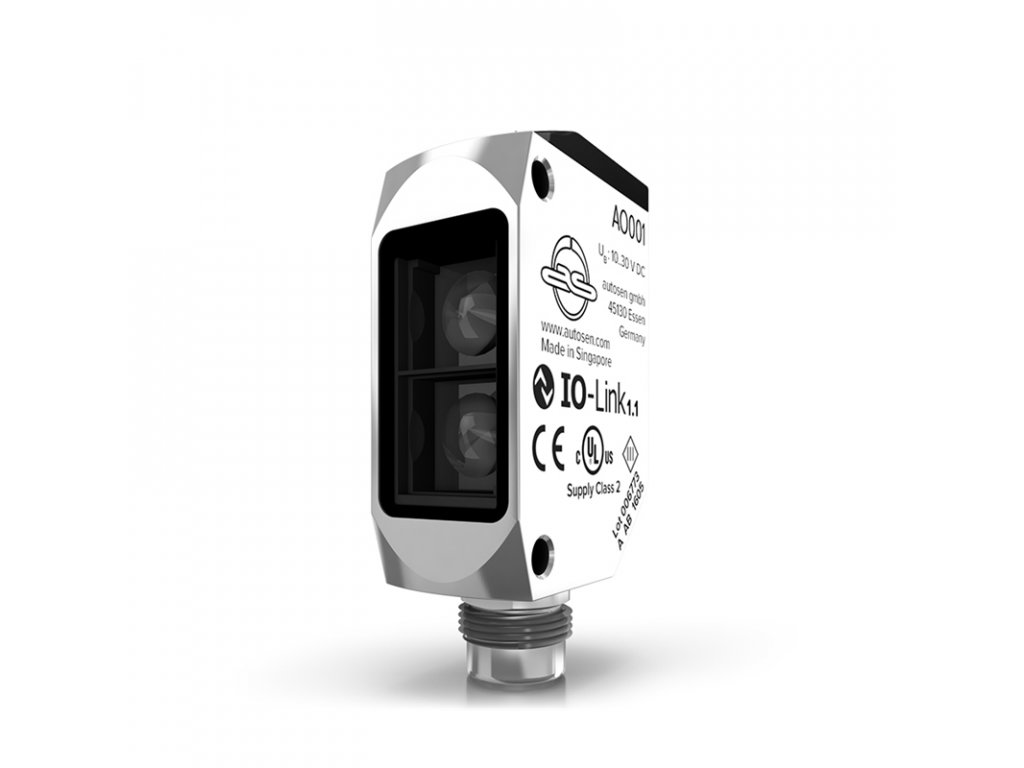

Optical sensor stainless steel IP69K AO001

Code: AO001

141 € / pcs 170 € incl. VAT 141 € / 1 pcs

Delivery to: 17/04/2025

IO-Link interface
Diffuse reflection sensor with background suppression
Can be used in hygienic and wet areas

Best optical performance in standard applications - even in humid environments and in the food industry. The light scanner contains transmitting and receiving modules in a compact stainless steel housing. The emitted red light is reflected on the object to be detected and evaluated by the integrated sensor receiver. Thus, direct detection is provided without additional tools and accessories. Thanks to its robust stainless steel housing, it has IP65, IP67, IP68 and IP69K test ratings and can therefore be used in standard applications as well as in the food industry and in wet areas. The strength of the diffuse reflection sensor lies mainly in the interference-free suppression of the background, even with highly reflective backgrounds.

AO001 is also available as AO024 in a plastic housing with a lower IP67 rating and without IO-Link

Additional technical characteristics and corresponding accessories (sensor cable AA009, AA010, AA011, AA012 for standard applications, sensor cables AA013, AA014, AA015, AA016 for wet and food applications, handle AA907).

Reflective light sensor

Diffuse reflection sensors are used for direct object detection. The transmitter and receiver are housed in an enclosure. The transmitter emits light that is reflected from the object to be detected and recognized by the internal receiver.

Detailed information

Show all related products

Product detailed description

Technical data AO001

General information

Switching distance 2 ... 200 mm

Note* Based on white paper 200x200 mm, 90% remission

Background suppression Yes

Switching frequency 1000 Hz

Diffuse reflection sensor

Light type red light

Outputs / inputs

Output light/dark switching programmable

IO-Link Yes

Electrical data

Short circuit protection Yes

Operating voltage 10 ... 30 V DC power class 2 cULus

Surge protection Yes

Overload Yes

DC voltage

Electric PNP version

Current carrying capacity max.100 mA

Voltage drop max.2.5 V

Protection class III

Current consumption max.20 mA

Mechanical data

Material active surface PMMA

Enter the cuboid command

Material housing V4A (1.4404)
PPSU

Connect gold-plated M8 contacts with 4-pin contacts

accuracy

Bright spot diameter 8 mm at max. Range mm

Accuracy 2 ... 15 mm; depending on colour object and object/background distance

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.80°C

Degree of protection IP65/IP67/IP68/IP69k

Further information

MTTF708

Function display Switching status: LED, yellow
Operation: LED, green

Accessories included No accessories

EMC testing DIN EN 60947-5-2

CE approval
cULus

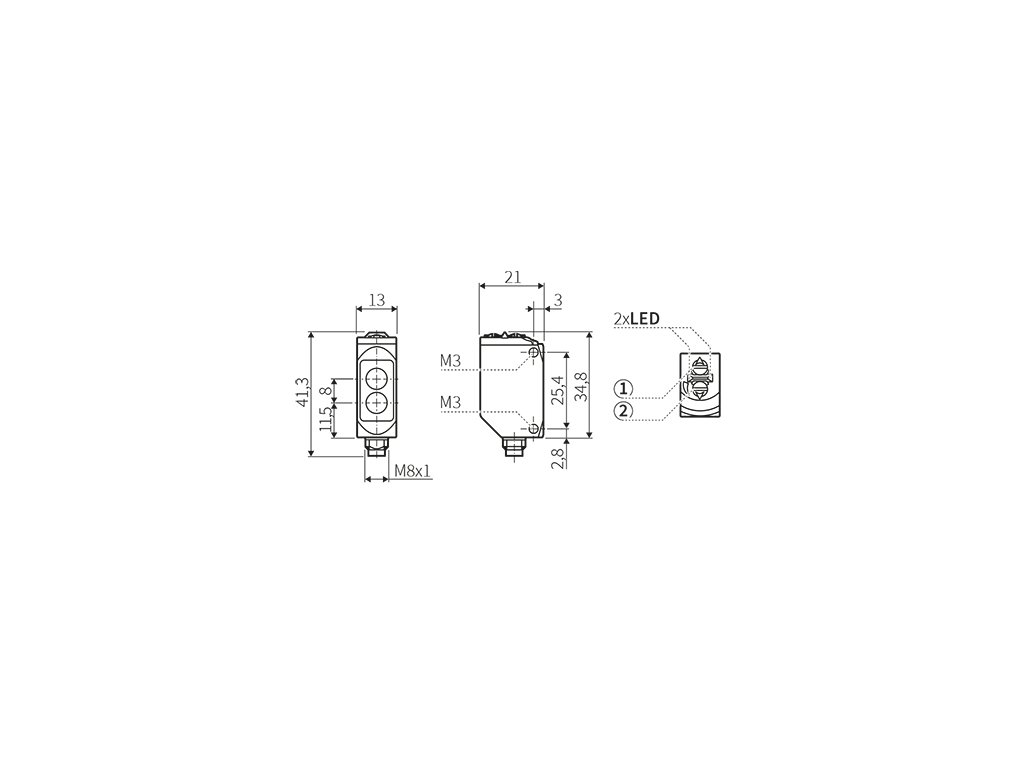

Dimensional drawing Legend 1 : Output functions
2: Potentiometer sensitivity

precision curve

Accuracy curve Legend x : Distance sensor / object [mm]
y: Object / background minimum distance [mm]
a: Sensor
b: Object
c: Background

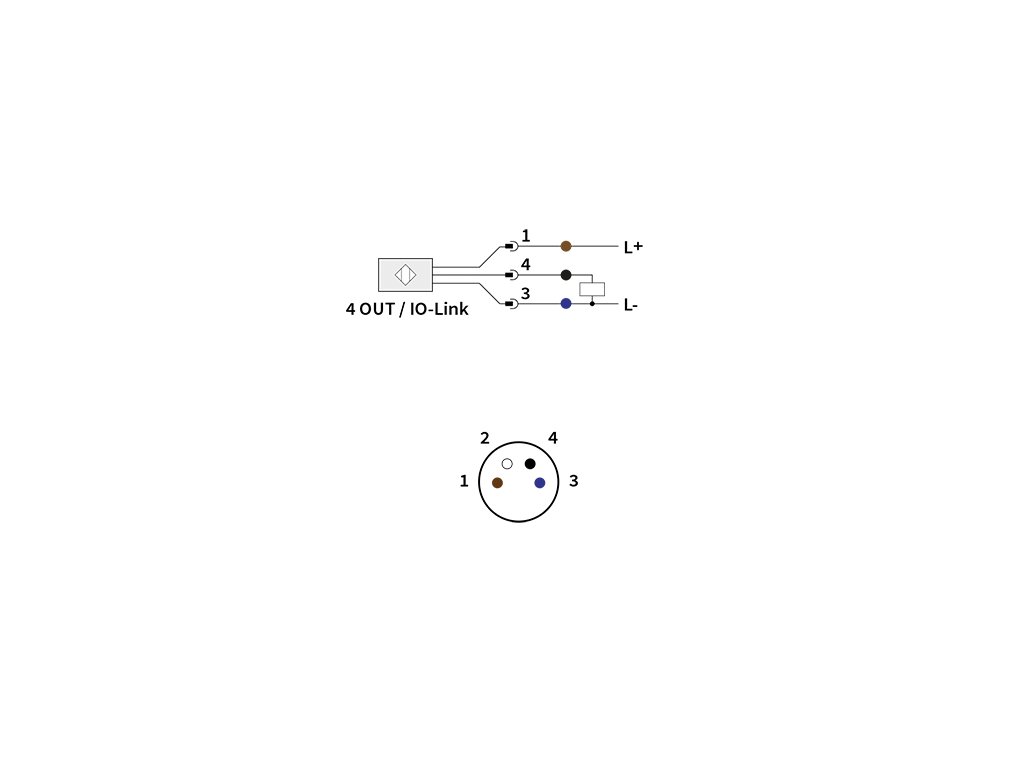

Connection and pin assignment

Additional parameters

Category:	Laserové snímače
Warranty:	5 let
Weight:	0.2 kg
