Optical sensor with PA cover AO024

Code: AO024

90 € / pcs 109 € incl. VAT 90 € / 1 pcs

Delivery to: 13/01/2025

Degree of protection IP 65 | IP67
Diffuse reflection sensor with background suppression
High quality plastic housing

The AO024 reflective sensor features a particularly compact cubic design and excellent background suppression without interference, which works reliably even with highly reflective backgrounds. It is particularly suitable for applications with limited space

The AO024 is intuitively set up with a potentiometer - light and dark switching is selected with a rotary switch. This reduces time and costs during commissioning. Regardless of the color of the object to be detected, the AO024 has a very long range of 2 ... 200 mm. With M8 connector

AO024 is also available as AO001 ina stainless steel housing with IP69K protection and suitable for hygienic and wet areas

A detailed datasheet for the AO024 and suitable accessories can be found below.

Reflective light sensor

Diffuse reflection sensors are used for direct object detection. The transmitter and receiver are housed in an enclosure. The transmitter emits light that is reflected from the object to be detected and recognized by the internal receiver.

Detailed information

Show all related products

Product detailed description

Technical data AO024

General information

Switching distance 2 ... 200 mm

Note* Based on white paper 200x200 mm, 90% remission

Background suppression Yes

Switching frequency 1000 Hz

Diffuse reflection sensor

Light type red light

Outputs / inputs

Output light/dark switching programmable

IO-Linkch.

Electrical data

Short circuit protection Yes

Operating voltage 10 ... 30 V DC power class 2 cULus

Surge protection Yes

Overload Yes

DC voltage

Electric PNP version

Current carrying capacity max.100 mA

Voltage drop max.2.5 V

Protection class III

Current consumption Max.22 mA

Mechanical data

Material active surface PMMA

Material brass steel

EPDM gasket material

Material with brass external thread

Enter the cuboid command

PPSU material housing

Plug M8 4-pin

accuracy

Bright spot diameter 8 mm at max. Range mm

Accuracy 2 ... 15 mm; depending on colour object and object/background distance

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.60°C

Degree of protection IP65/IP67

Further information

MTTF683

Function display Switching status: LED, yellow
Operation: LED, green

Accessories includedBez accessories

EMC testing DIN EN 60947-5-2

ApprovalCE
cULus

Dimensional drawing Legend 1 : Output functions
2: Potentiometer sensitivity

precision curve

Accuracy curve legend x : distance sensor / object [mm]
y: Minimum object / background distance [mm]
1: object black (6% remission), background (white 90% remission)
2: Object gray (18% reflectance) background (white 90% draw)
3: Object white (90% draw), background (white 90% draw)

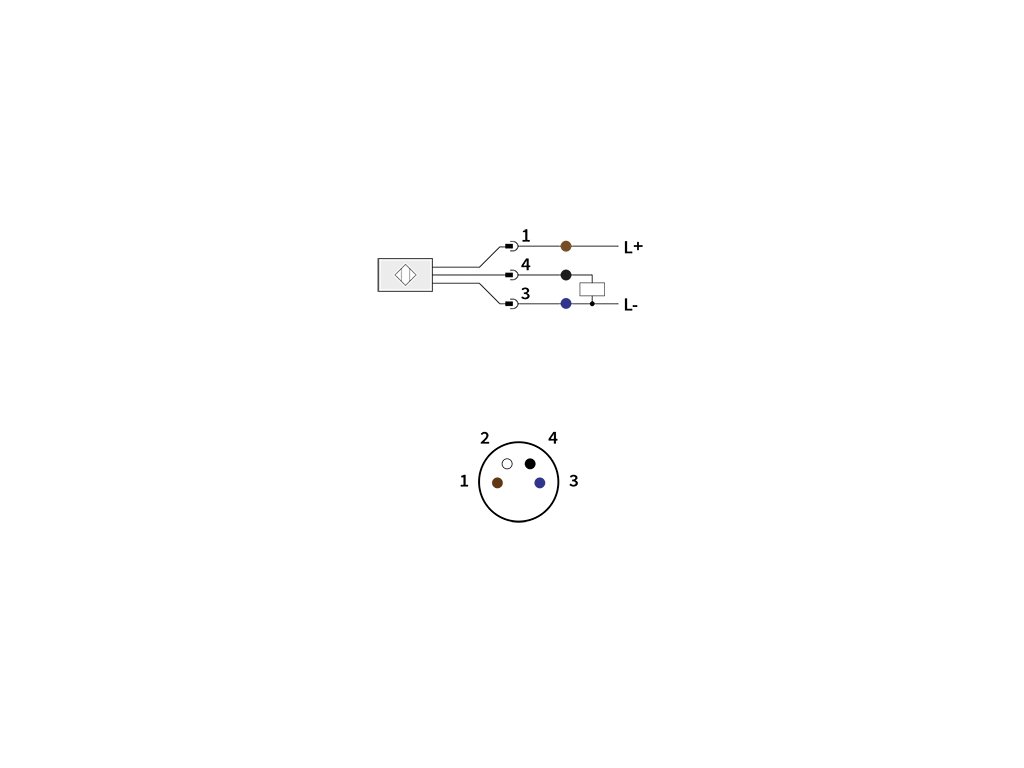

Connection and pin assignment
