Mini optical sensor with PA cover AO017

Code: AO017

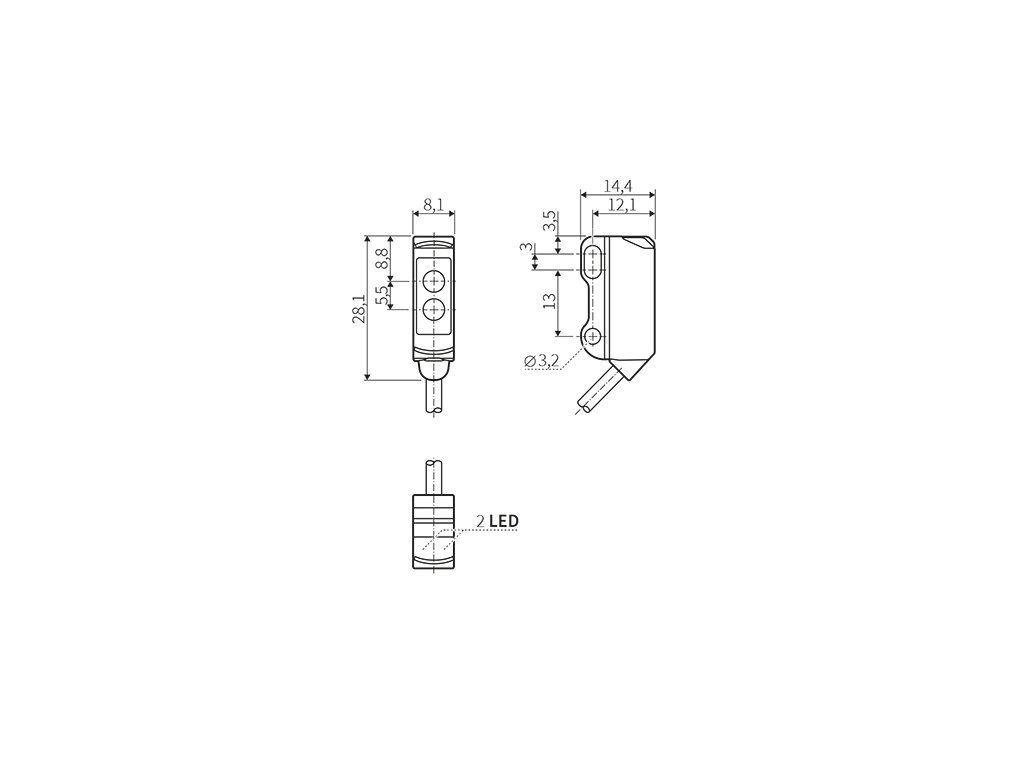

ao017 Mini optický snímač s krytem PA drawing

144 € / pcs 174 € incl. VAT 144 € / 1 pcs

Delivery to: 13/02/2025

Visible red light for easy adjustment
Diffuse reflection sensor with background suppression
Degree of protection IP 65 | IP67

Light-switching diffuse reflection sensor with cable and precise background suppression. The red light is suitable for reliable position detection of particularly small flat or mirrored objects. The sensing range is from 3 mm to 15 mm and can be adjusted. The reflective light sensor supports IO-Link via AD001 with corresponding software that is parameterized.

With the optical button, the transmitter and receiver are in the same housing. The compact design is particularly suitable for tight installation conditions. Installation is very easy, a 30 cm long PVC cable connects the M8 plug to the device. The IP67 rating allows operation in harsh environments.

Reflective light sensor

Diffuse reflection sensors are used for direct object detection. The transmitter and receiver are housed in an enclosure. The transmitter emits light that is reflected from the object to be detected and recognized by the internal receiver.

Detailed information

Show all related products

Product detailed description

Technical data AO017

General information

Switching distance 3 ... 15 mm *

Comment*(white paper 200 x 200 mm) Switching distance adjustable to 10 ... 80 mm via IO-Link

Background suppression Yes

Switching frequency 1000 Hz

Diffuse reflection sensor

Light type red light

Outputs / inputs

Output light switching

IO-Link Yes

Electrical data

Short circuit protection Yes

Operating voltage 10 ... 30 V DC

Surge protection Yes

DC voltage

Electric PNP version

Current carrying capacity max.100 mA

Voltage drop max.2.5 V

Protection class III

Current consumption max.20 mA

Mechanical data

Material active surface PMMA

Enter the cuboid command

Material housing V4A (1.4404)

M8 plug
Gold plated 4-pin contacts with pigtail

accuracy

spot diameter(at max. Sensing distance) 4 mm

Accuracy<± 0.5 mm

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.60°C

Degree of protection IP65/IP67

Further information

Function display Switching status: LED, yellow
Operation: LED, green

Accessories included No accessories

EMC testing DIN EN 60947-5-2

CE approval

precision curve

Accuracy curve legend x : distance sensor / object [mm]
y: Minimum object / background distance [mm]
1: object black (6% remission), background (white 90% remission)
2: Object gray (18% reflectance) background (white 90% draw)
3: Object white (90% draw), background (white 90% draw)

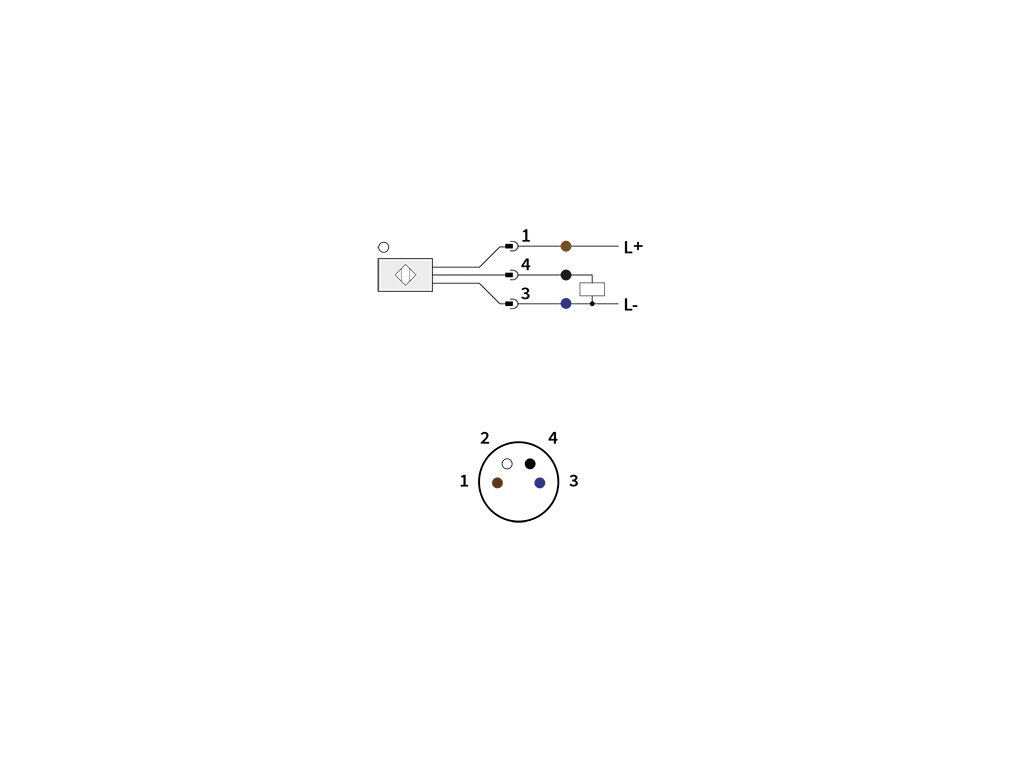

Connection and pin assignment
