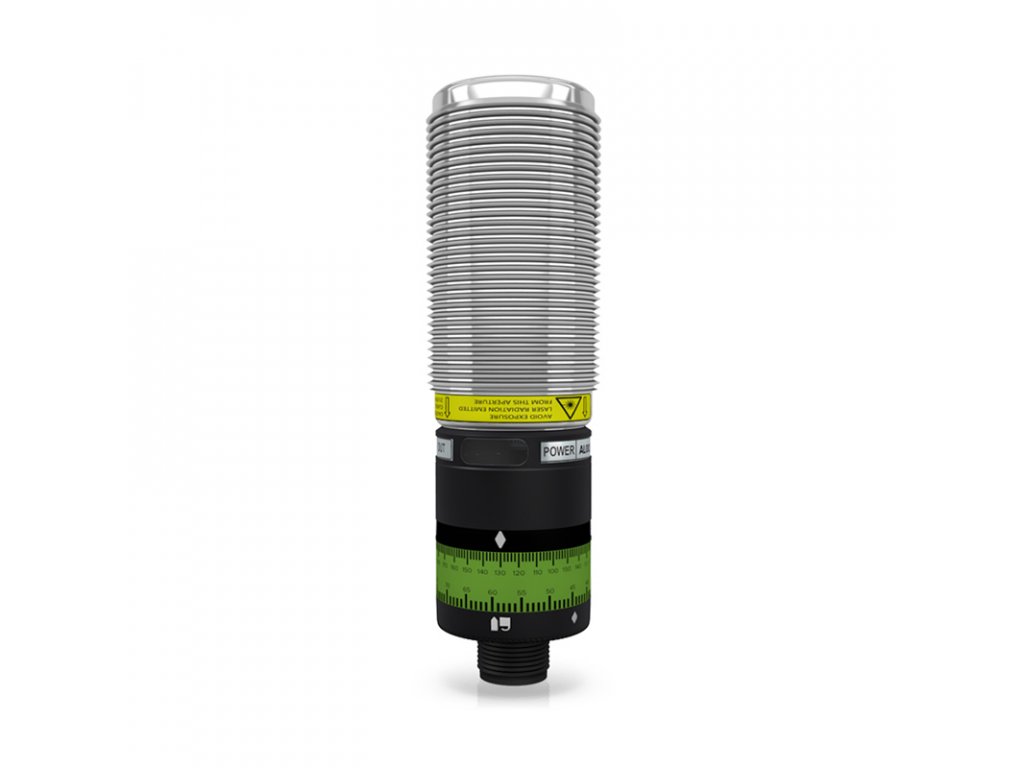

Laser distance sensor M30x1,5 metal thread AL003

Code: AL003

Brand: Autosen

AL003 et main 800 Laserový snímač

AL003 et main 800 Laserový snímač

al003 drawing Laserový snímač

al003 pins Laserový snímač

262 € / pcs 318 € incl. VAT 262 € / 1 pcs

Delivery to: 13/03/2025

Laser distance sensor with background suppression, M 30x1.5 metal threads, DC PNP, background suppression, visible laser light, laser safety class 2, adjustment, manual adjustment [cm/inch], plug connection, visible laser light, laser safety class 2, range 0.03 ... 2 m, background suppression ... 20 m

Setting the switching point is easy and precise by turning the adjustment ring (easy rotation). The scale indicates the set distance. The switching point can therefore be set before commissioning.

With photo-mixing detection and detector technology, PMD in short, the sensor combines the advantages of long-term and functional reserve in one device. Whether they are shiny, matte, dark or light objects no matter what color. The AL003 laser sensor provides particularly reliable background suppression. Any angle of incidence allows for any mounting position

Detailed information

Show all related products

Product detailed description

Technical data AL003

General information

Operating distance 0 .03 ... 2 m

Background suppression Yes (<20 m)

Lifetime 50000 h

Switching frequency 11 Hz

Lightweight laser (protection class 2)

Outputs / inputs

Output switching antivalent

IO-Link Yes

Electrical data

Short circuit protection: yes

Operating voltage 10 ... 30 V DC

Surge protection Yes

Overload resistance Yes

DC voltage

Electric PNP version

Protection class III

Current consumption max. 75 mA

Mechanical data

Material active surface PMMA

Type Cylindrical with thread

Material housing V4A

Thread size M 30x1,5

Connect gold-plated contacts M12 4-pin

Total length 100 mm

accuracy

Hysteresis<4... 6% (see picture)

Resolution 10 mm

Bright spot diameter<5 mm (scanning distance 2 m) mm

Ambient light safety 8 klx; on object

environmental conditions

Ambient temperature min. -25°C

Ambient temperature max.60°C

Degree of protection IP65 IP67

Further information

Function indicator LED yellow/green

Accessories include 2 fixing nuts

EMC testing DIN EN 60947-5-2

CE approval
cULus

sketches

drawing

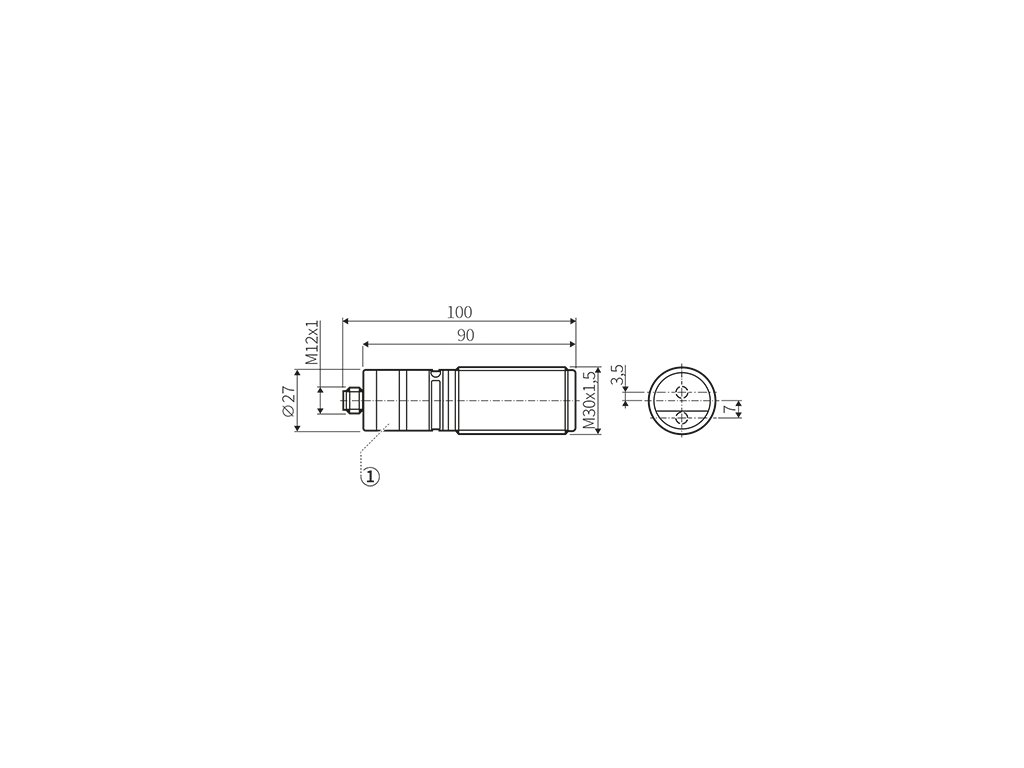

Dimensional drawing Legend1: Adjustment ring

hysteresis curve

Hysteresis curve y : hysteresis [mm] x: distance [mm]
1 = background black 6% remission
2 = background white 90% remission

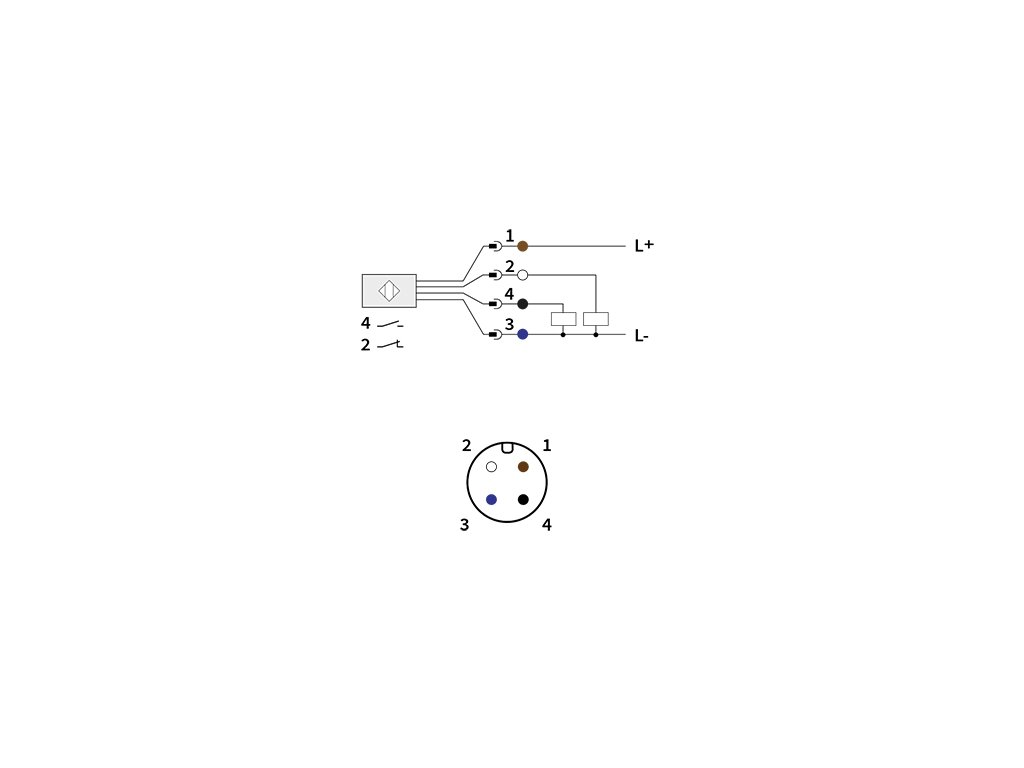

Connection and pin assignment

Additional parameters
