Laser sensor AL001 Ultra Performance

Code: AL001

Brand: Autosen

AL001 et main 800 Laserový senzor

AL001 et main 800 Laserový senzor

al001 drawing Laserový senzor

al001 pins Laserový senzor

379 € / pcs 459 € incl. VAT 379 € / 1 pcs

Delivery to: 13/02/2025

The AL001 automatic laser distance sensor helps with particularly challenging position or level detection tasks with the best performance

Wherever red light sensors cannot be used due to structural implications, the AL001 laser sensor. Operating over a range of up to 10 m, a background suppression of 10 ... 100 m and two programmable switching outputs (e.g. as an analogue output) the AL001 distance sensor is excellent for position detection from distant targets or for precise position control in material feeding. The four-digit alphanumeric display and programmable output function make the device particularly easy to operate and parameterise.

Usage

- checking attendance in demanding applications

- feed material ingredient

- Precise position recognition

Detailed information

Show all related products

Product detailed description

Technical data AL001

General information

Switching distance 0 .2 ... 10 m

Note: Based on white paper 200x200 mm, 90% remission

Background suppression Yes (<10 ... 100 m)

Lifetime 50000 h

Switching frequency 33 Hz

Lightweight laser (protection class 2)

Outputs / inputs

Switched output 2 x NO/NC programmable

Analog output 4 ... 20 mA | 0 ... 10 V
Programmable scalable

IO-Linkch.

Electrical data

Short circuit protection Yes

Operating voltage 18 ... 30 V DC

Surge protection: yes

Overload resistance: yes

DC voltage

Electric PNP version

Current capacity max.2 x 200 mA

Protection class III

Current consumption max.150 mA

Mechanical data

Material active surface glass

Enter the cuboid command

Housing material zinc and polycarbonate

Connect gold-plated contacts M12 4-pin

Overall length 59 mm

accuracy

Resolution 10 mm

Bright spot diameter <15 x 15 mm (scanning distance 10) mm

Accuracy 4 .5 ... 70 mm (see table)

environmental conditions

Ambient temperature min.-10°C

Ambient temperature max.60°C

Degree of protection IP67

Further information

Function display yellow/green 3 x LED
programming buttons
4-digit display

Accessories included:Without accessories

EMC testing DIN EN 60947-5-2

CE approval
cULus

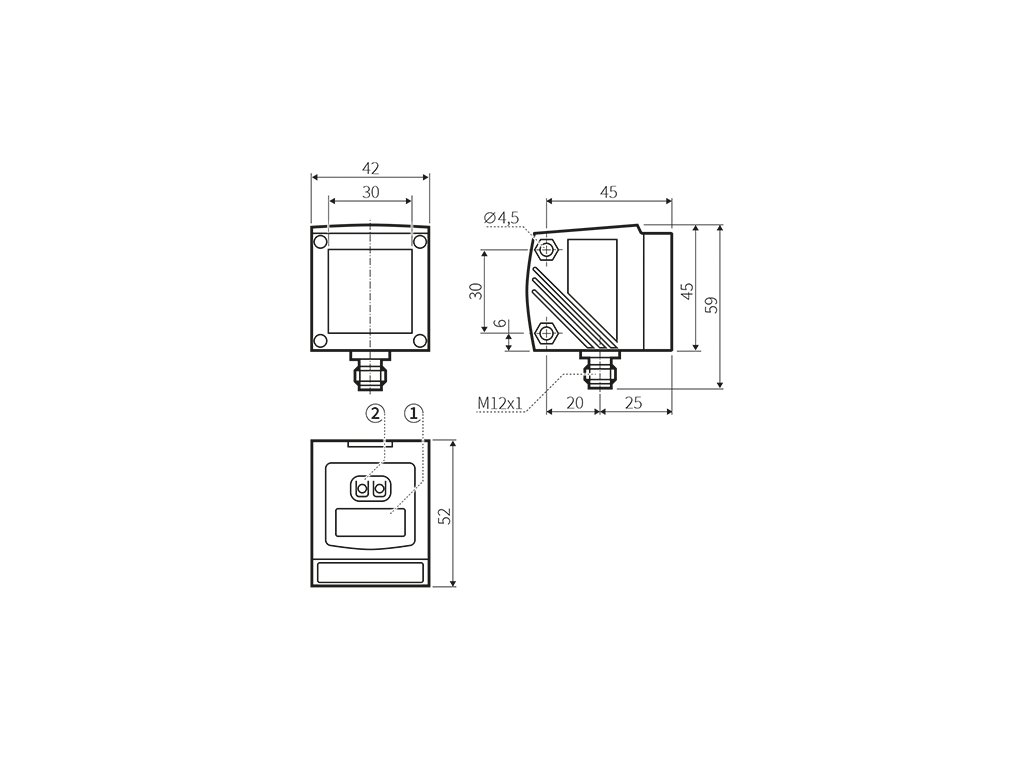

Dimensional drawing Legend1: four-digit alphanumeric display
2: Programming buttons

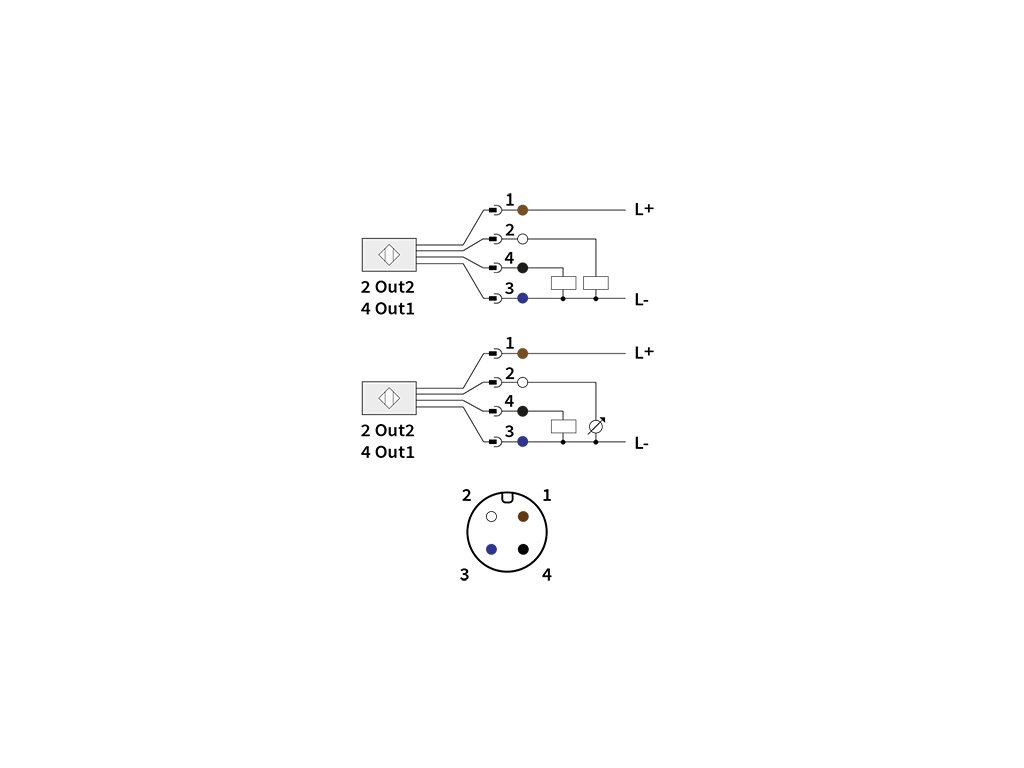

Connection and pin assignment

Additional parameters

Category:	Laserové snímače
Warranty:	2 years
Weight:	0.2 kg
