    Home / Produkty / Sudová čerpadla JESSBERGER / Příslušenství / Flowmeter

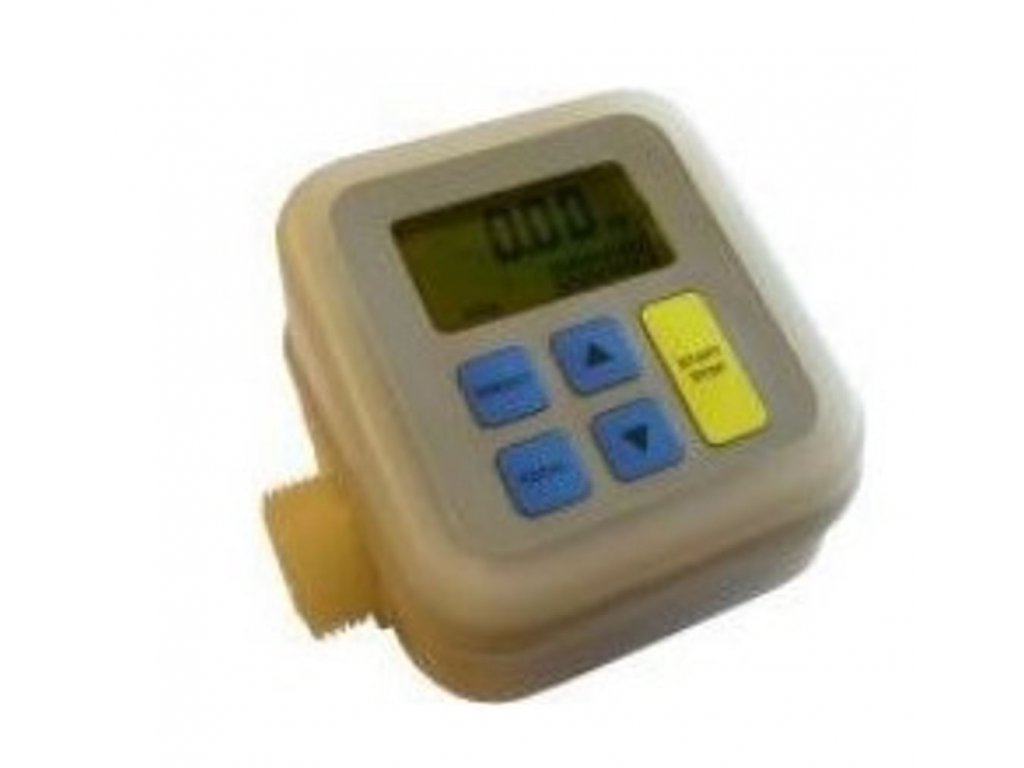

    Flowmeter

    Code: FM120 PVDF
    Prutokomer PVDF FM 120 Create Flow
    559 € / pcs 677 € incl. VAT 559 € / 1 pcs
    Dodací termín 3 až 4 pracovní týdny
    Delivery to:
    09/05/2025

    The PVDF turbine flowmeter is a handy, easy-to-use and inexpensive device for reliable and accurate measurement of aqueous water-like media and, in this case, particularly aggressive media such as acids and bases. The meters are suitable for installation as a stationary counter as well as a manual flow meter for drum pumps.

    The viscosity of the measured medium must not exceed 20 mPas. In addition, a constant, non-pulsating flow rate of 20 -120 l/min. must be ensured and an operating pressure not exceeding 6 bar is given. The accuracy of the measurement in the calibrated state is ± 1.0 % when these parameters are observed and the required input and output distances are taken into account. Also, any media rollovers are immediately subtracted.

    Detailed information

    Related products

    JP 180
    Barrel pump JP-280 PP(HC) 1000 mm
    Dodací termín 3 až 4 pracovní týdny
    1 209 € incl. VAT
    999 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping weak acids and water-based alkalis....

    Code: 1281 4110
    JP 280 PVDF
    Barrel pump JP-280 PVDF 1000 mm
    Dodací termín 3 až 4 pracovní týdny
    2 048 € incl. VAT
    1 692 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping acids and alkalis. The pump is not...

    Code: 1281 4112
    JP 280 PVDF
    Barrel pump JP-380 PVDF 1200 mm
    Dodací termín 3 až 4 pracovní týdny
    2 526 € incl. VAT
    2 088 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping acids and alkalis. The pump is not...

    Code: 1383 4112
    Sudové cerpadlo jessberger vcetne hadice pistole vzduchovy motor JP AIR3 Create Flow
    Barrel pump JP-AIR NIRO with air motor length 1000 mm Ex
    Dodací termín 3 až 4 pracovní týdny
    2 855 € incl. VAT
    2 360 €

    Complete barrel pump assembly for pumping flammable and explosive substances into explosive atmospheres (Ex-zone 1). Max. output is 91 l/min (water) and max. pressure is up to...

    Code: 3032 4110
    JP 180
    Barrel pump JP-180 PP(HC) 1000mm
    Dodací termín 3 až 4 pracovní týdny
    1 079 € incl. VAT
    892 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping weak acids and water-based alkalis....

    Code: 1181 4110
    Sudove cerpadlo JP 400 Create Flow
    Barrel pump JP-400 NIRO 1000 mm Ex
    Dodací termín 3 až 4 pracovní týdny
    3 036 € incl. VAT
    2 509 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The barrel pump is designed for pumping flammable and explosive...

    Code: 1442 4110
    JP 180
    Sudové čerpadlo JP-280 PP(HC) 1200 mm
    Dodací termín 3 až 4 pracovní týdny
    1 241 € incl. VAT
    1 025 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping weak acids and water-based alkalis....

    Code: 1281 4124
    JP set ALU
    Barrel pump JP-280 ALU 1200 mm
    Dodací termín 3 až 4 pracovní týdny
    1 365 € incl. VAT
    1 128 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping diesel and oils. The pump is not...

    Code: 1281 4121
    JP 280 PVDF
    Barrel pump JP-280 PVDF 1200 mm
    Dodací termín 3 až 4 pracovní týdny
    2 140 € incl. VAT
    1 769 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping acids and alkalis. The pump is not...

    Code: 1281 4122
    JP 280 PVDF
    Barrel pump JP-360 PP 1200 mm
    Dodací termín 3 až 4 pracovní týdny
    1 678 € incl. VAT
    1 387 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping acids and alkalis. The pump is not...

    Code: 1363 4112
    JP 180
    Sudové čerpadlo JP-180 PP(HC) 1200mm
    Dodací termín 3 až 4 pracovní týdny
    1 113 € incl. VAT
    920 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping weak acids and water-based alkalis....

    Code: 1181 4112
    JP 280 PVDF
    Barrel pump JP-360 PP 1000 mm
    Dodací termín 3 až 4 pracovní týdny
    1 643 € incl. VAT
    1 358 €

    Barrel pump completely delivered including electric motor, pumping tube, discharge hose, dispensing gun. The pump is suitable for pumping acids and alkalis. The pump is not...

    Code: 1363 4110
    Show all related products Previous product Next product

    Product detailed description

    průtokomer_Jessberger_PVDF_FM_120_Create_Flow





    Sudový_Prutokomer_PVDF_FM_120_Create_Flow





    Prutokomer_pro_sudová_cerpadla_PVDF_FM_120_Create_Flow

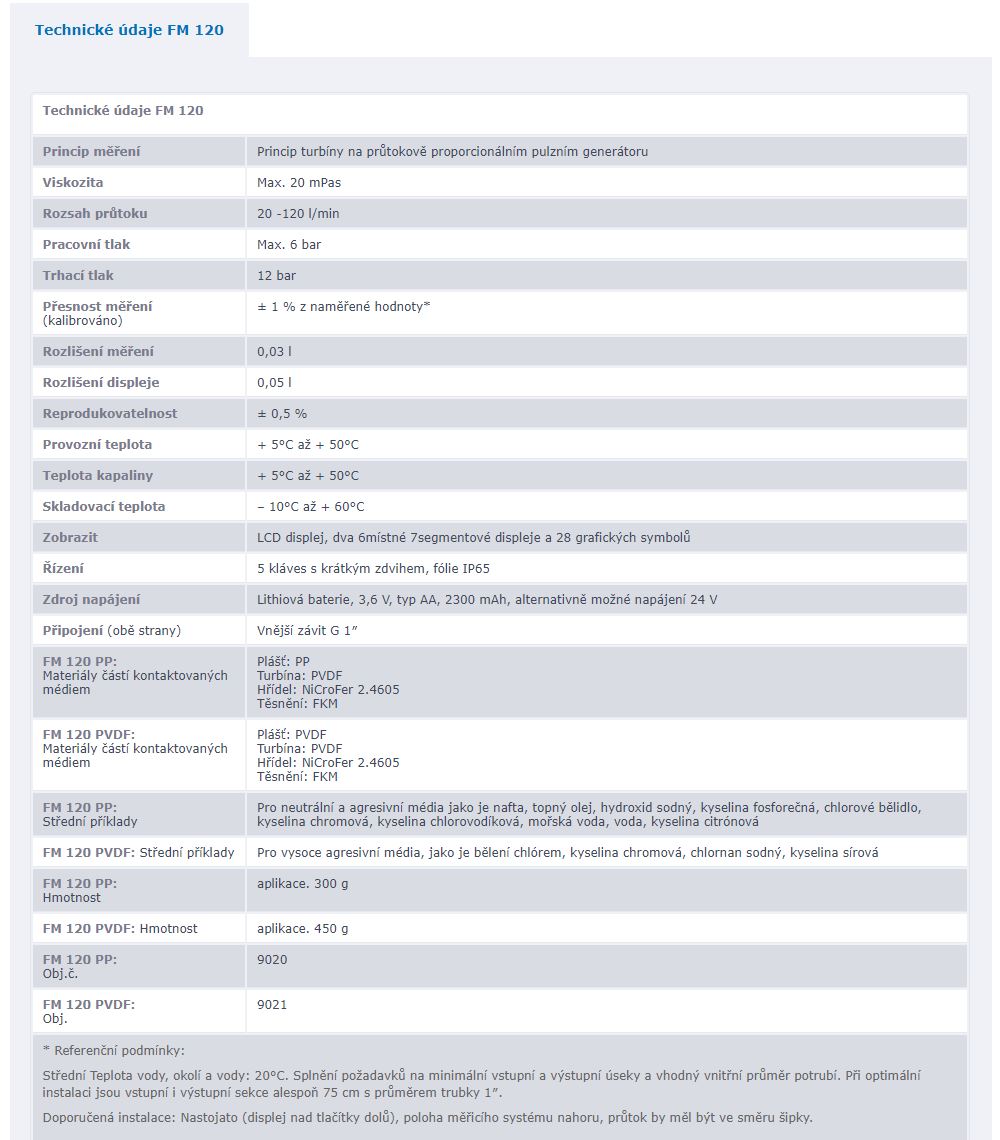

    Additional parameters

    Category: Komponenty pro sudová čerpadla
    Warranty: 2 roky vyjma dílů podléhající vysokému stupni opotřebení
    Weight: 1 kg
    Materiál: PVDF (Kynar)
    Připojení: 1" vnější závit (sání -výtlak)
    patní koš pro kyseliny sudové čerpadlo
    Snap-on filter on the tube barrel pump
    Dodací termín 3 až 4 pracovní týdny
