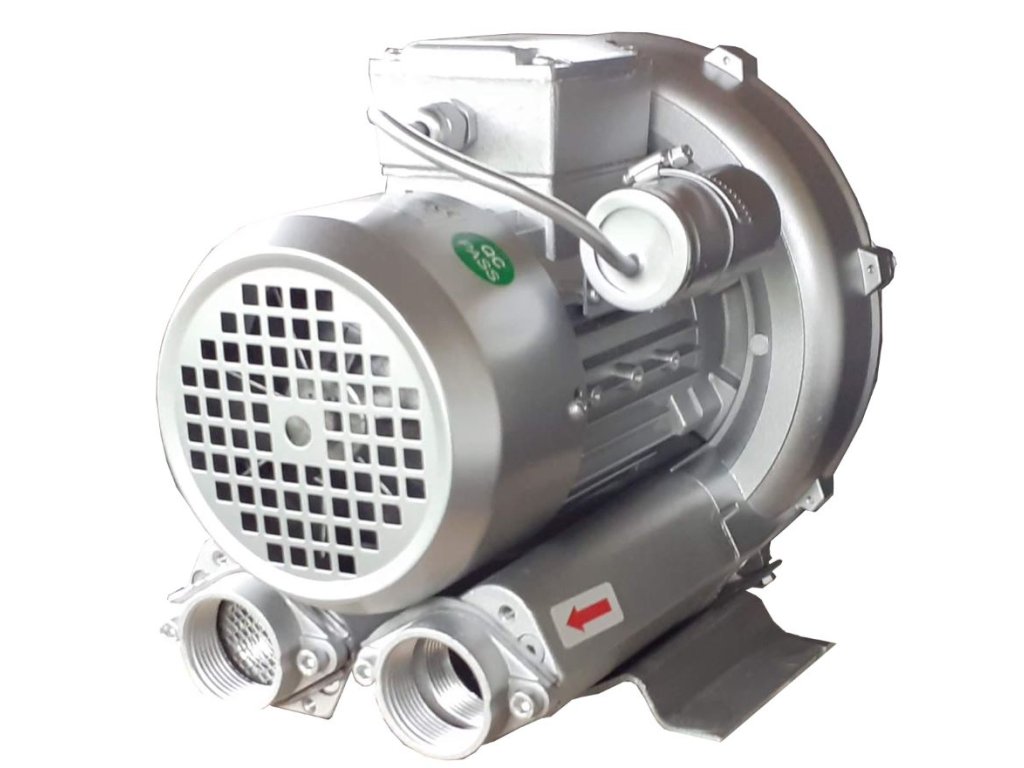

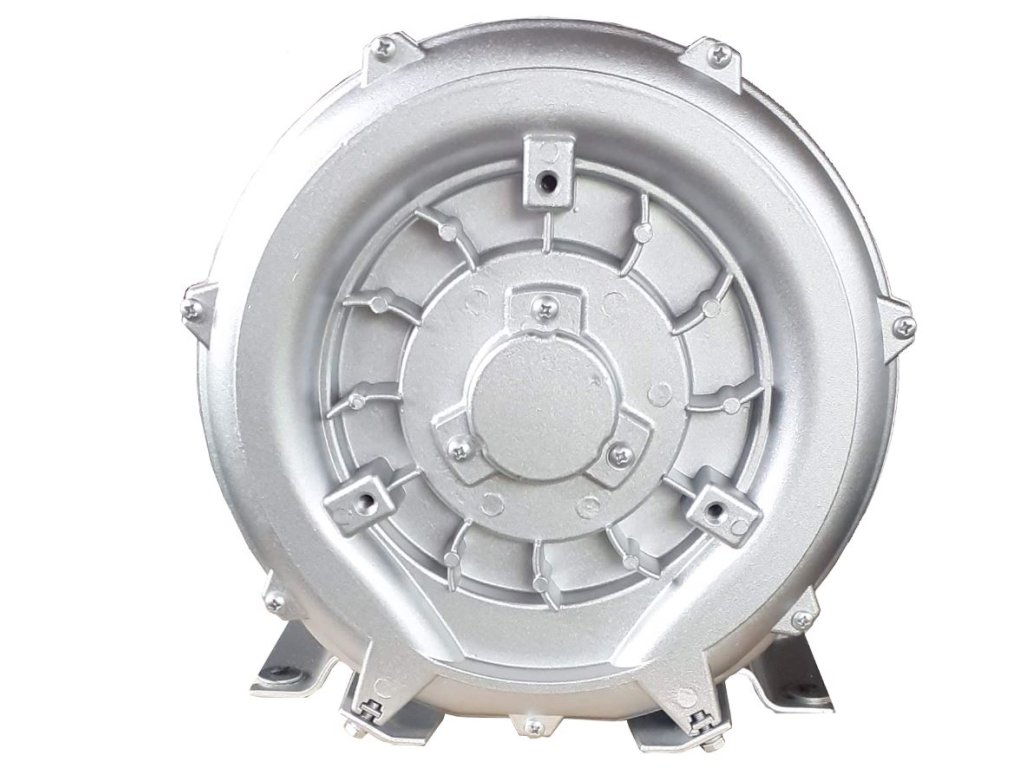

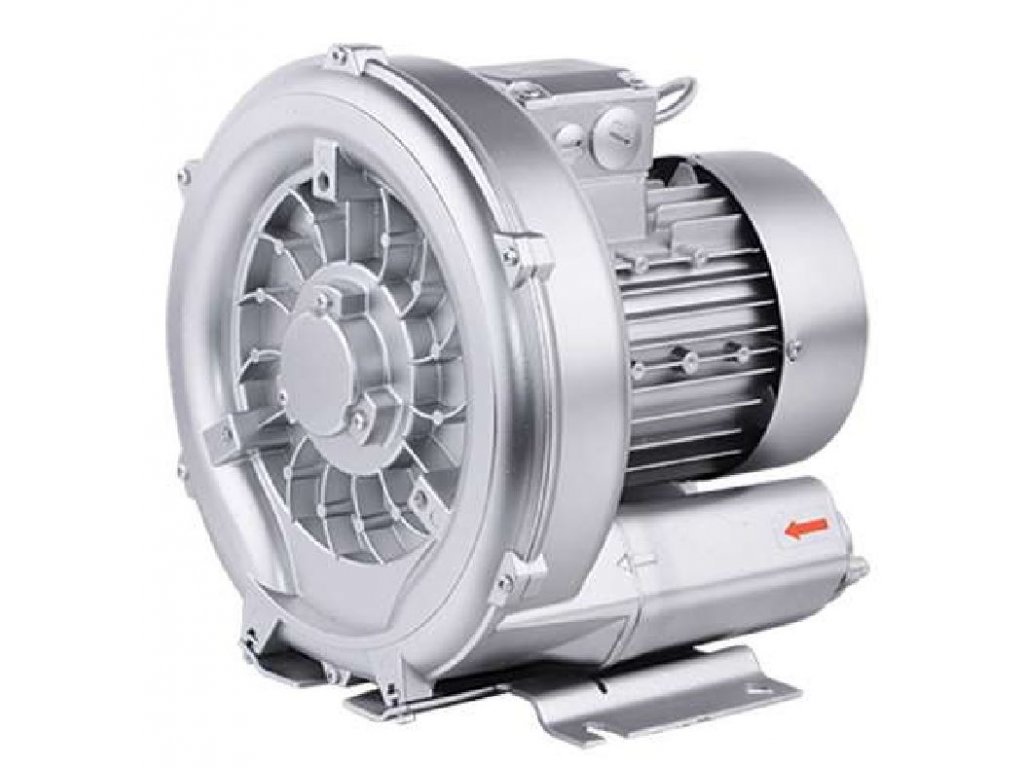

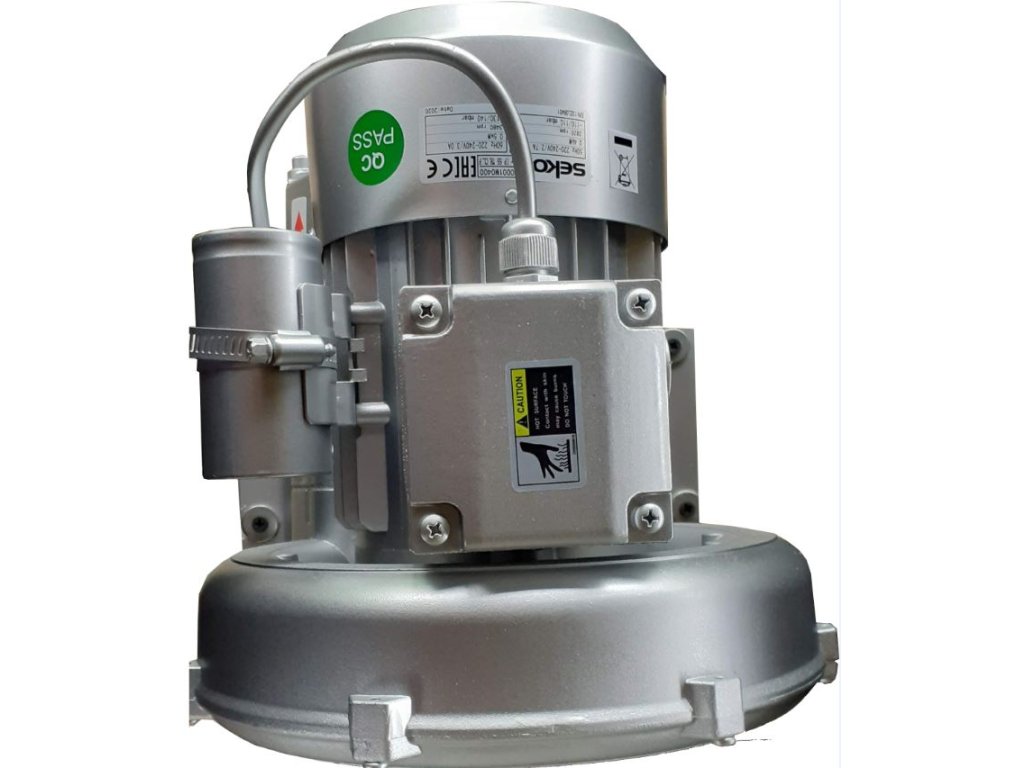

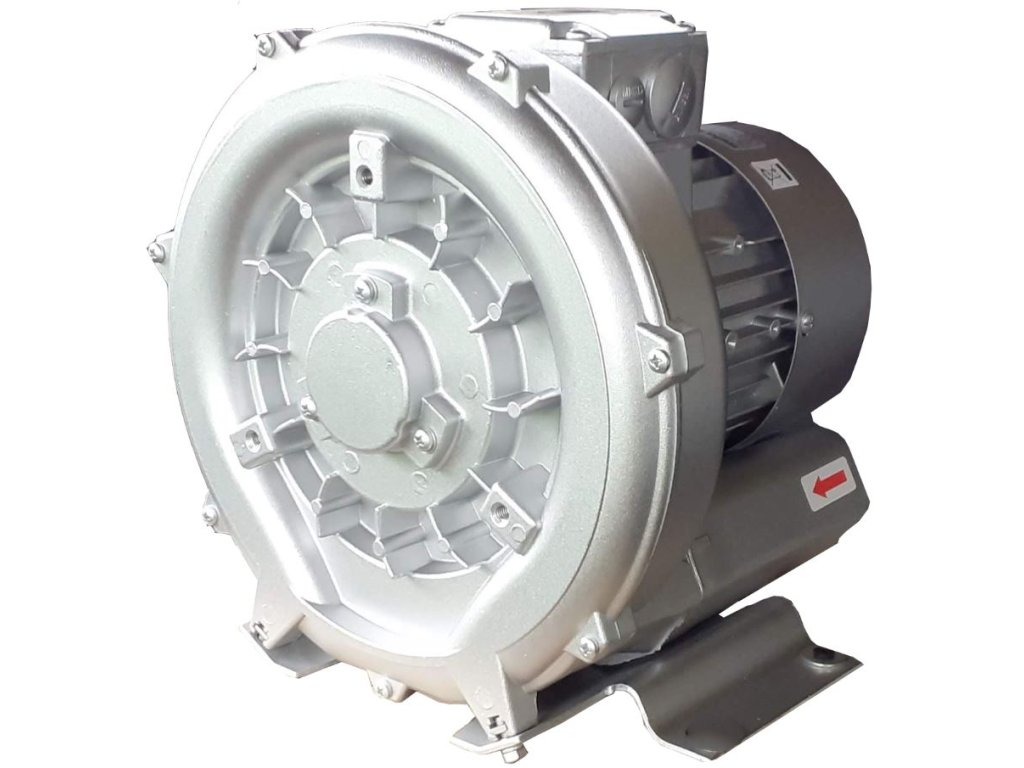

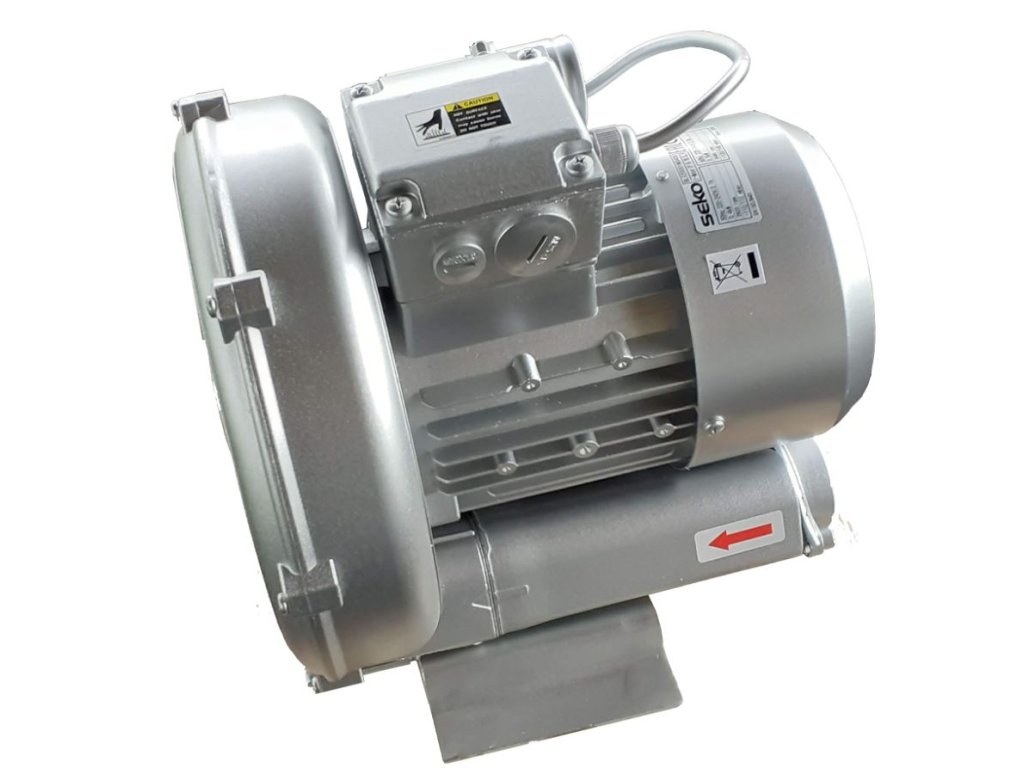

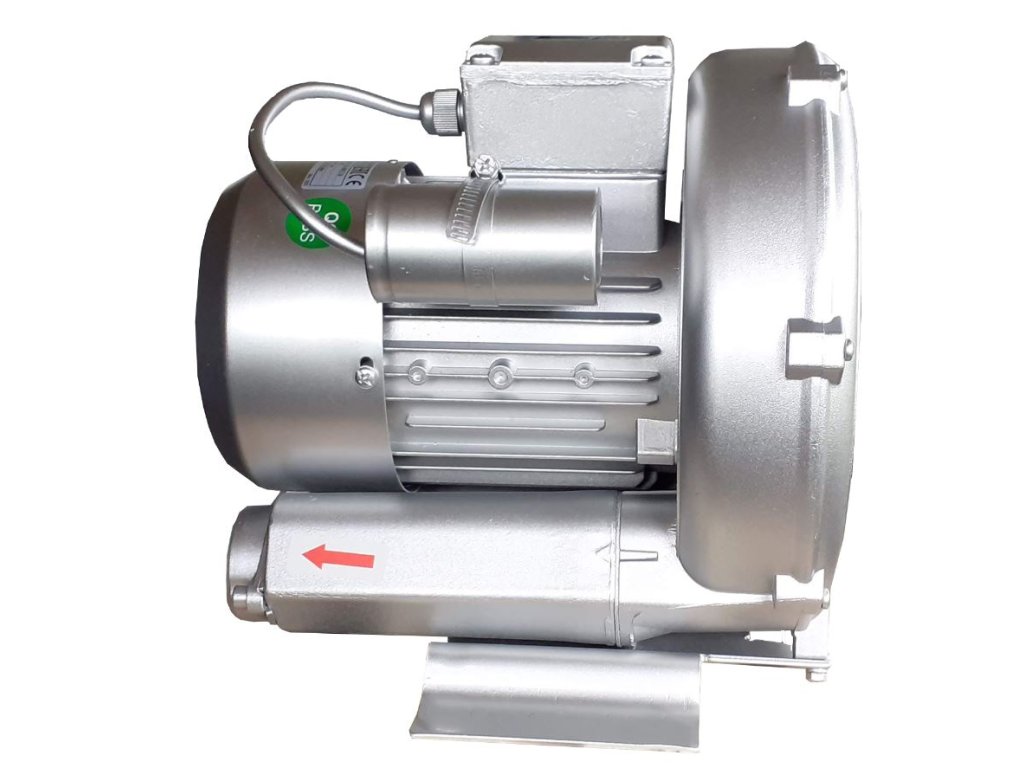

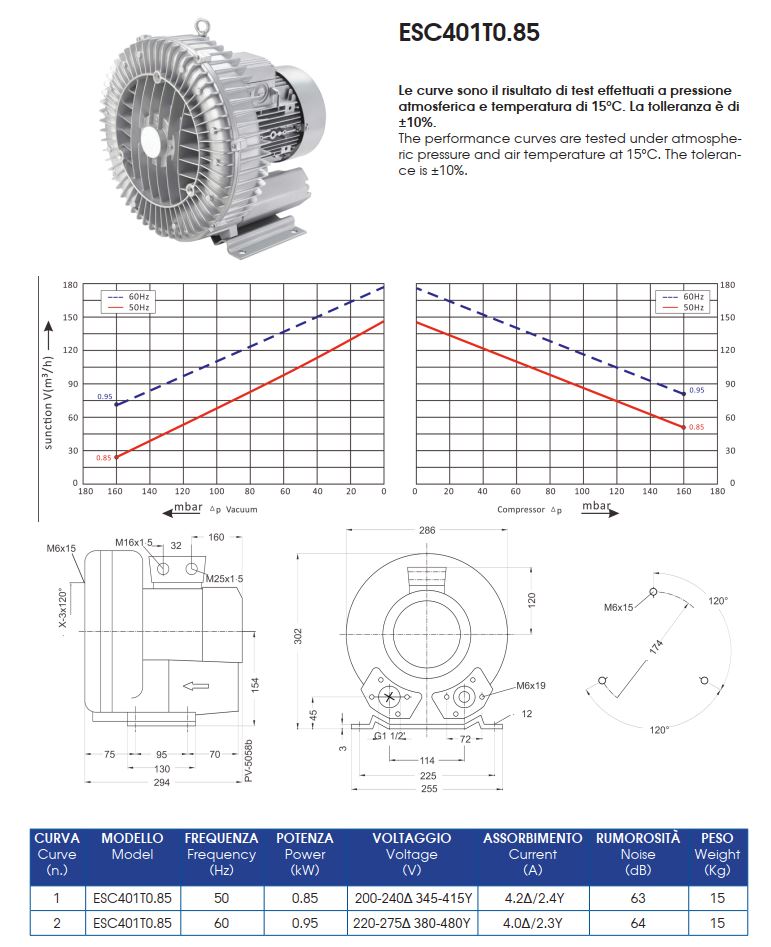

Vacuum pump - air conditioner max. 145 m3/hod, max. 160 mbar, -160 mbar 1 channel, 0,85 kW, 400V 3-fáze
Code: ESC401T0.85Related products
Product detailed description

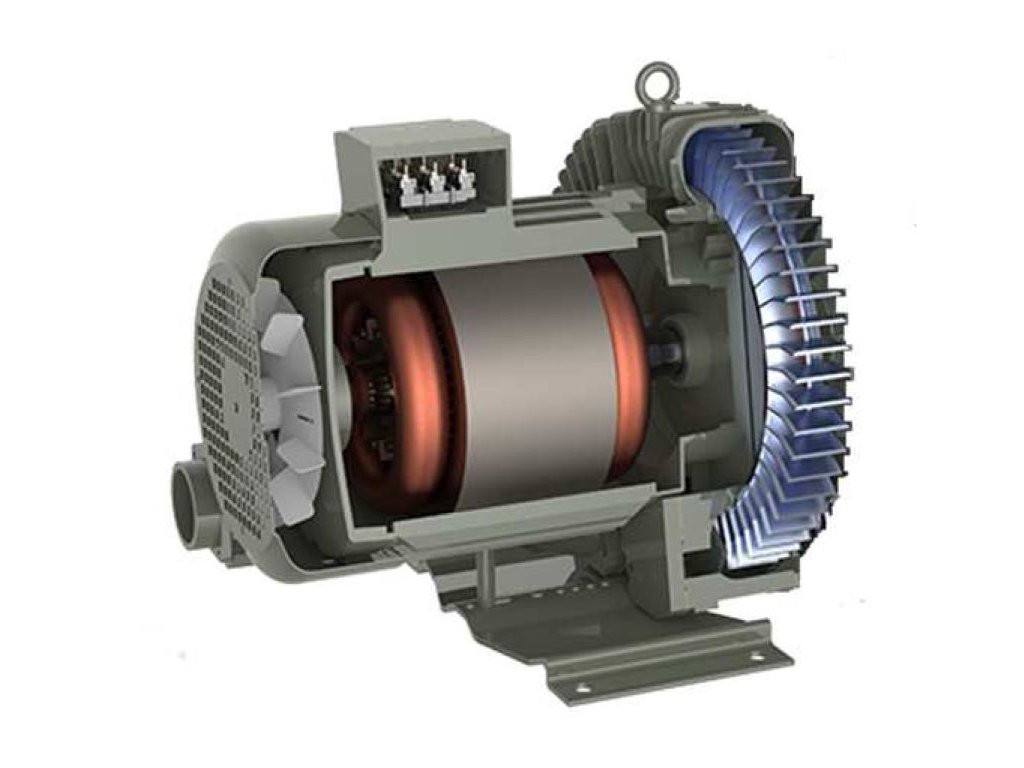

Single-stage air pump - air blower with side inlet ensures low pulsation air compression. A rotating impeller converts the intake air into pressure. The blower impeller is mounted directly on the motor shaft. The pumped air is sucked in, compressed in a side channel. The blower can be used to create both pressure and vacuum. The rated power of the motor determines the maximum differential pressure of the fan. Silencers mounted on the inlet and discharge routes ensure quiet and reliable operation at maximum output.
Pump-Blowers find a use: industrial air cleaning, plastic bottle blowing, screen printing, solids transport (pellets), pneumatic handling, inflatable dam, central vacuum cleaners, cleaning, industrial laundry, vegetable and food cleaning in water bath, food freezing, food transport (flour, corn), pipeline mail, electroplating and plating, waste management, sludge aeration, water aeration - car wash, fish farms and fish farms, grinding machines, soil remediation, biogas plant.
Additional parameters
| Category: | Single stage pump and blower |
|---|---|
| Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
| Weight: | 15 kg |
| Materiál: | Slitina hliníku |
| Kanál: | 1 |
| ? Max. množství: | 145 m3/hod |
| ? Max. tlak: | 160 mbar |
| Max. vakuum: | -160 mbar |
| Připojení: | 1 1/2" |
| El. motor: | 0,855 kW, 3-f 400V, 2900 ot/min 50 Hz, 1,15/0,75 A |
| Hlučnost: | 63 dB (A) |
| ATEX certifikát: | NE |
