    Home / Produkty / Průmyslová automazice / Snímače polohy / Indukční snímače / Inductive sensor Standard class IP67 AI023

    Inductive sensor Standard class IP67 AI023

    Code: AI023
    Brand: Autosen
    AI023 et main 800
    32 € / pcs 39 € incl. VAT 32 € / 1 pcs
    Skladem na externím skladu
    Delivery to:
    13/03/2025
    • DC, 10 ... 30 V, normally open, PNP
    • Degree of protection IP 67
    • With switchable LED display

    Install and forget! Highest quality and product compatibility for reliable use in all standard applications. Inductive sensor with metal thread M30x1,5 and plug M12, increased switching distance 22 mm and LED indication. The Inductive Wireless Switch AI023 is a 100% quality product "Made in Germany"

    Detailed information

    Related products

    AA904 et main 800
    Mounting bracket M30 AA904
    Skladem na externím skladu
    15 € incl. VAT
    13 €

    For safe and optimal installation of M30 sensors.

    Code: AA904
    AA037 et main 800 kabel snímače
    Sensor cable 2 m Standard class IP67 AA037
    Skladem na externím skladu
    17 € incl. VAT
    14 €

    Sensor cable with direct connection connector Degree of protection IP 65 | IP67 AC/DC

    Code: AA037
    AA040 et main 800 kabel snímače Create Flow
    Sensor cable 2 m Standard IP class 67 AA040
    Skladem na externím skladu
    18 € incl. VAT
    15 €

    Sensor cable with angled connection Degree of protection IP 65 | IP67 AC/DC

    Code: AA040
    AA947 et main 800 konektor L
    Connector M12 AA947
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA947
    AA939 et main 800 Konektor pro kabel senzoru
    Connector M12 AA939
    Skladem na externím skladu
    22 € incl. VAT
    18 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA939
    AA921 et main 800 konektor
    Connector M12 AA921
    Skladem na externím skladu
    22 € incl. VAT
    19 €

    Gold plated contacts Halogen and silicone free AC/DC

    Code: AA921
    AN001 et main 800
    Single channel switching amplifier AN001
    Skladem na externím skladu
    217 € incl. VAT
    179 €

    The AN001 single channel switching amplifier is used to supply and evaluate sensor signals. It is equipped with a 24 V DC / 300 mA output, a clamp rail housing and is...

    Code: AN001
    AN002 et main 800
    Dual stream management switching amplifiers AN002
    Skladem na externím skladu
    319 € incl. VAT
    264 €

    The two-position control relay has an enclosure with a clamping rail and offers an input delay of 0 ... 10 s. Switching outputs: relay (1 switching contact); Transistor output...

    Code: AN002
    AR003 et main 800
    Monitor speed AR003
    Skladem na externím skladu
    262 € incl. VAT
    216 €

    Position sensors can be combined with the AR003 evaluation system to detect pulses, velocities or stops of non-metallic objects. Intuitive adjustment of pulse count, output...

    Code: AR003
    Show all related products Previous product Next product

    Product detailed description

    Technical data AI023

    General information

    22 mm
    100 Hz

    Outputs / inputs

    normally open (NO)

    Electrical data

    Yes
    10 ... 30 V DC
    Yes
    Yes
    DC
    PNP
    100 mA
    2.5 V
    10 mA

    Mechanical data

    PBT
    with thread
    Do not discharge
    Brass white-bronze coated
    ,5
    gold-plated M12 contacts with 3 pins


    60 mm

    accuracy

    St37 = 1
    V2A approx. 0.7
    Ms approx. 0.5
    Al approx. 0.4
    Cu approx. 0.3
    ... 15% of the actual switching distance Sr

    environmental conditions

    . -25°C
    70°C
    IP67

    Further information


    x LED yellow
    fixing nuts
    DIN EN 60947-5-2
    CE
    cULus

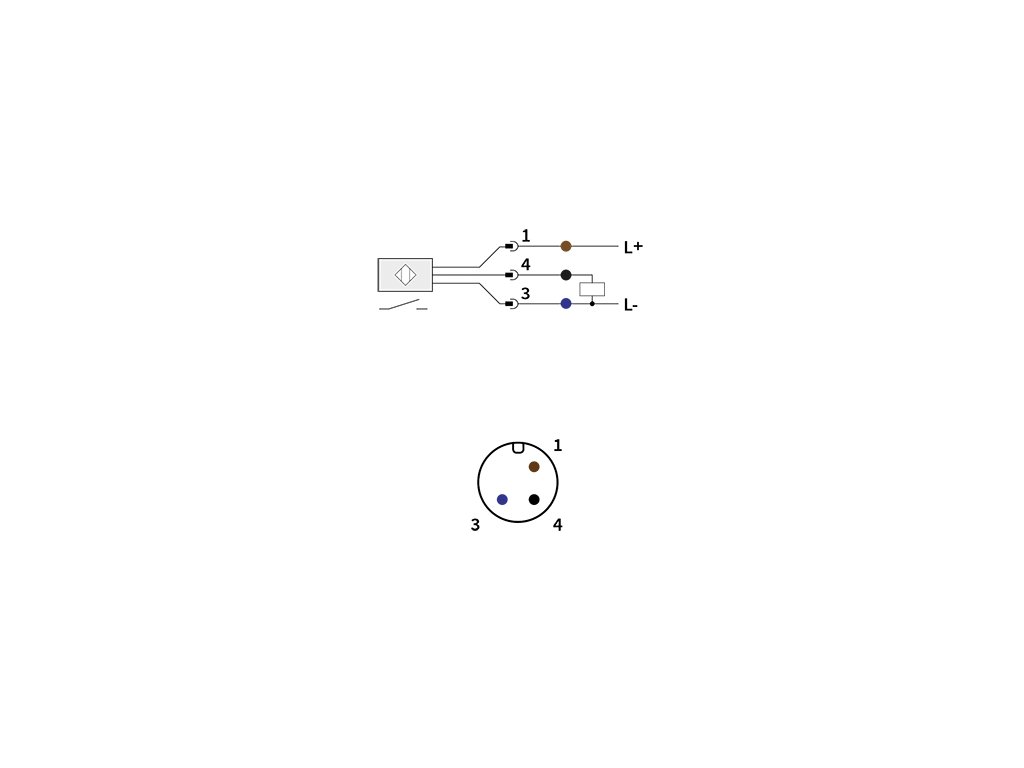

    sketches

    Additional parameters

    Category: Indukční snímače
    Warranty: 2 years
    Weight: 0.1 kg
