    Home / Produkty / Membránová čerpadla / GRACO membránová čerpadla / Diaphragm pump Graco 515P-Polypropylen-Santopren, max. 57 l/min

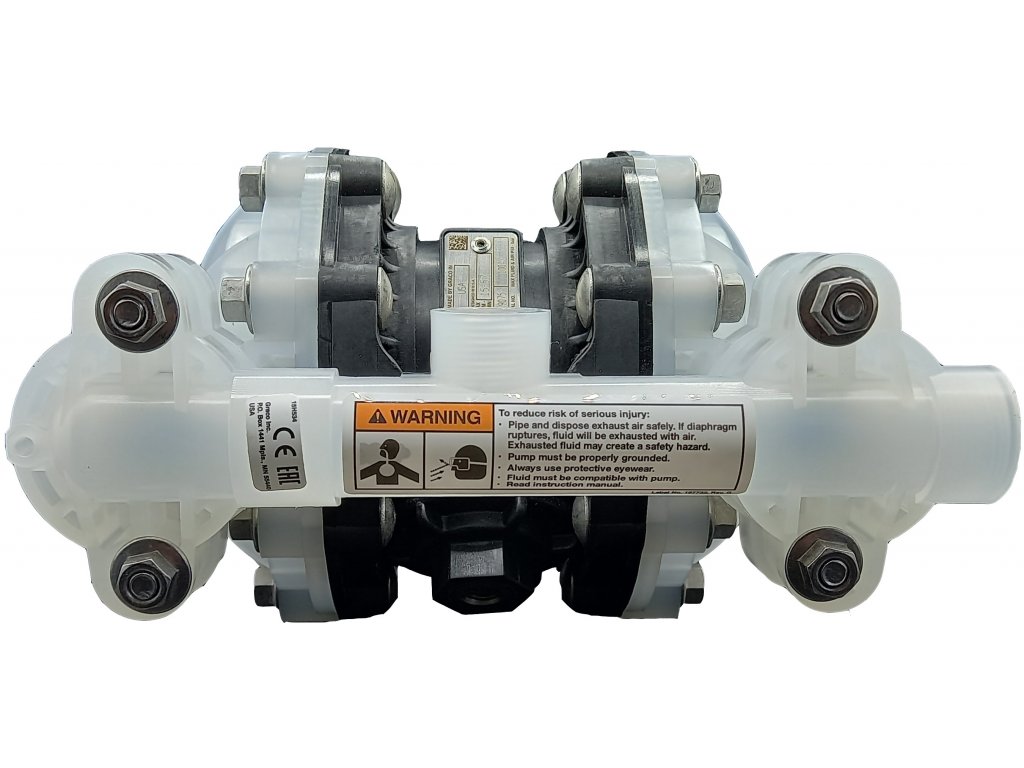

    Diaphragm pump Graco 515P-Polypropylen-Santopren, max. 57 l/min

    Code: D5B966
    Brand: Graco
    cerpadlo Graco 515 Create Flow
    593 € / pcs 717 € incl. VAT 593 € / 1 pcs
    Skladem (5 pcs)
    Delivery to:
    08/01/2025

    Membrane pump Graco 515P-P01AP4PPSPSPSPPT with compressed air drive. Designed for pumping acid and alkaline liquids in the pH range of 2 to 14. Max. output 57 l/min, max. discharge 7 bar. Self-priming capability, dry running. Compressed air drive max. pressure 7 bar. Pump material: Polypropylen (body, seats), Santoprene (balls, diaphragms). Santoprene material is suitable for 90% of chemicals. The advantage is the low cost and long life of the membranes. We recommend to look at the chemical resistance table for the fluid you are pumping HERE

    Alternative replacement for VERDERAIR VA15 PP-PP-SP-SP and AV15 PP-PP-SP-SP

    In the case of multiple purchases, it is possible to provide a quantity discount on the pumps.

    Detailed information

    Related products

    hadicovy tran PVC 15 Create Flow
    Set of PVC-U hose mandrels 3/4" for the pump AV15
    Skladem (2 pcs)
    15 € incl. VAT
    13 €

    Set of two PVC-U 3/4" hose barbs for diaphragm pump with 3/4" connection for Graco, ARO, Yamada

    Code: AV1534
    Zpetna klapka filtr pro cerpadla na 12V Create Flow
    Sucking basket - check valve
    Skladem (2 pcs)
    19 € incl. VAT
    15 €

    Brass check valve with basket. The return flap is fitted with a spring. Connection internal thread 3/4"-1/2" - hose shank 15 mm (1/2") or 10 mm (3/8") according to pump...

    Code: 9682
    cerpadlo Graco 1050P 649030 Create Flow
    Diaphragm pump Graco 1050P-Polypropylen-Teflon, max. 189 l/min
    Dodací termín 1 až 2 pracovní týdny
    1 918 € incl. VAT
    1 585 €

    Membrane čerpadlo Graco P01AP2PPPTPTPT s pohonem na stlačený vzduch. Určeno pro čerpání kyselých a zásaditých kapalin v rozmezí pH 2 až 14. Max. výkon 189 l/min, max. výtlak 8,6...

    Code: 649034
    membranove cerpadlo Graco D5C311 Create Flow
    Diaphragm pump Graco 716A-Hliník-Teflon, max. 57 l/min, 7 bar, ATEX
    Dodací termín 1 až 2 pracovní týdny
    1 415 € incl. VAT
    1 170 €

    Membrane pump Graco 716A-P01AA2SSPTPTPT with compressed air drive. Designed for neutral liquids, combustibles, gasoline, diesel in the pH range of 6 to 8. Max. output 57 l/min,...

    Code: D5C311
    cerpadlo Graco 515 Create Flow
    Diaphragm pump Graco 515P-Poylpropylen-Teflon, max. 57 l/min
    Dodací termín 1 až 2 pracovní týdny
    1 269 € incl. VAT
    1 048 €

    Membrane pump Graco 515P-P01AP4PPPTPTPTPT with compressed air drive. Designed for pumping acid and alkaline liquids in the pH range of 2 to 14. Max. output 57 l/min, max....

    Code: D5B911
    GRACO 25B495 Create Flow
    Diaphragm pump Graco 515C-Vodivý Acetal-Teflon, max. 57 l/min, ATEX
    Dodací termín 1 až 2 pracovní týdny
    1 222 € incl. VAT
    1 010 €

    Membrane pump Graco P01AAC4PPPTPTPT with compressed air drive including ATEX certificate. Designed for pumping acid and alkaline liquids in the pH range of 2 to 14 in hazardous...

    Code: D5A211
    Membranove cerpadlo Graco D150A1 PVDF Teflon Create Flow (6)
    Membránové čerpadlo Graco 205P PVDF-Teflon, max. 18,9 l/min
    Dodací termín 1 až 2 pracovní týdny
    937 € incl. VAT
    774 €

    Membrane pump Graco 205P-P01AP5-PPPTPT-FK with compressed air drive. Designed for pumping acid and alkaline liquids in the pH range of 2 to 14. Max. output 18,9 l/min, max....

    Code: D150A1
    membranove cerpadlo GRACO 25B495 Create Flow
    Diaphragm pump Graco 1050C Conductive Polypropylen/Teflon, max. 189 l/min, ATEX
    Dodací termín 1 až 2 pracovní týdny
    2 213 € incl. VAT
    1 829 €

    Membrane čerpadlo Graco 1050C-C01AC2PPPTPTP s pohonem na stlačený vzduch včetně ATEX certifikátu. Určeno pro čerpání kyselých a zásaditých kapalin v rozmezí pH 2 až 14 v...

    Code: 649201
    cerpadlo Graco 515 Create Flow
    Diaphragm pump Graco 515P-Polypropylen-Buna-N, max. 57 l/min
    Dodací termín 1 až 2 pracovní týdny
    830 € incl. VAT
    686 €

    Membrane pump Graco P01AP4PPBNBNPT with compressed air drive. Designed for pumping abrasive liquids between pH 6 and 10. Max. output 57 l/min, max. discharge 7 bar. Self-priming...

    Code: D5B977
    Graco 205 VERDEAIR VA 8 Create Flow
    Diaphragm pump Graco 205P Polypropylen-Teflon, max. 18.9 l/min
    Dodací termín 1 až 2 pracovní týdny
    624 € incl. VAT
    516 €

    Membrane pump Graco 205P-P01AP5-PPPTPT-FK with compressed air drive. Designed for pumping acid and alkaline liquids in the pH range of 2 to 14. Max. output 18,9 l/min, max....

    Code: D12091
    cerpadlo Graco 515 Create Flow
    Diaphragm pump Graco 515P-Polypropylen-Hytrel, max. 57 l/min
    Přesný dodací termín na poptání
    1 133 € incl. VAT
    936 €
    Detail

    Membrane pump Graco 515P-P01AP4PPTPTPPT with compressed air drive. Designed for pumping oils, water with oil, coolant cartridges, abrasive liquids in the pH range of 6 to 10....

    Code: D5B955
    Graco 205 cerpadlo na horlaviny Create Flow
    Diaphragm pump Graco 205AC-Acetal/Teflon, max. 18,9 l/min, ATEX
    Dodací termín 1 až 2 pracovní týdny
    619 € incl. VAT
    512 €

    Membrane čerpadlo Graco 205AC-P01AAC5-ACPTPT-FK s pohonem na stlačený vzduch včetně ATEX certifikátu. Určeno pro čerpání hořlavin, rozpouštědel, kyselých a zásaditých kapalin v...

    Code: D11021
    Graco husky 307Create Flow
    Diaphragm pump Graco 307P-Polypropylen-Teflon, max. 26 l/min
    Dodací termín 1 až 2 pracovní týdny
    606 € incl. VAT
    501 €

    Membrane pump Graco 307P-P01AP4PPPTPTPTPT with compressed air drive. Designed for pumping acid and alkaline liquids in the pH range of 2 to 14. Max. output 26 l/min, max....

    Code: D3B911
    cerpadlo Graco 1050P 649030 Create Flow
    Diaphragm pump Graco 1050P Polypropylene/Nuna-N, max. 189 l/min
    Dodací termín 1 až 2 pracovní týdny
    1 918 € incl. VAT
    1 585 €

    Membrane pump Graco 1050P-P01AP2PPBNBNP with compressed air drive. Designed for pumping abrasive liquids between pH 6 and 10. Max. output 189 l/min, max. discharge 7 bar....

    Code: 649030
    cerpadlo Graco 1050P 649030 Create Flow
    Diaphragm pump Graco 1050P-Polypropylen-Santopren, max. 189 l/min
    Dodací termín 1 až 2 pracovní týdny
    1 918 € incl. VAT
    1 585 €

    Membrane pump Graco 1050P-P01AP2PPSPSPSPPT with compressed air drive. Designed for pumping acids, alkalis, glues, paints, abrasive liquids in the pH range of 2 to 14. Max....

    Code: 649029
    Show all related products Previous product Next product

    Product detailed description

    Výkonová_křivka_Graco_515_Create Flow

    Hasky Graco 15 Create Flow

    Datový list Graco 515 Create Flow

    Material Santoprene

    Thermoplastic vulcanizates (TPVs) are part of the thermoplastic elastomer (TPE) family of polymers, but their elastomeric properties are closest to EPDM thermoset rubber, combining the properties of vulcanized rubber with the processing properties of thermoplastics. TPV is a dynamically vulcanized alloy consisting mainly of fully cured EPDM rubber particles encapsulated in a polypropylene (PP) matrix. The S portfolio includes nearly 100 grades that are used globally in the automotive, home appliance, electrical, construction and healthcare markets. The name Santoprene was trademarked in 1977[1] by Monsanto and the trademark is now owned by Celanese. Similar material is available from Elastron[2] and others[3]

    Graco D5B911 Create Flow Polypropylen Teflon Create Flow

    Additional parameters

    Category: GRACO diaphragm pumps
    Warranty: 1 rok vyjma dílů podléhajícímu vysokému stupni opotřebení
    Weight: 2.4 kg
    Materiál tělesa čerpadla: Polypropylen
    Materiál sedel čerpadla: Polypropylen
    Materiál kuliček čerpadla: Santopren
    Materiál membrán čerpadla: Santopren
    Max. výkon: 57 l/min
    Max. výtlak: 7 bar
    Samonasávací sucho: -4.5 m (hodnota při vodě)
    Max. teplota média:: +66°C
    Max. velikost pevných částic: 2.5 mm
    Připojení sání/výtlak: 1/2" BSP
    Pohon: Stlačený vzduch max. 7 bar
    Připojení vzduch: Vnitřní závit 1/4" BSP
    ATEX: NE
