SEAFLO 21 Performance 4.3 l/min, max. 2,4 bar, self-priming -1 m. 12 V power supply DC Nejprodávanější čerpadlo
Code: SFDP1-012-035-21Related products
Product detailed description
Series 21 pumps are designed for a wide range of applications including liquid pumping, spraying, circulation, filtration and dosing. Diaphragm pumps are self-priming (-1 m) and can be operated without pumping fluid (dry running) without damaging the pump. The integrated pressure switch function ensures safe operation of the pump. An integrated pressure sensor ensures that the pump is switched on when the pressure drops in the discharge pipe. When the tap on the discharge pipe is closed, the pump is stopped by a pressure rise.
Application: the pump is suitable for intermittent watering of greenhouses, flower beds,...
Maximum pump output is 4.3 l/min, maximum discharge pressure 2.4 bar. (The values are tabulated. Please refer to the attached power curve for exact performance).

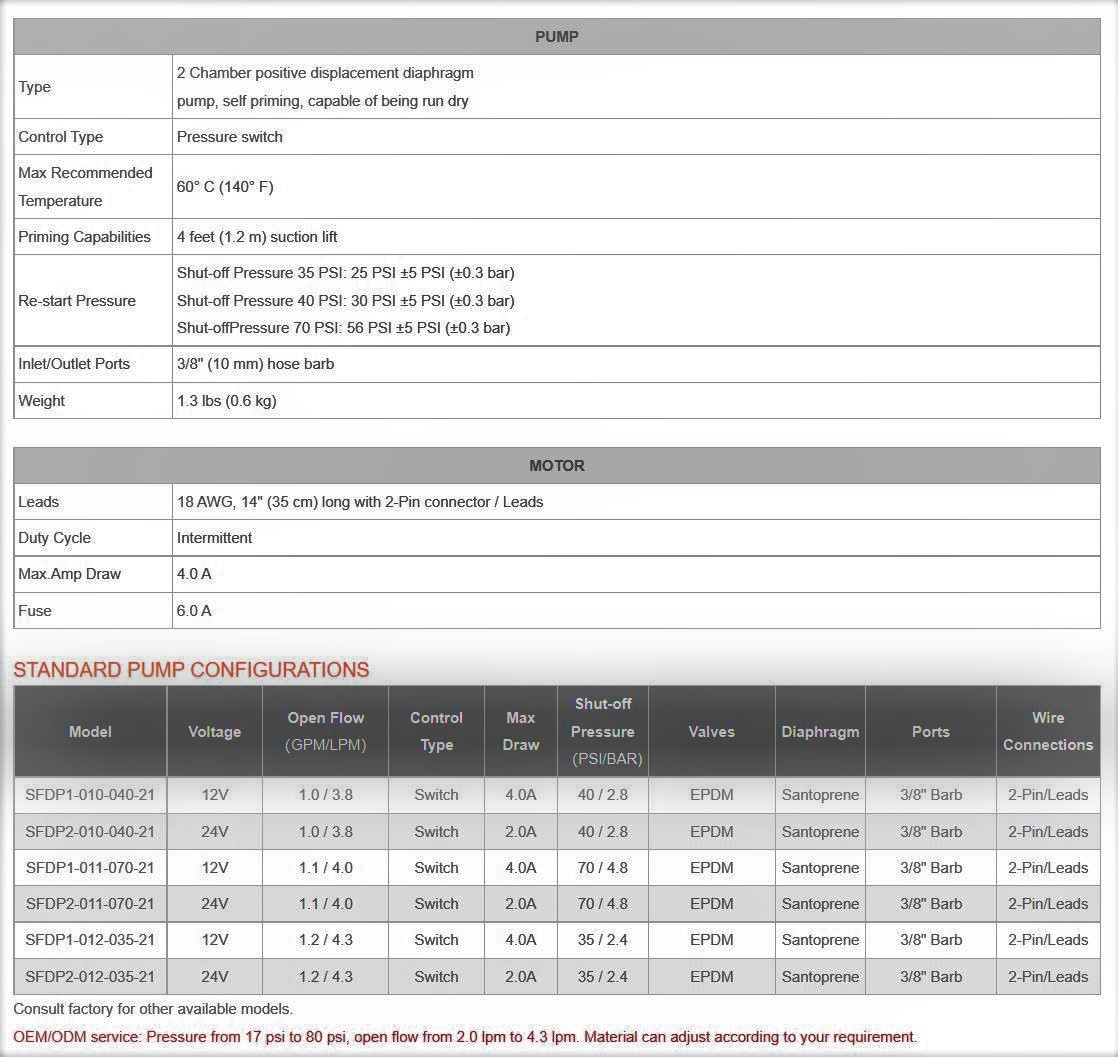

Additional parameters
| Category: | 12 V DC pumps |
|---|---|
| Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
| Weight: | 0.6 kg |

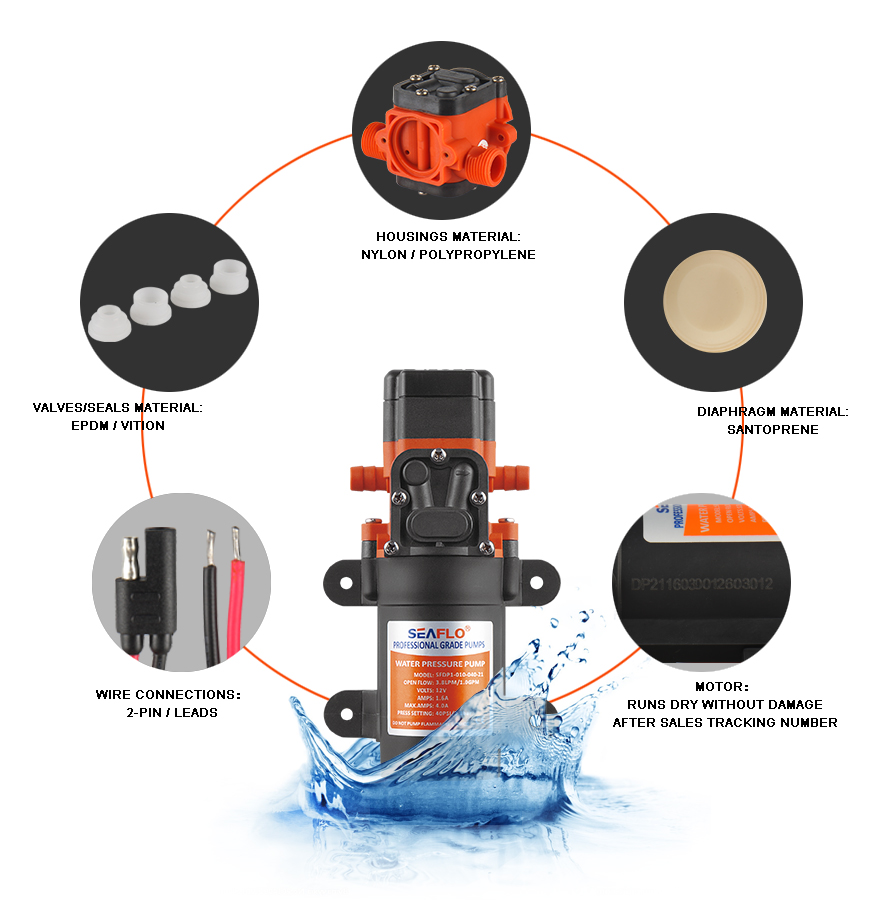

| Materiál tělesa čerpadla: | Nylon/Polypropylen |
| Ventliy: | EPDM |
| Membrány: | Santopren |
| ? Max. výkon: | 4,3 l/min |
| Výtlak: | 2,4 bar (24 m) |
| Sání: | -1 m |
| Připojení sání/výtlak: | 3/8" (10mm)/hadicový trn |
| Maximální terplota: | +60°C |
| Funkce: | integrovaný tlakový senzor |
| Rozměr: | 98 x 72 x 187 mm |
| Elektromotor : | 12V DC, 4.0 A |
| ATEX: | Ne |
| El. připojení: | kabel bez koncovky |
| Krytí el. motoru: | IP 42 |
