Diaphragm pump Create Flow CF22 Output 5 l/min, max. 7 bar, self-priming -1.8 m. Power supply 12 V DC SEAFLO 22 12V DC
Code: CFL-22-3203-V-12Related products
Code: SFDPA2-015-040-23B
Product detailed description

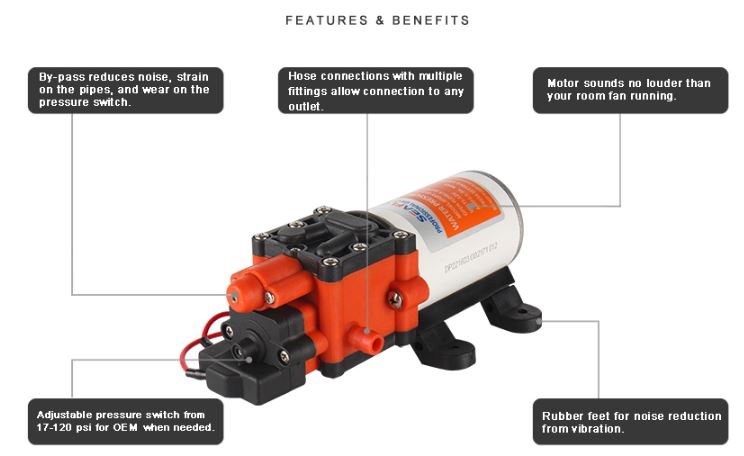

Series 22 pumps are designed for a wide range of applications including liquid pumping, spraying, circulation, filtration and dosing. The diaphragm pumps are self-priming (-1.8 m) and can be operated without pumping fluid (dry running) without damaging the pump. The function of the integrated pressure switch and integrated by-pass ensures safe operation of the pump. An integrated pressure sensor ensures that the pump is switched on when the pressure drops in the discharge pipe. When the tap on the discharge pipe is closed, the pump is stopped by a pressure rise.

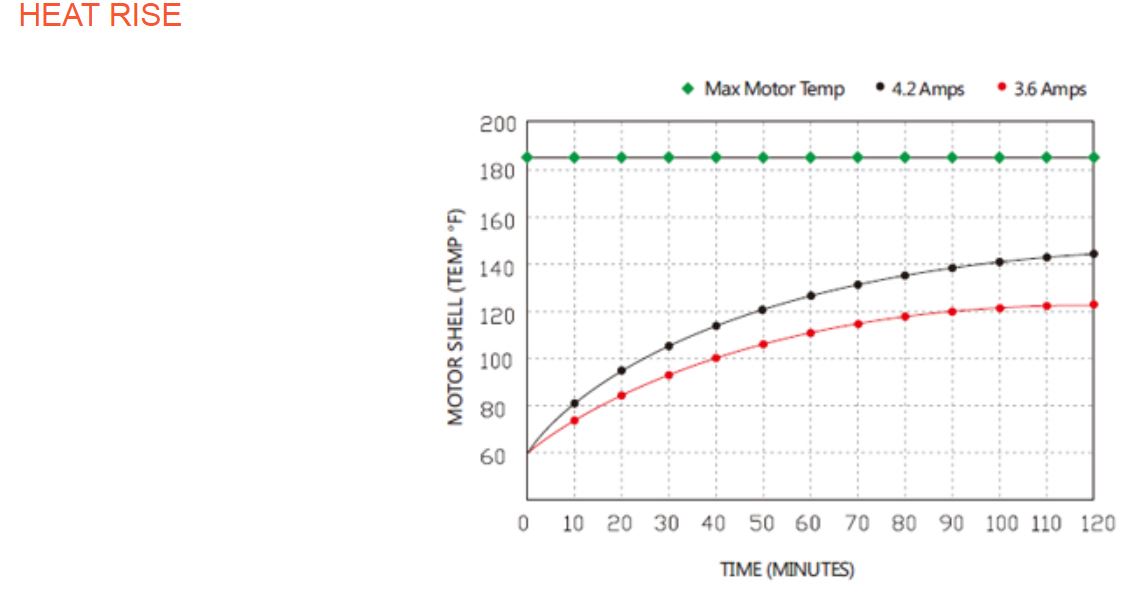

The pump electric motor is equipped with a Bimetal switch, which serves against overheating of the pump electric motor.
The rubber feet of the pump act as compensators and do not transmit vibrations and shocks to the pump, as well as vibrations from the pump.
Additional parameters
| Category: | 12 V DC pumps |
|---|---|
| Warranty: | 2 roky vyjma dílů podléhající vysokému stupni opotřebení |
| Weight: | 1.26 kg |

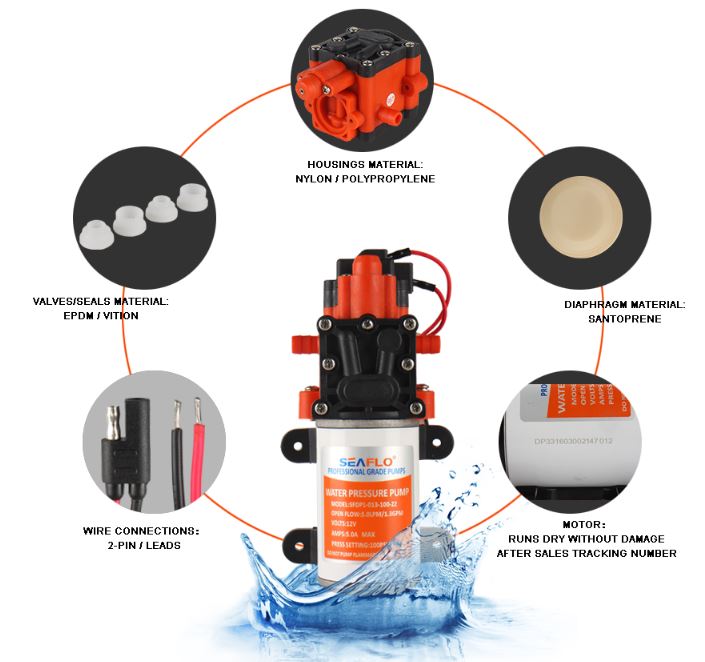

| Materiál tělesa čerpadla: | Polypropylen |
| Ventliy: | Viton |
| Membrány: | Santopren |

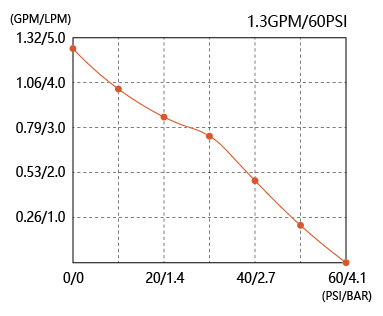

| ? Max. výkon: | 5 l/min |
| ? Výtlak: | 7 bar (70 m) |
| Sání: | -1,8 m |
| Připojení sání/výtlak: | 3/8" (10mm)/hadicový trn |
| Maximální terplota: | +60°C |
| Funkce: | integrovaný tlakový senzor, By-pass ventil |

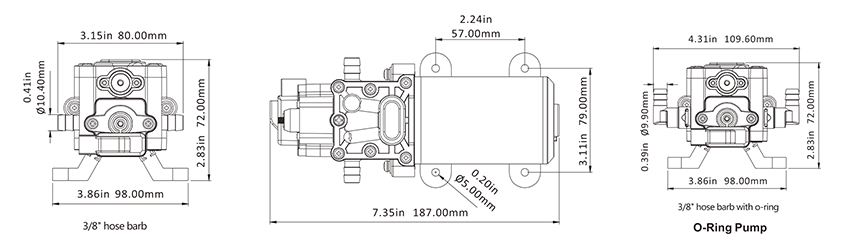

| Rozměr: | 98 x 72 x 187 mm |
| Elektromotor : | 12 V DC (9-14.4V) 4,5 A |
| ATEX: | Ne |
| El. připojení: | kabel bez koncovky |
| Barva čerpadla: | černá |
| Krytí el. motoru: | IP 42 |
